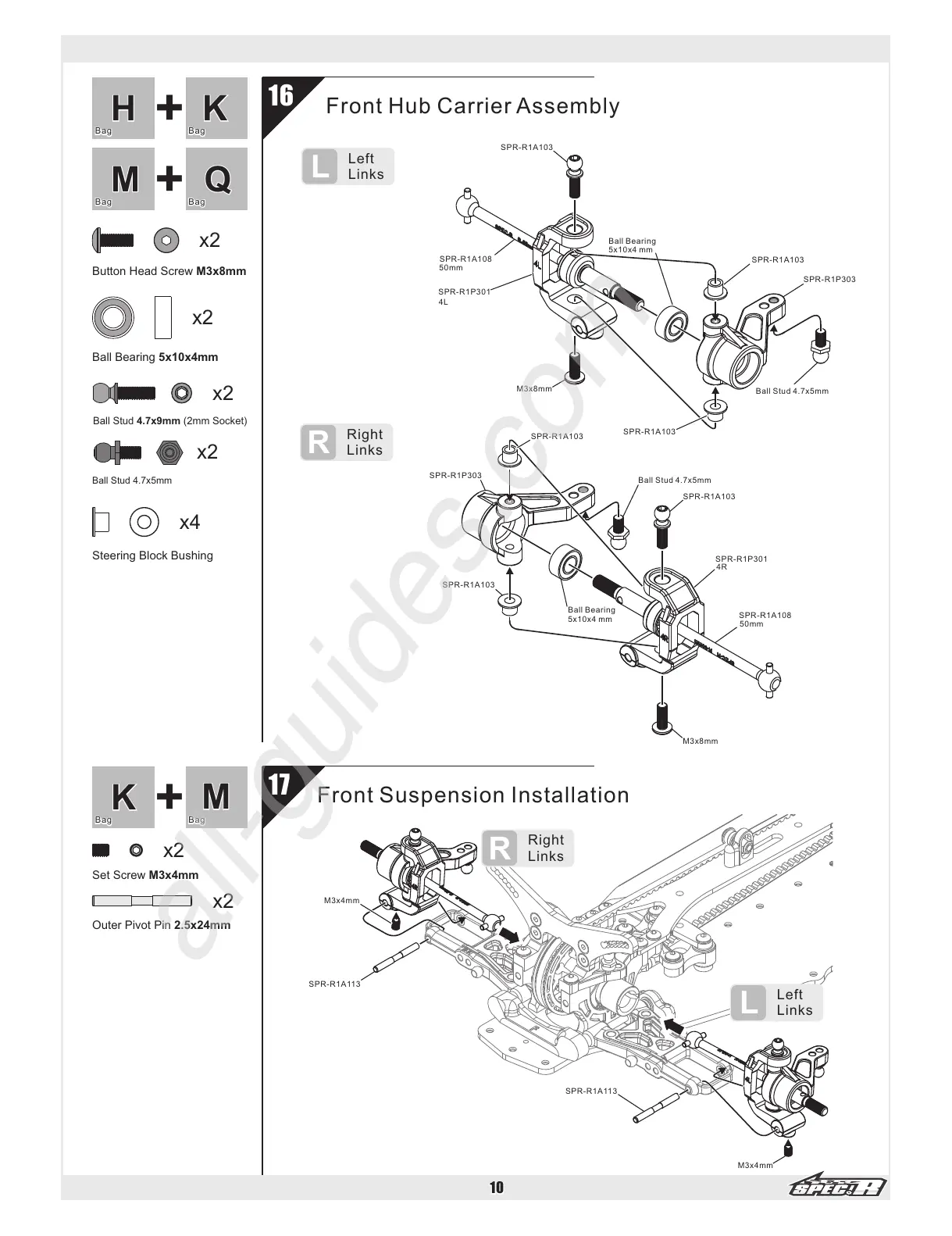

Spec-R S1 - 16 Front Hub Carrier Assembly; 17 Front Suspension Installation

16
FrontHubCarrier Assembly
L
Left
Links
R
Right
Links
17
FrontSuspensionInstallation
Bag
H
Bag
K
+
Bag
M
Bag
Q
+
ButtonHeadScrew M3x8mm
x2
x2
BallBearing 5x10x4mm
x4
SteeringBlockBushing
x2
SetScrew M3x4mm
OuterPivotPin 2.5x24mm
x2
Bag
K
Bag
M
+
x2
BallStud (2mmSocket)4.7x9mm
10
SPR-R1A108
50mm
SPR-R1A103
SPR-R1P301
4L
M3x8mm
SPR-R1A103
BallBearing
5x10x4mm
SPR-R1P303
SPR-R1A103
BallStud4.7x5mm
SPR-R1A108
50mm
SPR-R1A103
SPR-R1P301
4R
M3x8mm
SPR-R1P303
SPR-R1A103
SPR-R1A103
BallBearing
5x10x4mm
BallStud4.7x5mm
M3x4mm
M3x4mm
SPR-R1A113
SPR-R1A113
L
Left
Links
R
Right
Links
x2
BallStud4.7x5mm
