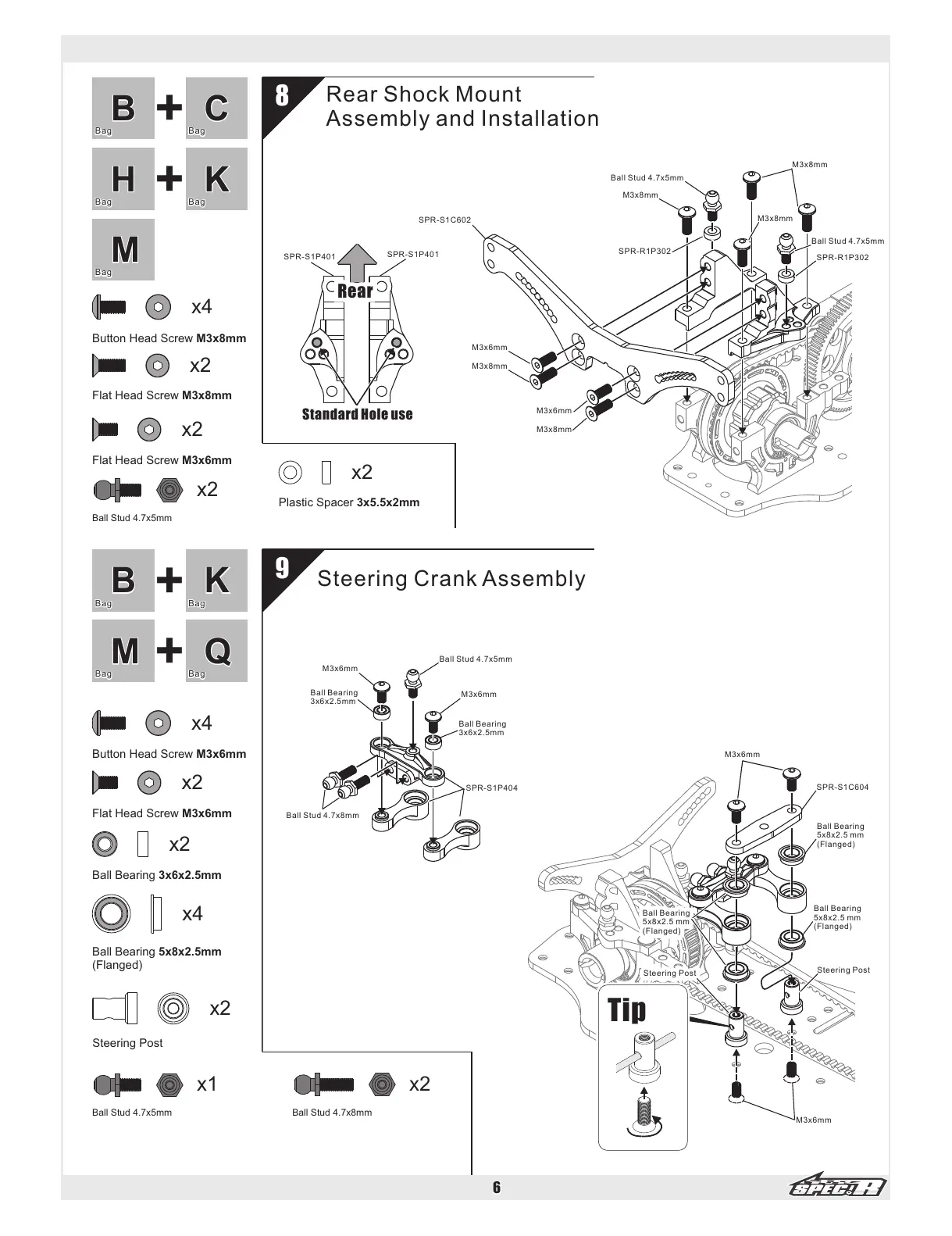

Spec-R S1 - 8 Rear Shock Mount Assembly and Installation; 9 Steering Crank Assembly

8
RearShockMount
AssemblyandInstallation
9
SteeringCrank Assembly
Bag
B
Bag
C
+
Bag
H
Bag
K
+
x2
FlatHeadScrew M3x6mm
x2
PlasticSpacer 3x5.5x2mm
x4
ButtonHeadScrew M3x8mm
x4
ButtonHeadScrew M3x6mm
x2
BallBearing 3x6x2.5mm
x2
FlatHeadScrew M3x6mm
Bag
B
Bag
K
+
Bag
M
Bag
Q
+
x4
BallBearing
(Flanged)
5x8x2.5mm
x2
SteeringPost
6
SPR-S1P401
SPR-S1P401
Rear
StandardHoleuse
SPR-S1C602
M3x8mm
M3x6mm
M3x8mm
M3x6mm
M3x8mm
M3x8mm
M3x8mm
SPR-R1P302
SPR-R1P302
BallStud4.7x5mm
BallStud4.7x5mm
BallBearing
5x8x2.5mm
(Flanged)
M3x6mm
SPR-S1C604
BallBearing
5x8x2.5mm
(Flanged)
BallBearing
5x8x2.5mm
(Flanged)
Tip
SteeringPost
SteeringPost
x2
BallStud4.7x5mm
x1
BallStud4.7x5mm
x2
FlatHeadScrew M3x8mm
x2
BallStud4.7x8mm
BallBearing
3x6x2.5mm
BallBearing
3x6x2.5mm
M3x6mm
M3x6mm
SPR-S1P404
BallStud4.7x5mm
BallStud4.7x8mm
M3x6mm
Bag
M
