Spec-R S1 - 31 Steering Servo Assembly; 32 Steering Servo Installation

31

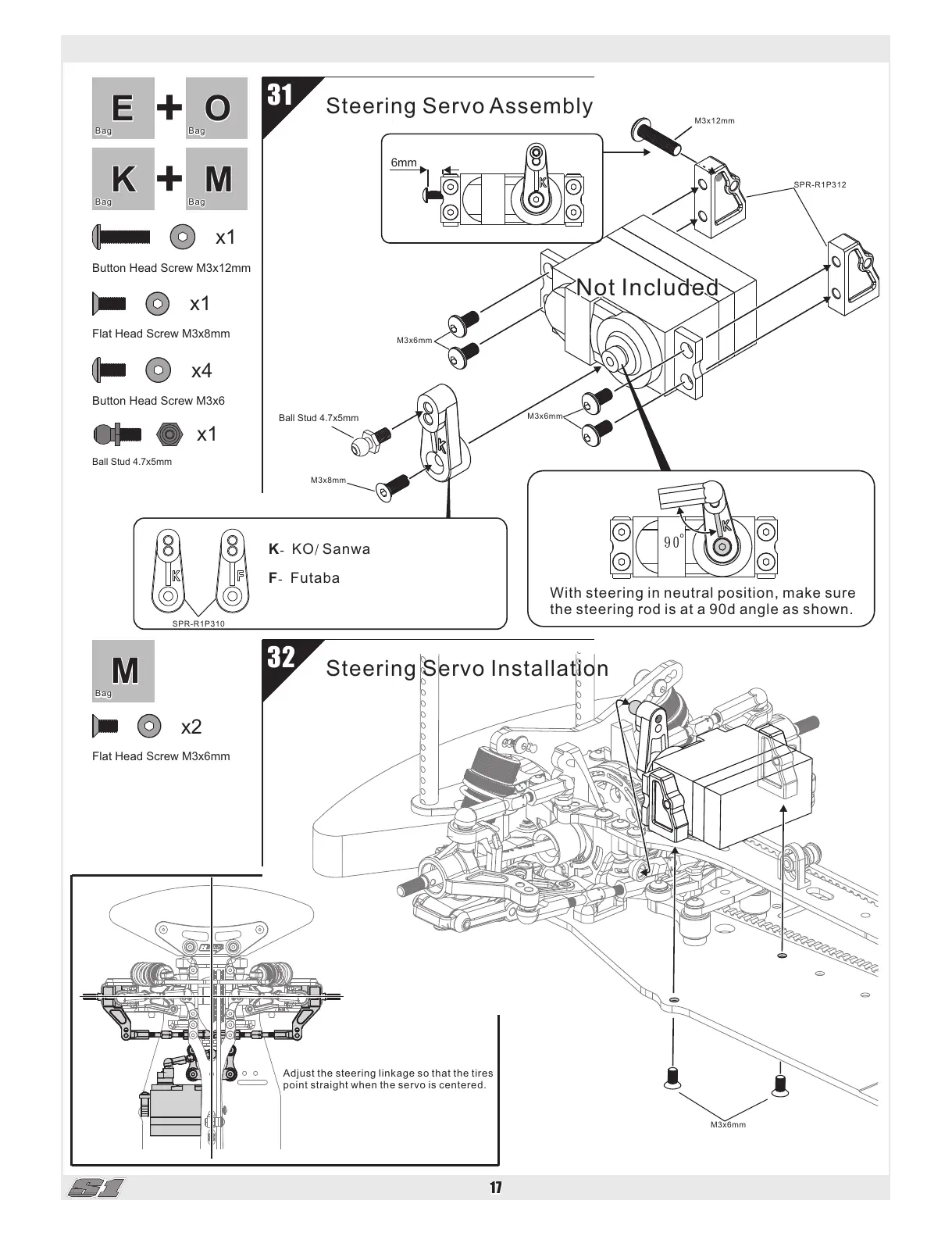

SteeringServo Assembly
Bag
E
Bag
O
+
Bag
K
Bag
M
+
x1
FlatHeadScrewM3x8mm
x4
ButtonHeadScrewM3x6
x1
BallStud4.7x5mm
x2
FlatHeadScrewM3x6mm
32
Bag
M
M3x6mm
17
SPR-R1P312
M3x6mm
M3x6mm
M3x8mm
6mm
NotIncluded
9 0
o
Withsteeringinneutralposition,makesure
thesteeringrodisata90dangleasshown.
K- /KO Sanwa
F- Futaba
SPR-R1P310
x1
ButtonHeadScrewM3x12mm
M3x12mm
SteeringServoInstallation
Adjustthesteeringlinkagesothatthetires
pointstraightwhentheservoiscentered.
BallStud4.7x5mm
