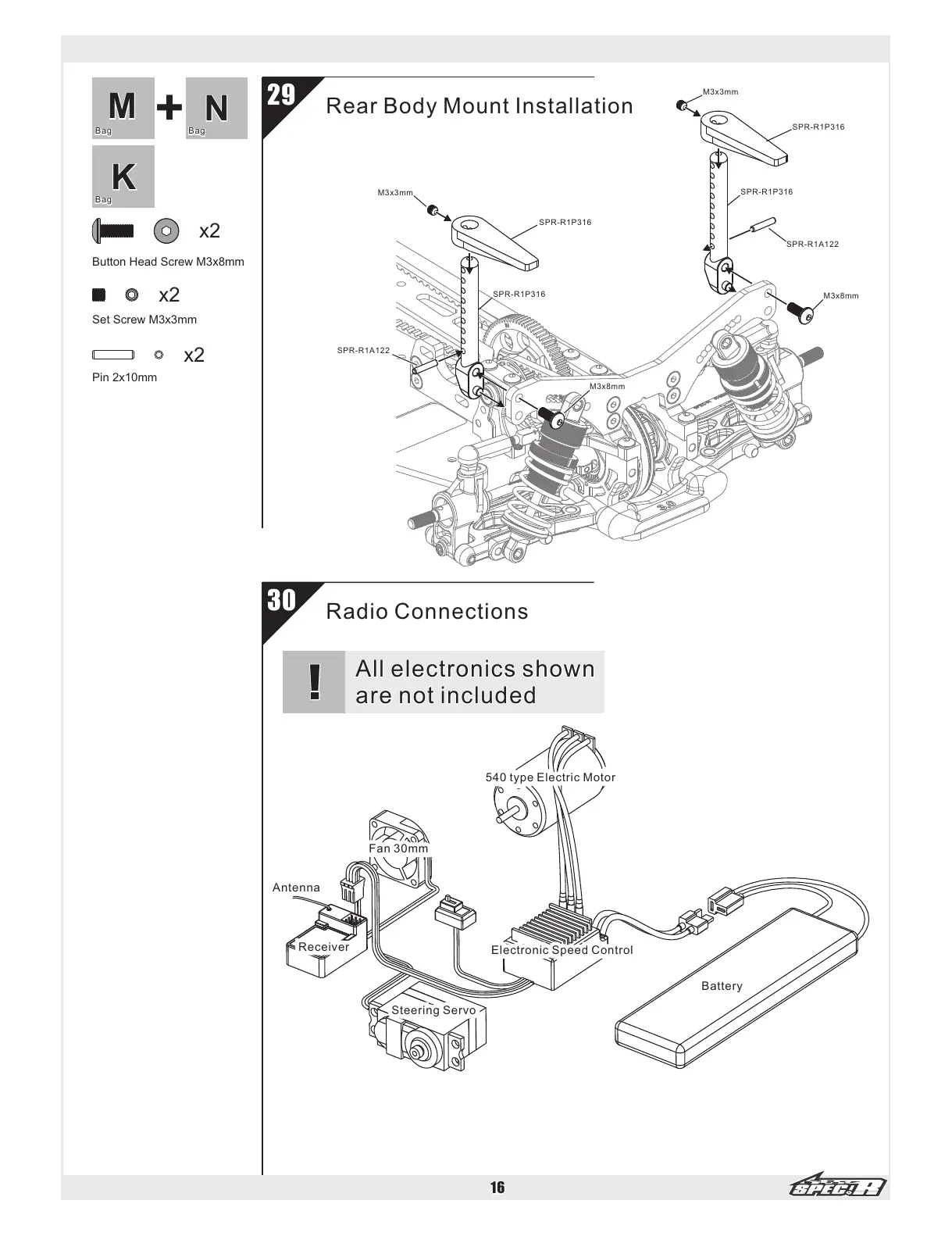

Spec-R S1 - 30 Radio Connections

29
RearBodyMountInstallation
Bag
M
Bag
N
+
ButtonHeadScrewM3x8mm
x2
30
RadioConnections
Antenna
Receiver
SteeringServo
540typeElectricMotor
Battery
ElectronicSpeedControl
Fan30mm
!
Allelectronicsshown
arenotincluded
x2
SetScrewM3x3mm
x2
Pin2x10mm
SPR-R1P316
SPR-R1P316
M3x3mm
M3x3mm
SPR-R1P316
SPR-R1P316
SPR-R1A122
SPR-R1A122
M3x8mm
M3x8mm
Bag
K
16
