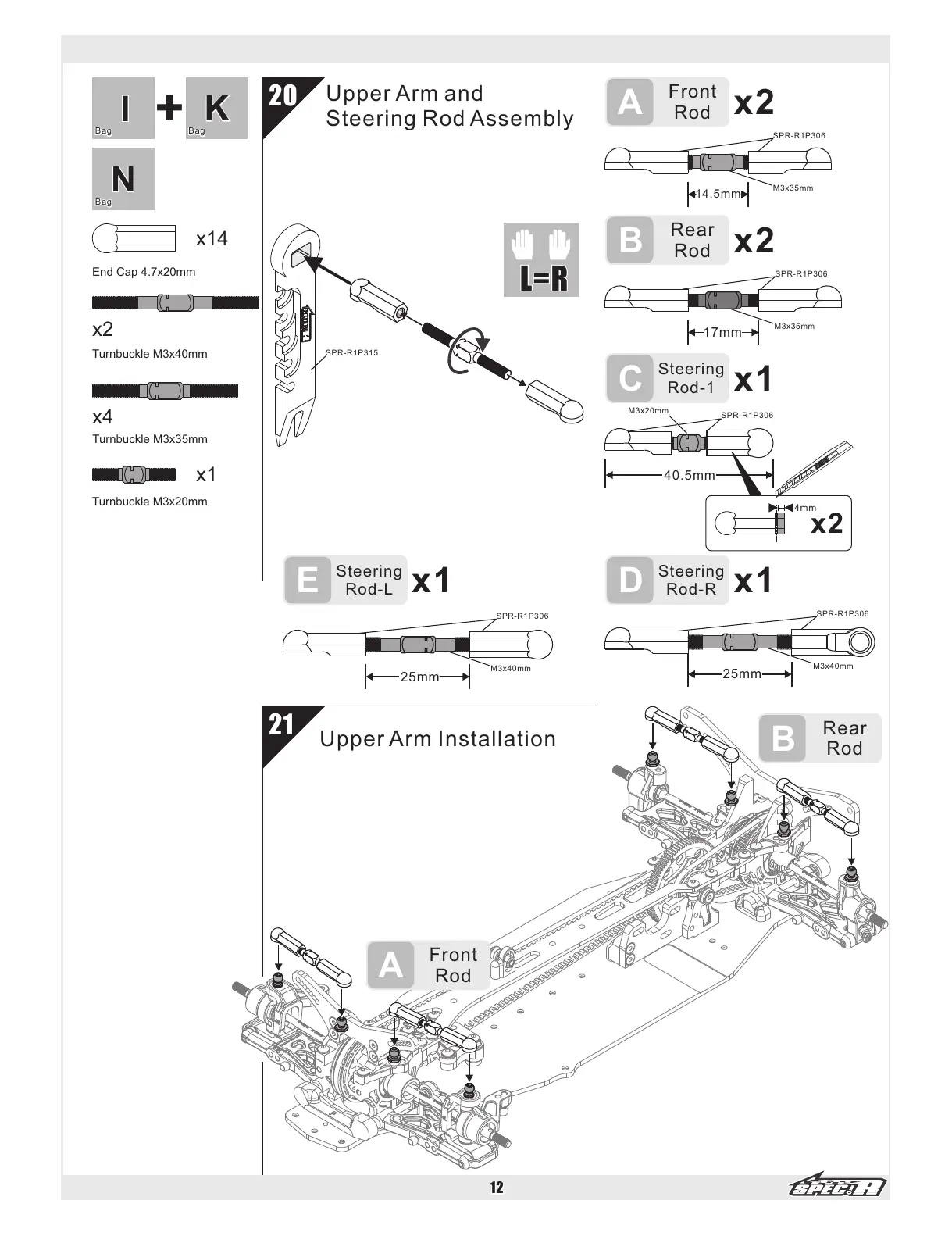

Spec-R S1 - 20 Upper Arm and Steering Rod Assembly; 21 Upper Arm Installation

20
21
Upper Armand
SteeringRod Assembly
Bag
I
Bag
K
+
x14
EndCap4.7x20mm
TurnbuckleM3x35mm
x4
TurnbuckleM3x40mm
x2
TurnbuckleM3x20mm
x1
L=R
Upper ArmInstallation
A
Front
Rod
B
Rear
Rod
17mm
x2
C
Steering
Rod-1
x2
x1
4mm
x2
25mm
D
Steering
Rod-R
x1
25mm
E
Steering
Rod-L
x1
SPR-R1P315
SPR-R1P306
M3x35mm
SPR-R1P306
SPR-R1P306
SPR-R1P306
M3x35mm
M3x40mm
M3x40mm
40.5mm
SPR-R1P306
M3x20mm
12
14.5mm
A
Front
Rod
B
Rear
Rod
Bag
N
