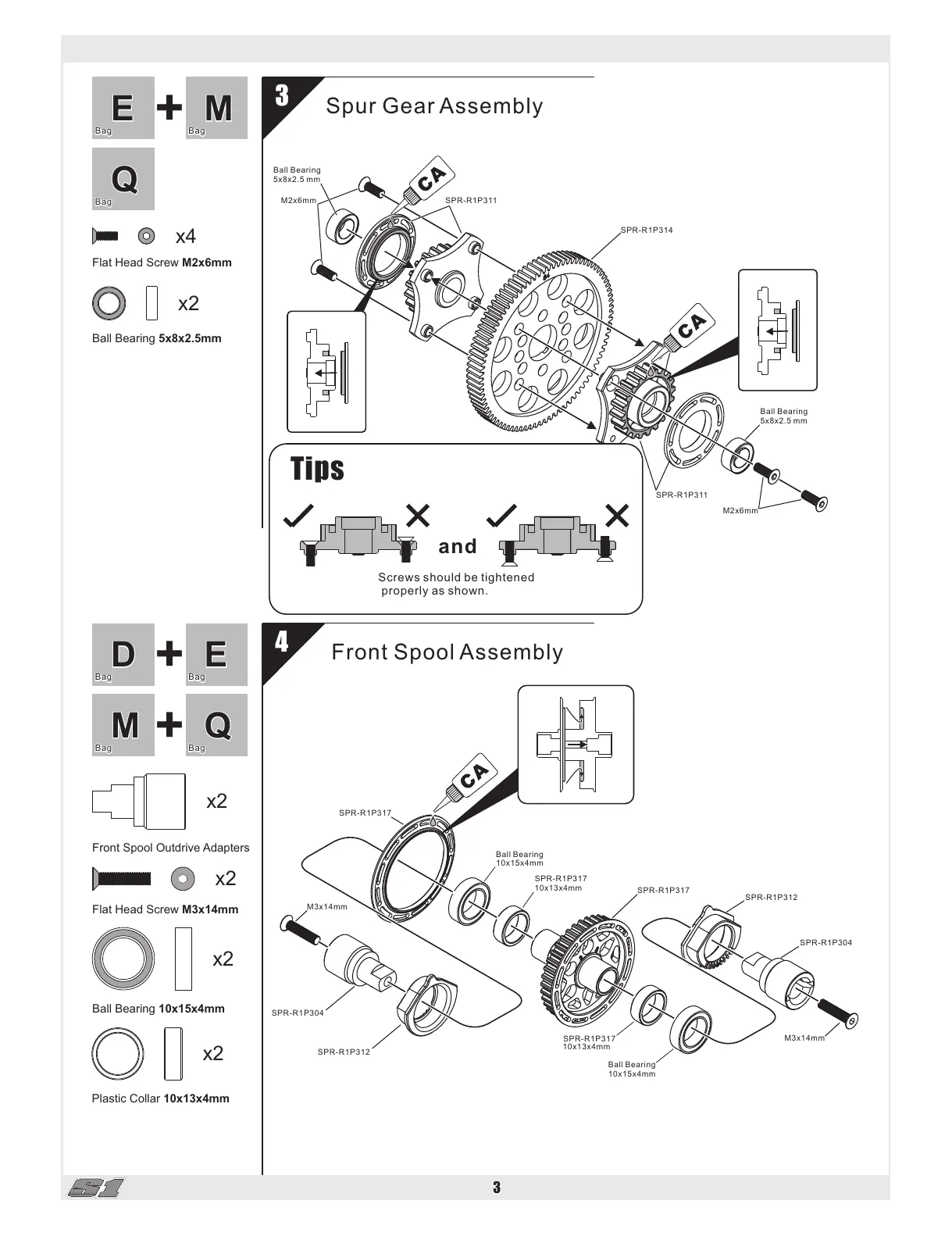

Spec-R S1 - 3 Spur Gear Assembly; 4 Front Spool Assembly

3
SpurGear Assembly
4
Bag
FrontSpool Assembly
Bag
E
Bag
M
+
Bag
Q
x4
FlatHeadScrew M2x6mm
D
Bag
E
+
Bag
Q
+
Bag
M
x2
FrontSpoolOutdrive Adapters
x2
FlatHeadScrew M3x14mm
x2
BallBearing 10x15x4mm
x2
PlasticCollar 10x13x4mm
x2
BallBearing 5x8x2.5mm
Tips
Screwsshouldbetightened
properlyasshown.
and
10x13x4mm
BallBearing
10x15x4mm
BallBearing
10x15x4mm
10x13x4mm
M2x6mm
BallBearing
5x8x2.5mm
SPR-R1P311
SPR-R1P314
SPR-R1P311
BallBearing
5x8x2.5mm
M2x6mm
SPR-R1P317
SPR-R1P317
SPR-R1P317
SPR-R1P317
SPR-R1P312
SPR-R1P312
SPR-R1P304
SPR-R1P304
M3x14mm
M3x14mm
3
