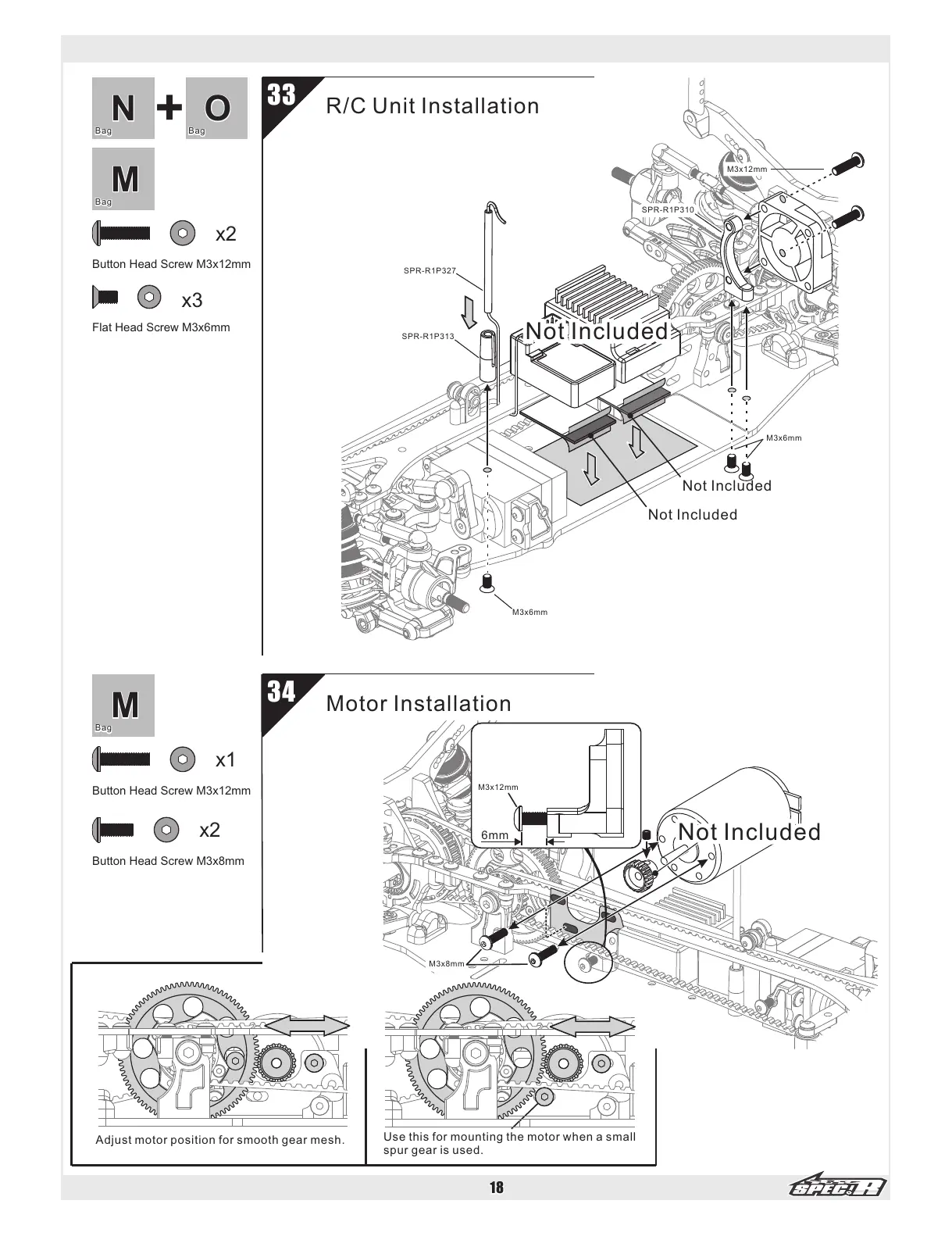

Spec-R S1 - 33 R;C Unit Installation; 34 Motor Installation

33
R/CUnitInstallation
Bag
N
Bag
O
+
x3
FlatHeadScrewM3x6mm
34
MotorInstallation
ButtonHeadScrewM3x8mm
x2
Bag
M
Adjustmotorpositionforsmoothgearmesh.
x2
ButtonHeadScrewM3x12mm
Usethisformountingthemotorwhenasmall
spurgearisused.
Bag
M
18
x1
ButtonHeadScrewM3x12mm
M3x12mm
SPR-R1P313
SPR-R1P327
M3x6mm
NotIncluded
SPR-R1P310
NotIncluded
NotIncluded
M3x6mm
NotIncluded
6mm
M3x12mm
M3x8mm
