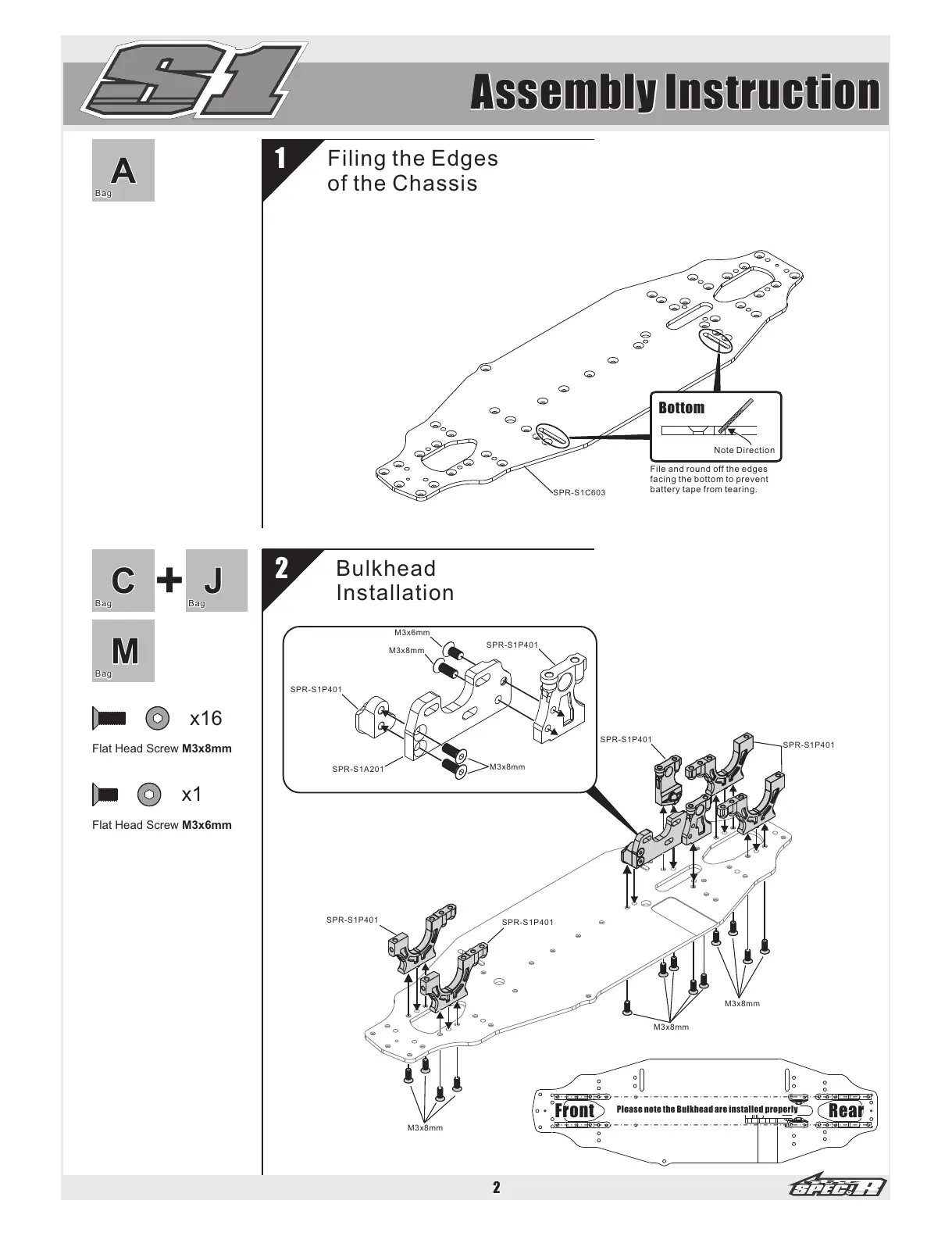

Spec-R S1 - SI 1;10 Electric Touring Car Assembly; 1 Filing the Edges of the Chassis; 2 Bulkhead Installation

1
FilingtheEdges
oftheChassis
2
Bulkhead
Installation
Bag
C
Bag
J
+
Bag
A
x16
FlatHeadScrew M3x8mm
SPR-S1C603
SPR-S1P401
AssemblyInstruction
2
Bottom
NoteDirection
Fileandroundofftheedges
facingthebottomtoprevent
batterytapefromtearing.
Bag
M
SPR-S1P401
SPR-S1P401
SPR-S1A201
x1
FlatHeadScrew M3x6mm
SPR-S1P401
M3x6mm
M3x8mm
M3x8mm
SPR-S1P401
SPR-S1P401
M3x8mm
M3x8mm
M3x8mm
Front
Rear
PleasenotetheBulkheadareinstalledproperly
