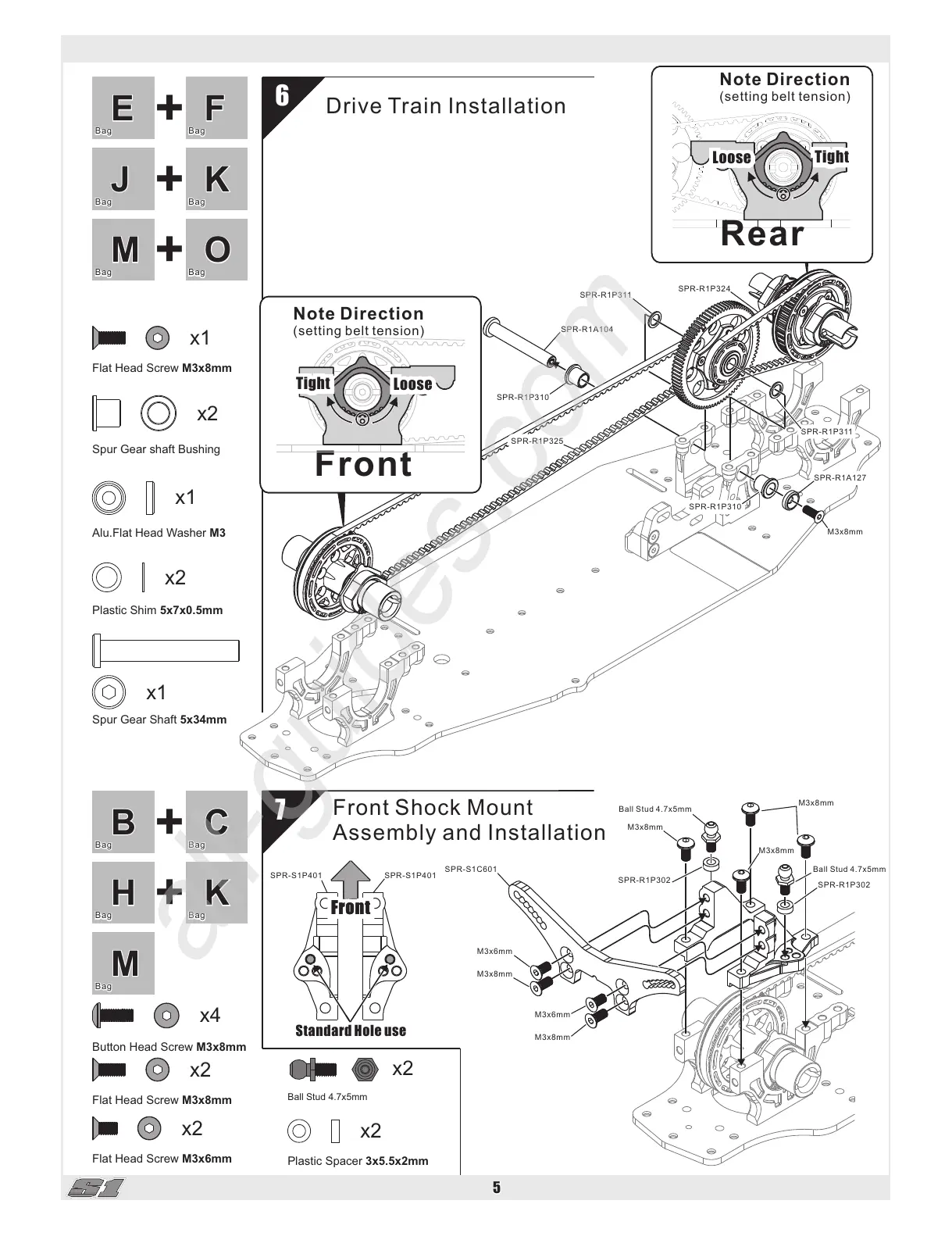

Spec-R S1 - 6 Drive Train Installation; 7 Front Shock Mount Assembly and Installation

6
Drive TrainInstallation
7
FrontShockMount
AssemblyandInstallation
Bag
E
Bag
F
+
Bag
J
Bag
K
+
x1
FlatHeadScrew M3x8mm
x1
SpurGearShaft 5x34mm
x2
SpurGearshaftBushing
x1
Alu.FlatHeadWasher M3
x2
PlasticShim 5x7x0.5mm
Bag
B
Bag
C
+
Bag
H
Bag
K
+
x2
FlatHeadScrew M3x6mm
x2
PlasticSpacer 3x5.5x2mm
SPR-S1P401
SPR-S1P401
SPR-S1C601
M3x6mm
SPR-R1P302
M3x8mm
5
Bag
M
Bag
O
+
NoteDirection
(settingbelttension)
Tight
Loose
Rear
x4
ButtonHeadScrew M3x8mm
M3x8mm
M3x6mm
M3x8mm
M3x8mm
M3x8mm
SPR-R1P302
Front
StandardHoleuse
Front
SPR-R1A104
SPR-R1P311
SPR-R1P324
M3x8mm
SPR-R1P325
SPR-R1P310
SPR-R1P311
SPR-R1A127
SPR-R1P310
NoteDirection
(settingbelttension)
Front
Tight
Loose
BallStud4.7x5mm
BallStud4.7x5mm
Bag
M
x2
BallStud4.7x5mm
x2
FlatHeadScrew M3x8mm
