Speck Normblock Multi 65/250 - 3 Description; Function

Description
04/2019 EN 15
3 Description
(1)
(2)
(3)
(4)
(5)
B
VW61.21.021
(3)
(1)
(2)
A
(5)

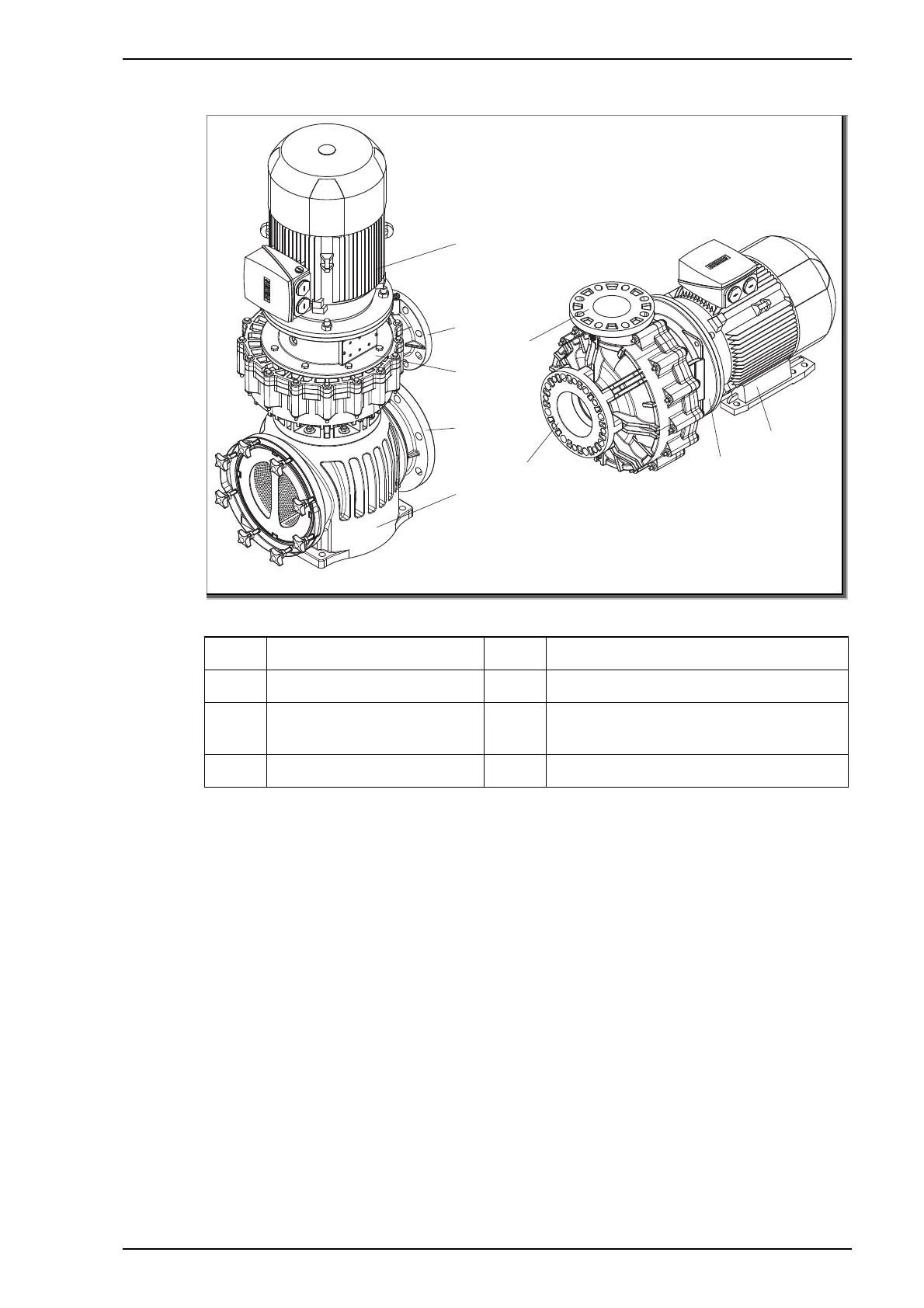

Fig. 1
A Normblock Multi B BADU Block Multi
(1) Suction discharge (2) Pressure discharge
(3) Motor (4)
Filter housing with strainer
basket
(5) Drive lantern
3.1 Function
The pump draws the swimming pool water in via a shut-off valve
in the suction line and suction discharge (1). A strainer basket is
integrated in the filter housing (4) of the BADU Block Multi which
filters out rough impurities. The water is pumped to the filter unit
via the discharge outlet (2) and a shut-off valve in the pressure
side. The drive shaft in the motor (3) is connected to the pump
shaft. The motor (3) is connected to the pump with the drive
lantern (5).
