3-2. Connectors
D4VN
D8VN
D16VN

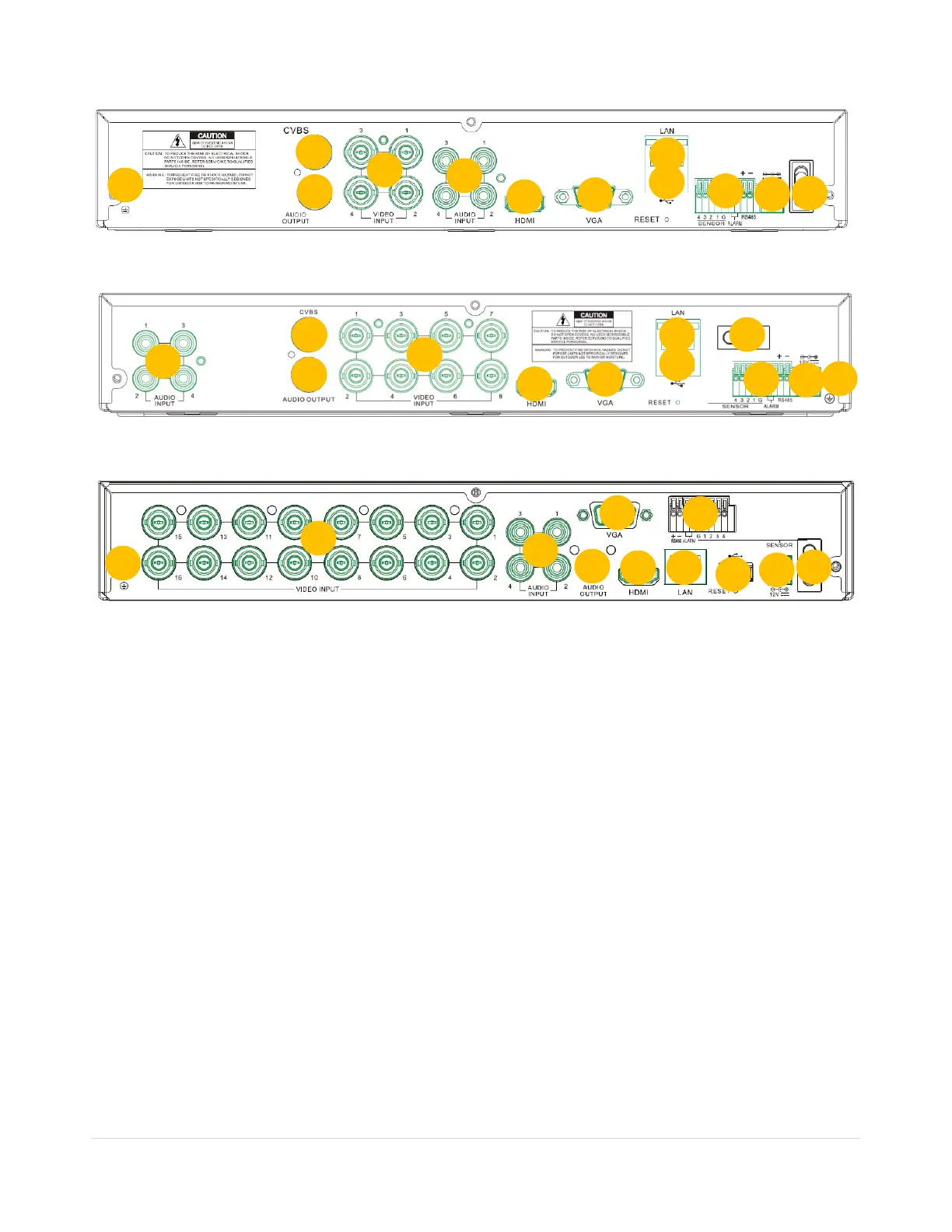

Figure 3.2.1. Rear Panel Connections
① VIDEO IN: Video input port.
② VIDEO OUT: CVBS – Composite Video Output / SPOT (D16VN does not have this port.)
③ VGA: VGA (Video Graphics Array) output port. Connects to the PC VGA monitor.
④ HDMI VIDEO OUT: HDMI Video Output, Connections to the HDMI monitor
(D4VN & D8VN: Max.1920x1080, D16VN: Max.3840x2160).
⑤ AUDIO IN: Four connectors for audio input.
⑥ AUDIO OUT: One connector for audio output.
⑦ ETHERNET: Network terminal
⑧ USB: USB terminal
⑨ SENSOR IN, ALARM OUT, RS-485: External sensor terminal, External alarm out terminal & RS-485
for PTZ Camera control
⑩ POWER: DC12V input
⑪ Ground: Use for ground port
⑫ Power Switch: Power On / Off
