FUNCTION LIST
Use the DUAL THROTTLE Mix on vehicles that require two throttle
channels.
1. Select THROTTLE and click the scroll wheel.
2. Select Dual Throttle and click the scroll wheel.
3. To activate, select Inhibit and scroll to select THR > AUX1.
To syncronize the servos use the Subtrim, Travel and Reverse
menus in Servo Setup.
Use the Brake Mix on large scale vehicles that require separate
front and rear brake servos. The mix value creates brake bias
between the front and rear brakes. Assigning the Brake Mix to
a switch enables the driver to adjust the mix value from any
screen.
1. Select THROTTLE and click the scroll wheel.
2. Select Dual Brake and click the scroll wheel.
3. To activate, select Inhibit and scroll to select BRK > AUX.

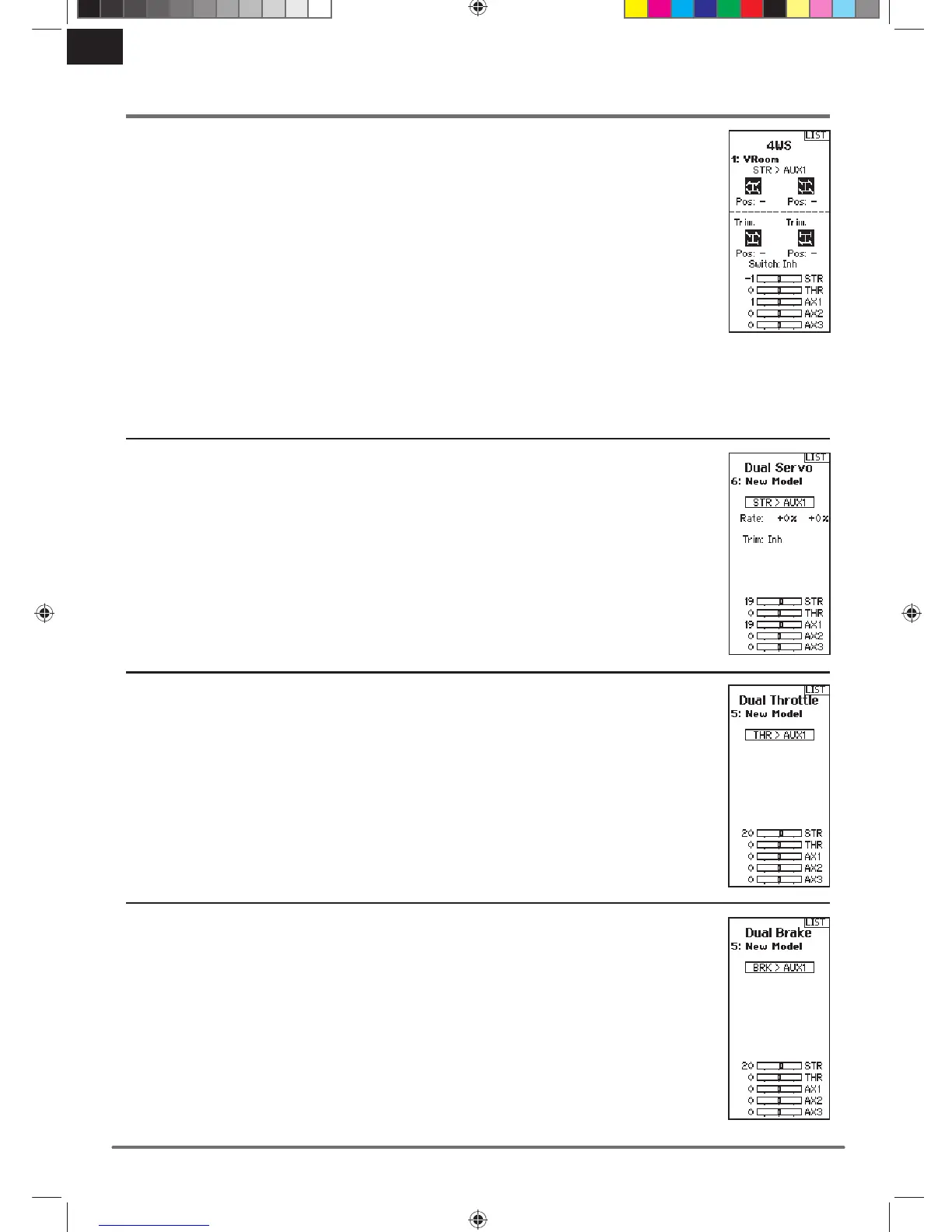

Dual Throttle
Dual Brake
4WS options in the DX5 Pro offer four different steering
confi gurations using one switch; Crab, 4WS, front only, and rear
only steering.
1. Select 4WS and click the scroll wheel.
2. To activate, select Inhibit and scroll to select the second
steering channel. Select STR > AUX and scroll to choose a
channel to use for the second steering (slave) channel.
3. Assign a switch or set the switch assignment to ON.
4. When a switch is assigned to select the 4WS mode, the
four steering options each need to be assigned to a switch
position and assigned rates to be enabled.
• Select Pos: and use the scroll wheel to select the switch
position (0-3). the current switch selection is indicated
with a box around the 4WS mode.
• For Crab and 4WS steering, a set of
travel settings and a trim option for the
second servo appear when the Pos:
setting is assigned to a switch position.
Front only and Rear only steering options
do not have travel or trim options.
•
Use the scroll wheel to select the Trim
option. Select Act to carry over trim
settings to the mixed steering servo,
leave Inh if the trim should only adjust
the primary steering channel.
4WS (4-Wheel Steering)
1. Select STEERING and click the scroll wheel.
2. Select 2 SERVO and click the scroll wheel.
3. To activate, select Inhibit and scroll to select STR > AUX.
2 Servo (Dual Steering)
