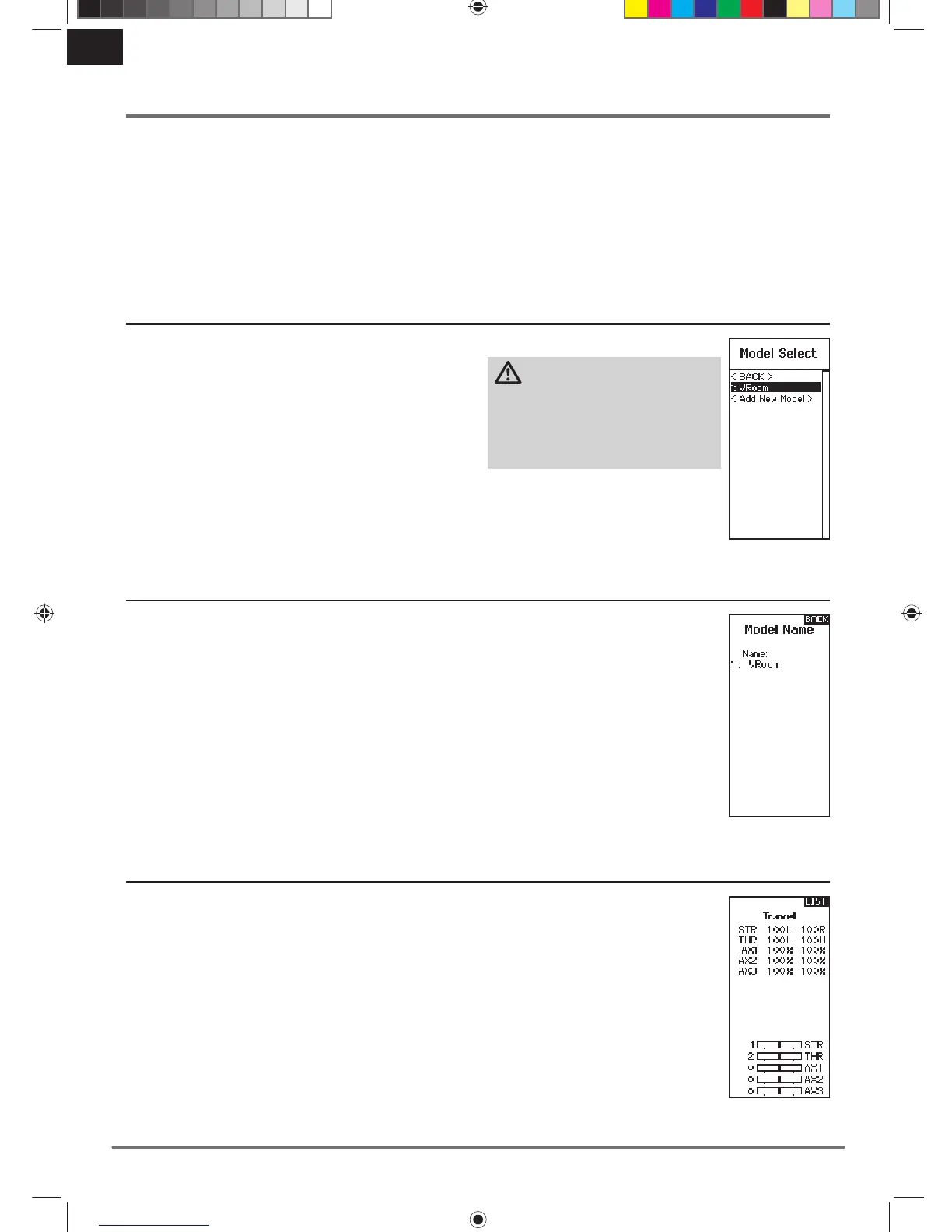

8
SPEKTRUM DX5 PRO • TRANSMITTER INSTRUCTION MANUAL
EN
Model Name
Model Name enables you to assign a custom name to the
current model memory. Model names can include up to 15
characters, including spaces.
To add letters to a Model Name:
1. Scroll to the desired letter position and click the scroll
wheel once. A fl ashing box appears.
2. Scroll Up or Down until the desired character appears. Click
the scroll wheel once to save the character.
3. Scroll to the next desired letter position. Repeat Steps 1
and 2 until the Model Name is complete.
4. Select Back Button to return to the MENU.
To erase a character(s):
1. Press the Clear button while the
character is selected.
2. Press the Clear button a second time
to erase all characters to the right of
the cursor.
Servo Setup
Travel
The Servo Setup menu contains the following functions:
Travel sets the overall travel or endpoints of the servo arm
movement. Travel values range from 0–150% (Default is 100%).
To adjust Travel values:
1. Scroll to the channel you wish to adjust and click the scroll
wheel.
2. Scroll Up or Down to adjust the travel value. Click the scroll
wheel to save the selection.
FUNCTION LIST
Click the scroll wheel from the main screen to access the
FUNCTION LIST. The FUNCTION LIST contains all the available
menus on the DX5R. The functions include:
Model Select enables you to access any of the 250 internal
model memory locations in the Model Select list.
1. Scroll to the desired model memory in the Model Select list.
2. When the desired model memory is highlighted, click the
scroll wheel once to select the model. The transmitter
returns to the Main Screen.
3. Add a new model by rolling to the bottom of the list. You
will then be prompted with the Create New Model screen,
with the option to create a new model or cancel. If you
select Cancel, the system will return to the Model Select
function. If you select Create, the new model will be
created and now be available in the model select list.
CAUTION: NEVER change the model
in Model Select while operating a
model. Changing the model memory
interrupts the transmitter signal to the
receiver and may cause loss of vehicle
control, damage or personal injury.
Model Select
• Model Select
• Model Name
• Servo Setup
• Rates
• Exponential
• Timer
Bind/ Frame Rate
• Mixing
• AVC
• ABS
• Idle Up
• Traction
• Trim Setup
• Channel Assign
• Telemetry
Drive Mode Name
• System Settings
• System Setup
57840 SPM DX5 Pro DSMR Tx Manual_BOOK 857840 SPM DX5 Pro DSMR Tx Manual_BOOK 8 4/26/18 2:56 PM4/26/18 2:56 PM
