SPEKTRUM DX5 PRO • TRANSMITTER INSTRUCTION MANUAL
EN

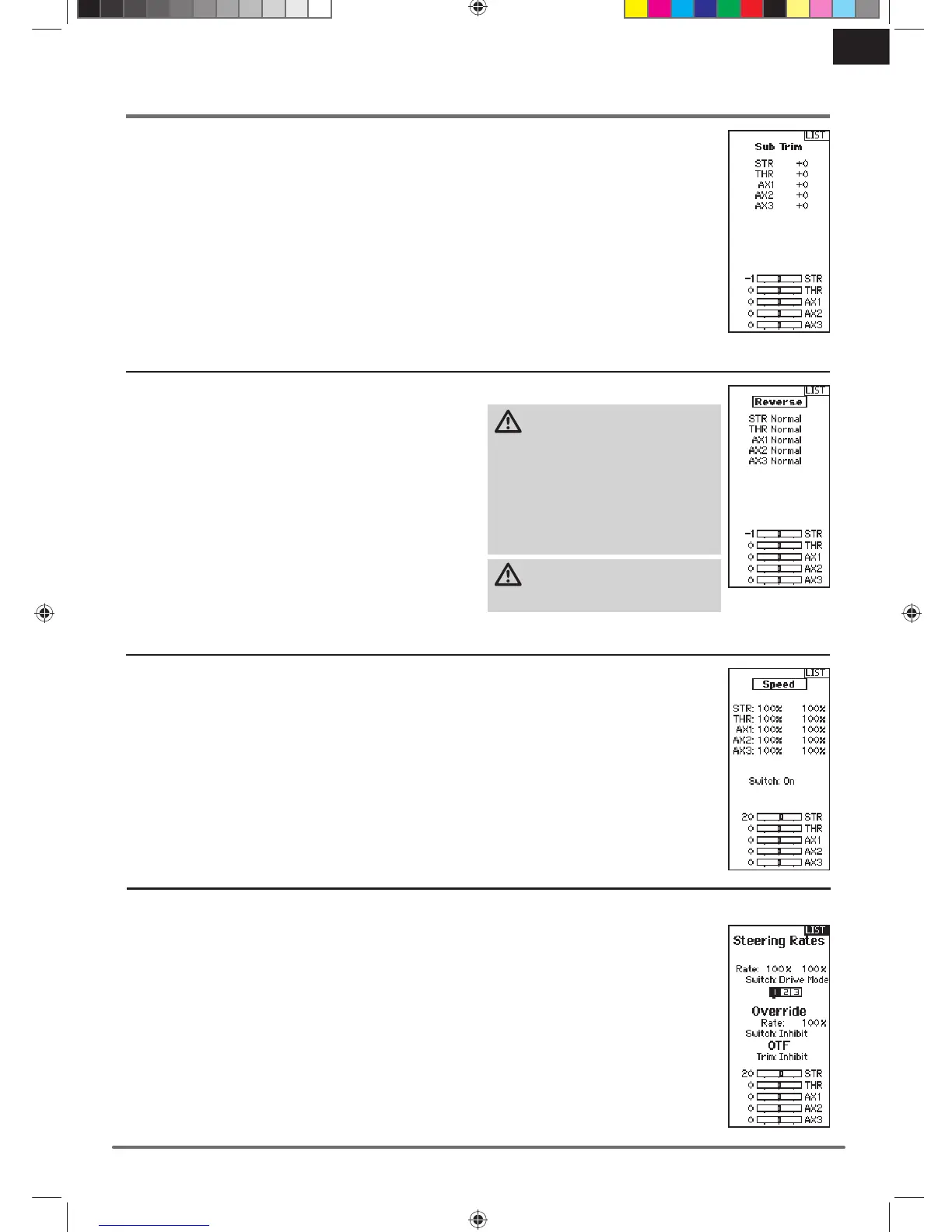

FUNCTION LIST
Subtrim offsets the entire range of servo travel including the
center and endpoint positions.
Reverse
Use the Reverse menu to reverse the channel direction. For
example, if the Steering servo moves Left, reversing the channel
will move the Steering servo Right.
To reverse a channel direction:
1. Scroll to Travel and click the scroll wheel. Scroll up or down
until Reverse appears, then click the scroll wheel again to
save the selection.
2. Scroll to the channel you wish to reverse and click the
scroll wheel.
If you reverse the Throttle channel, a confi rmation screen
appears. Select YES to reverse the channel. A second screen
appears, reminding you to bind your transmitter and receiver.
CAUTION: Always rebind the
transmitter and receiver after
reversing the Throttle channel. Failure to
do so will result in the throttle moving to
full throttle if failsafe activates.
Always perform a control test after
making adjustments to confi rm the vehicle
responds properly.
CAUTION: After adjusting servos,
always rebind the transmitter and
receiver to set the failsafe position.
Sub-Trim
Speed
The Speed menu enables you to slow the response time on any
individual channel.
The Speed is adjustable from 100% to 1%.
To adjust the Speed:
1. Scroll to the channel you wish to adjust
and click the scroll wheel.
2. Scroll Up or Down to adjust the speed
and click the scroll wheel to save the
selection.
3. Select a switch to activate/deactivate the
function. If Switch ON is selected, the value
will always be on for that function.
Rates
Rates allow the driver to reduce the travel (0-100%) of the
Steering, Throttle, or Braking with a trimmer button. The
Override option allows drivers to select a different rate value
(0-125%) while holding down the assigned trimmer button.
This is especially helpful for oval racers that program minimal
steering throw to desensitize steering during racing, but requires
maximum steering angle to drive out of a crash or get turned
around on the track.
To adjust Rate values:
1. Scroll to Steering and click the scroll
wheel to select between Steering,
Throttle or Brake.
2. Scroll Up or Down to adjust the Rate value.
Click the scroll wheel to save the selection.
3. Set the Switch setting to On to enable
Rates, select Inh to disable Rates.
4. Select an Override rate and switch.
5. Select the OTF (On-The-Fly) trimmer that
will be used to adjust Rates On-The-Fly.
