4
SPEKTRUM DX5 PRO • TRANSMITTER INSTRUCTION MANUAL
EN

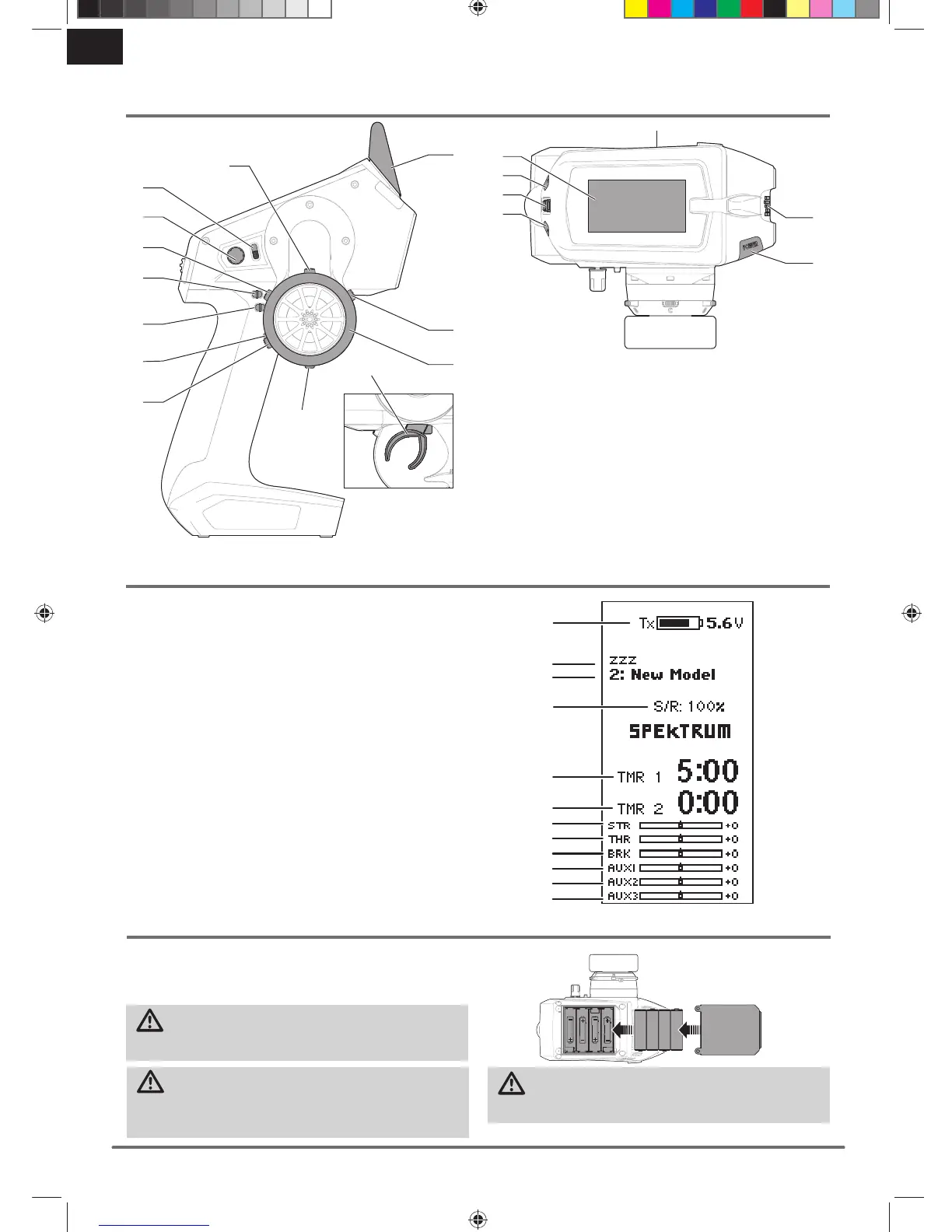

IDENTIFYING CONTROLS AND SWITCHES
A
B
C
D
E
F
G
H
J
I
K
L
M
T
S
R
O
N
P
Q
A: Button C
B: Switch I
C: Knob
D: Button B
E: Button F
F: Button G
G: Button H
H: Button A
I: Button E
J: Trigger (throttle/brake)
K: Steering Wheel
L: Button D
M: Antenna
N: LCD Screen
O: Button L
P: Roller Wheel
Q: Button R
R: SD Card Reader
S: Power LED
T: Power Button
The Main Screen displays information about the active model,
including the Timer (when activated). To return to the Main Screen
at any time, press and hold the
scroll wheel for at least 6 seconds.
A: Transmitter Battery Voltage
B: User Name
C: Model Name
D: Steering Rate
E: Timer 1 (when activated)
F: Timer 2 (when activated)
G: Position of Steering (STR) trim
H: Position of Throttle (THR) trim
I: Position of Brake (BRK) rate
J: Position of Aux 1 trim
K: Position of Aux 2 trim
L: Position of Aux 3 trim
MAIN SCREEN
A
C
B
D
E
F
G
H
I
J
K
L
INSTALLING BATTERIES
CAUTION: NEVER remove the transmitter batteries
while the model is powered on. Loss of model
control, damage or injury may occur.
CAUTION: If using rechargeable batteries, charge only
rechargeable batteries. Charging non-rechargeable
batteries may cause the batteries to burst, resulting in injury
to persons and/or damage to property.
1. Remove the battery cover from the bottom of the transmitter.
2. Install 4 AA batteries as shown.
3. Install the battery cover.
CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to
state and local laws.
57840 SPM DX5 Pro DSMR Tx Manual_BOOK 457840 SPM DX5 Pro DSMR Tx Manual_BOOK 4 4/26/18 2:56 PM4/26/18 2:56 PM
