11
SPEKTRUM DX5 PRO • TRANSMITTER INSTRUCTION MANUAL
EN

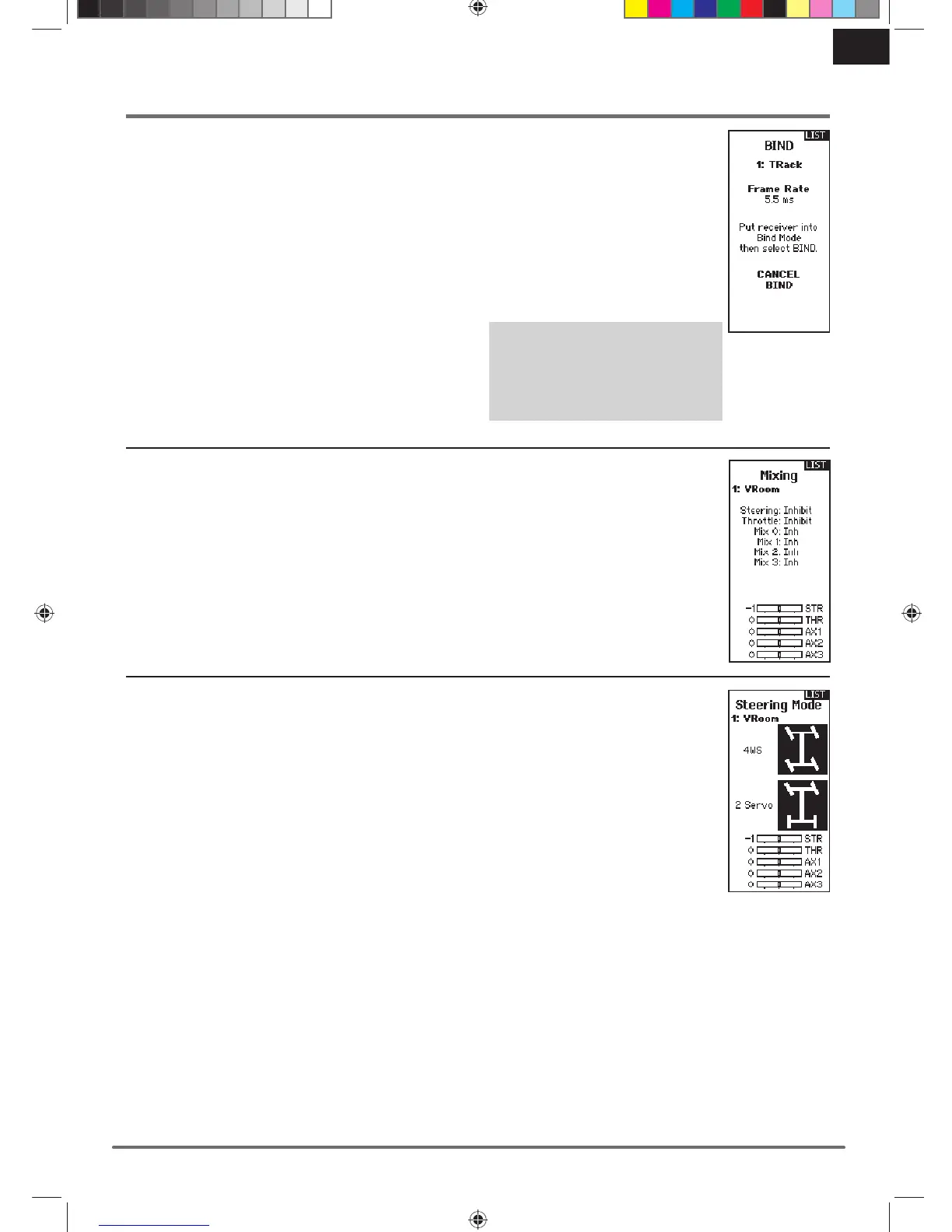

FUNCTION LIST
Binding
Binding is the Process of teaching the receiver the specifi c
transmitter’s code called GUID (Globally Unique Identifi er) and
storing failsafe values. When a receiver is bound to a transmitter/
model memory, the receiver will only respond to that specifi c
transmitter/model memory.
Bind the Transmitter to the Receiver
1. Place the receiver into Bind mode, the LED on the receiver
will begin to fl ash.
2. Power on the transmitter.
3. Select the Model Memory you wish to bind to.
4. Select Bind from the List menu.
5. Move the throttle channel to the desired failsafe position.
IMPORTANT: The throttle channel must stay in the failsafe
position until binding is complete.
6. Scroll to Bind and click the
scroll
wheel. The orange LED fl ashes on top
of the transmitter.
7. When the bind process is complete,
the transmitter and receiver LEDs stop
fl ashing and turn solid orange.
8. Remove the bind plug from the
receiver and keep it in a convenient
place.
NOTICE: Always remove the bind plug
from the receiver when the bind Process
is complete. Failure to do so will cause the
receiver to enter bind mode the next time
you power on the receiver.
Mixing
Mixes can connect two servo outputs to one control input. The
DX5 Pro features preset steering mixes and one programmable
mix (Mix 0). The AUX channels can only be assigned to one mix
at a time. If AUX 1, 2, or 3 is assigned to another mix, it will not
be available as a slave channel option. AUX channels 1 and 2
are not available for use in mixes when the AVC menu in the
transmitter is active.
• AUX1, AUX2 and AUX3 are available to
serve as the slave channel.
• The AUX channels can only be assigned to
one mix at a time. If AUX1,AUX2 or AUX3
is assigned to another mix, it will not be
available as a slave channel option.
The pre-confi gured Steering Mix options are for vehicles using
two steering servos. For vehicles with servos independently
controlling front and rear wheels, four-wheel steering (4WS)
offers four different mixing options on one switch. The dual
steering servo (Dual ST) mix is for vehicles with two servos
working together on the front wheels.
Steering Mix
57840 SPM DX5 Pro DSMR Tx Manual_BOOK 1157840 SPM DX5 Pro DSMR Tx Manual_BOOK 11 4/26/18 2:56 PM4/26/18 2:56 PM
