4.3.2 Installing the 2194 or 2199 Clamp Assembly
To install the clamp, first locate the 3/16”Allen wrench and the three bolts and lock washers
supplied with the Geno/Grinder. Open the Geno/Grinder top cover and place the clamp
base on top of the shaft. Using the three lock washers and bolts, secure the clamp base to
the shaft with the Allen wrench, as shown in Figure 4.

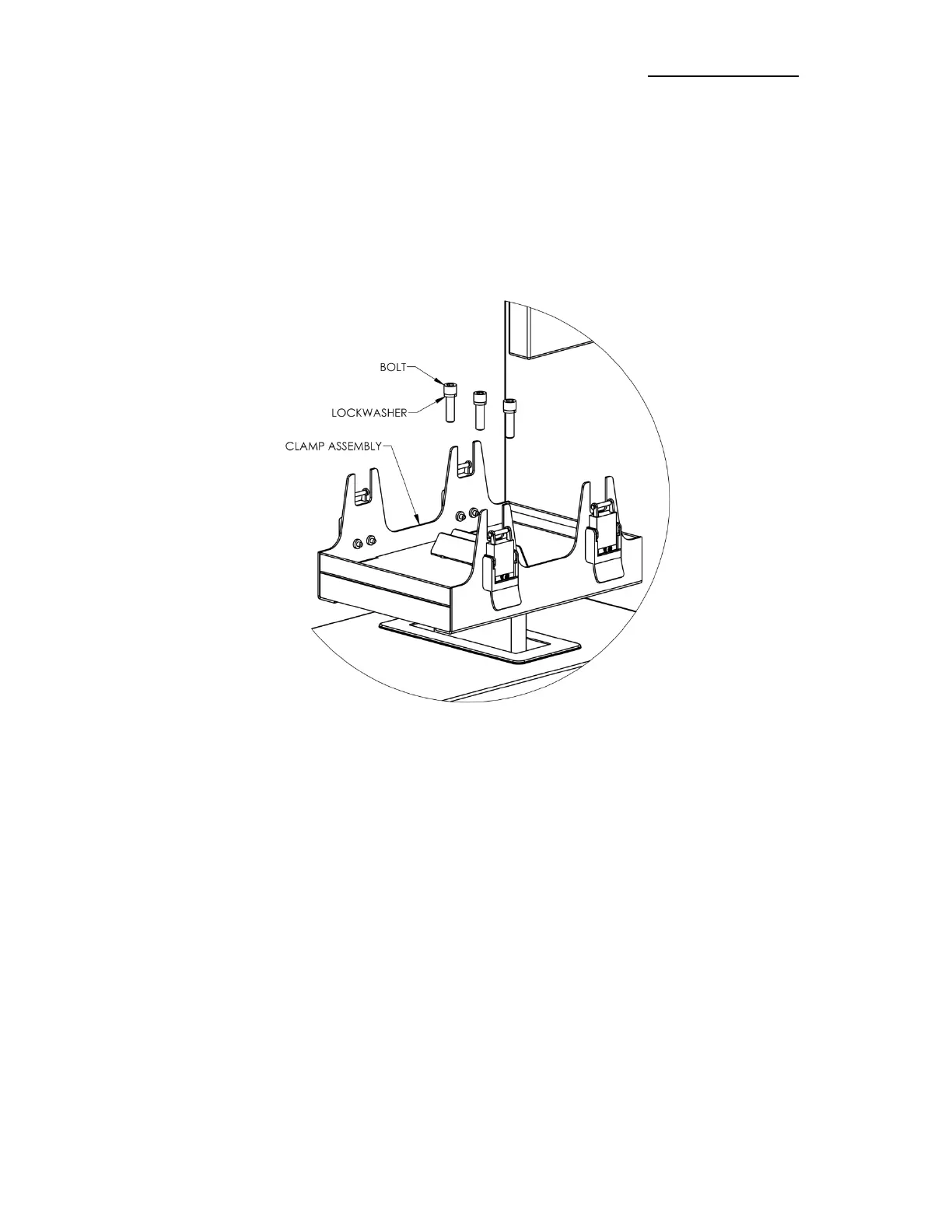

Figure 4 – Installing the 2194 Standard or 2199 Large Clamp
