6.1.1 Vials in Holders or Cryo-Blocks (Cont’d)
Place vials in holders or
cryo-blocks in clamp base
Slide lid onto the screw with
guide on upright at rear

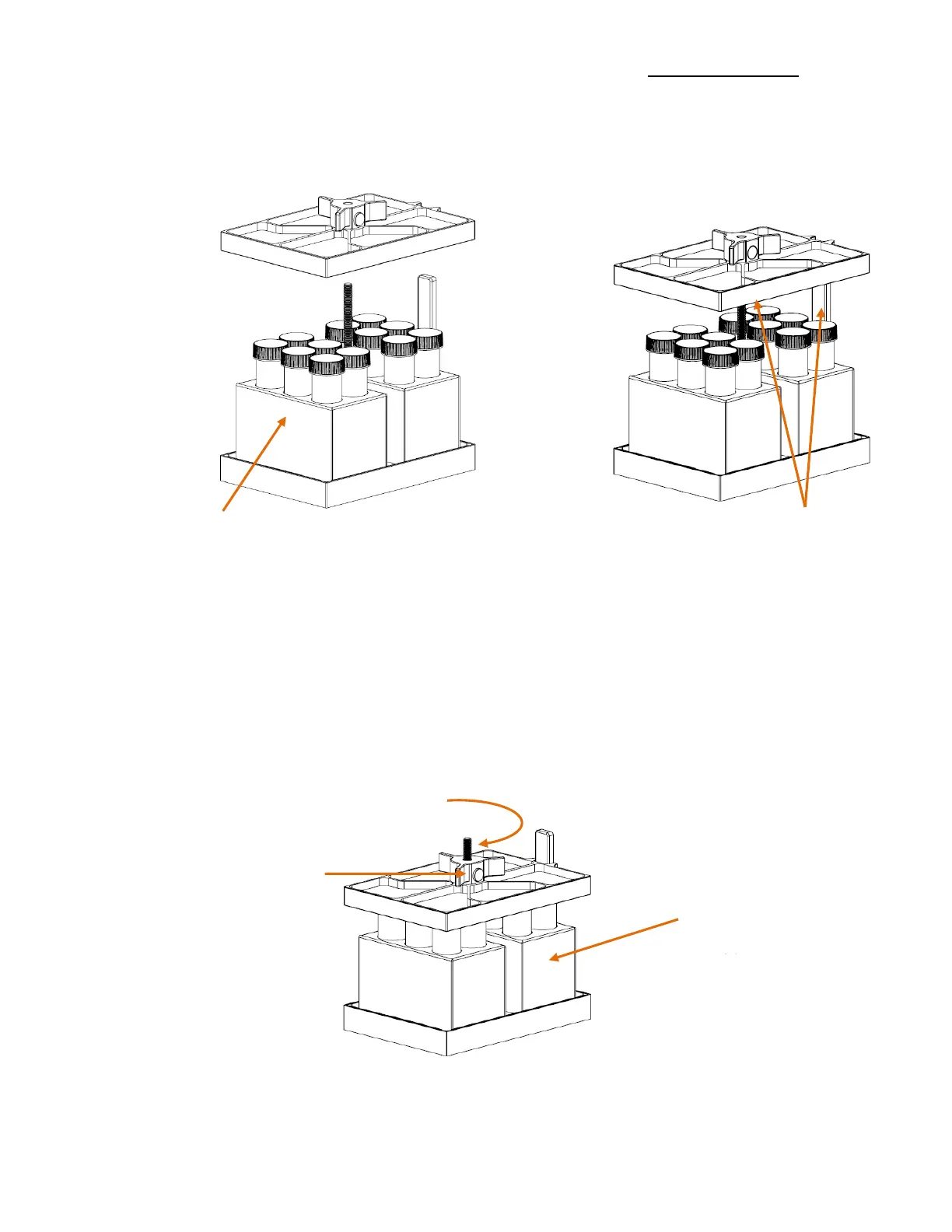

Figure 6 – Loading the Clamp
Figure 7 – Attaching the Clamp Lid
A) Press and hold button while
sliding the clamp lid down
the screw shaft
B) Turn handle to tighten and
check that button has
popped out
C) Make sure that vials
are secure and cannot
be moved from side
to side
Figure 8 – Securing the Clamp Lid
