6.2.2 Vials in Holders or Cryo-Blocks (Cont’d)
4. Refer to Figure 13 when stacking titer plates in the 2199 large capacity clamp.
6.2.3 Releasing the Clamp
1. Press in the safety catch while lifting the latch. It is helpful to release two latches
opposite each other on the lid simultaneously.
2. Release all 4 latches and unhook from the strike plates on the lid(s).
3. Remove the lid(s) and set aside.
4. Titer plates or vials can now be easily removed from the clamp base.
NOTE: When unfastening a clamp, remember to push in the safety catch. Always unclamp
both ends of each lid before removing it.

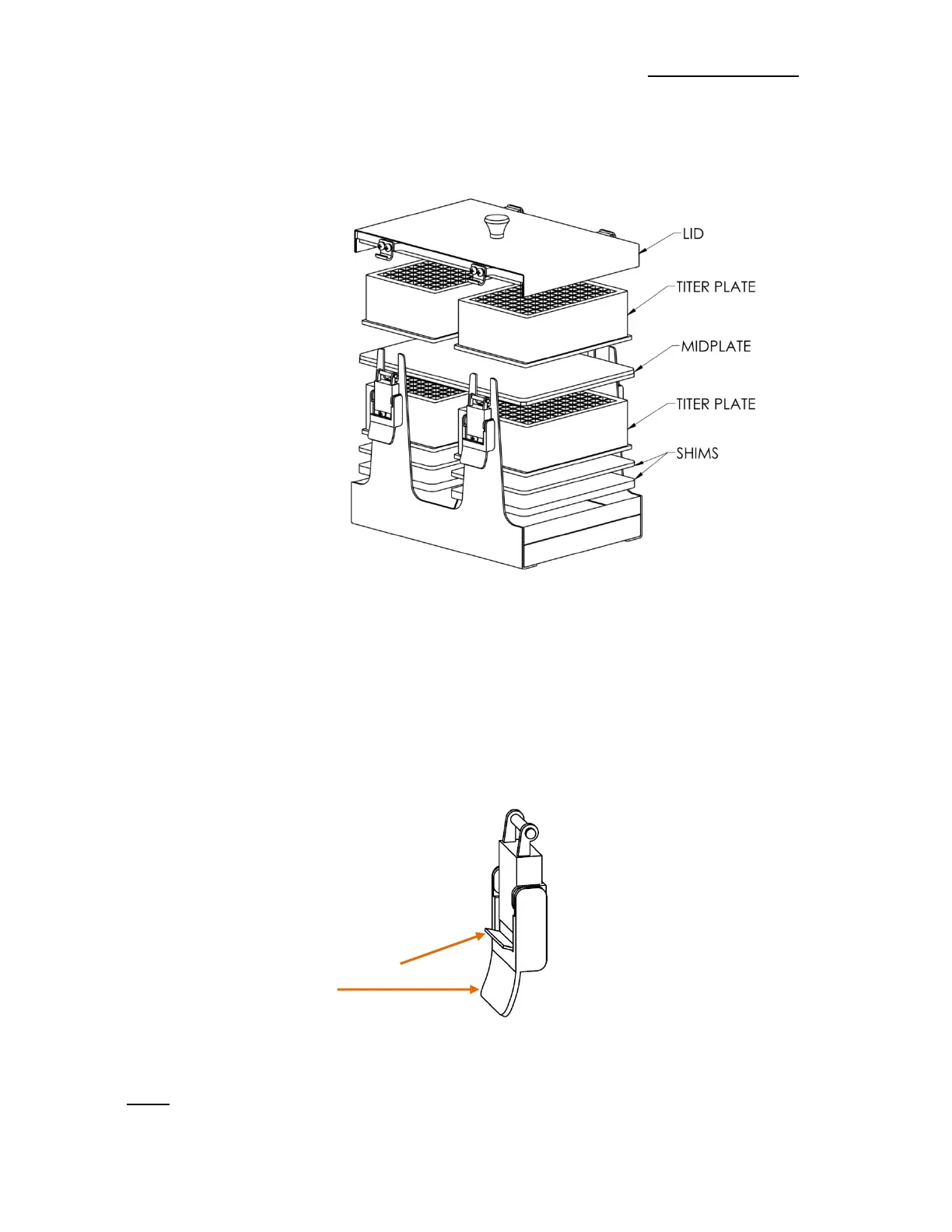

Figure 13 - Stacking Titer Plates in the 2199 Large Clamp
Safety Catch locks when clamp is
loaded. Press to release lock
after run is complete.
To release, press safety catch
while lifting the latch
Figure 14 – Releasing the Latch
