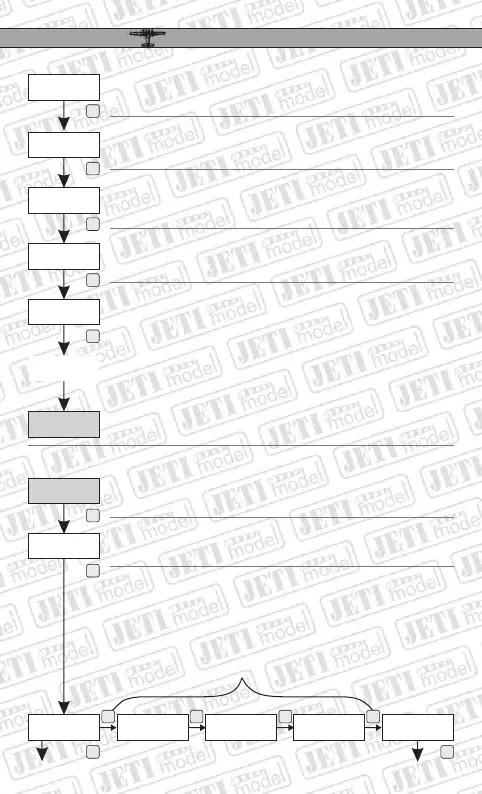

Motor Pole No.
Gear
Max. Motor RPM
Max. Prop RPM
Errors
Return to the
menu Measure
Measure
Set the number of motor poles by means of the push-buttons L-R . This parameter
is important for correct readings of the max. rpm.
Set the gear ratio of the gearbox. Apply 1:1,0 for direct drive
In the course of operation the controller registers the max. motor rpm and the time
at which these rpm have been achieved.
The controller registers the max. rpm of the propeller in the course of operation
and the time at which these rpm have been achieved.
If parameters have been exceeded – voltage (U), temperatures (T), com-
mutation (C) and current (I), protections will be activated and the motor will
be cut-off. The reading y means that parameters became exceeded (an error
occurred), the reading n indicates that parameters have not been exceeded.
With the help of this error notification the cause of motor cut-off can be
determined.
Remark. Protection in case of incorrect commutation (C) – if operation
becomes unsafe due to many commutation errors as a result of incorrect motor
design. In some cases this problem can be solved by increasing the motor timing.
5.2 Manual setting
MAN Setting
Temperature
Protection
Certain parameters of the controller can be set or checked manually.
With the aid of push-buttons L-R the level of the controller temperature
protection can be set.
Redefined brake:
The first value is the initial braking level in %, the second value – the final
braking level in %, the third value – time of brake application between the first
and second intensity. Confirm brake setting with push-button D .
If the brake is switched off jump to line OPERATION MODE – switching between
modes Aircraft-Helicopter.
Brake OFF
Brake Manual
Setting
Hard BrakeMedium BrakeSoft Brake
D
D
D
D
D
D
D
DD
RRRR
EN
SPIN SPIN
PROPRO
23
