Spirax Sarco Colima Visco - Design Conditions; Dimensions; Weights

Colima Visco and Viscorol Magnetic level indicators
TI-P329-01
CH Issue 1
Page 3 of 8

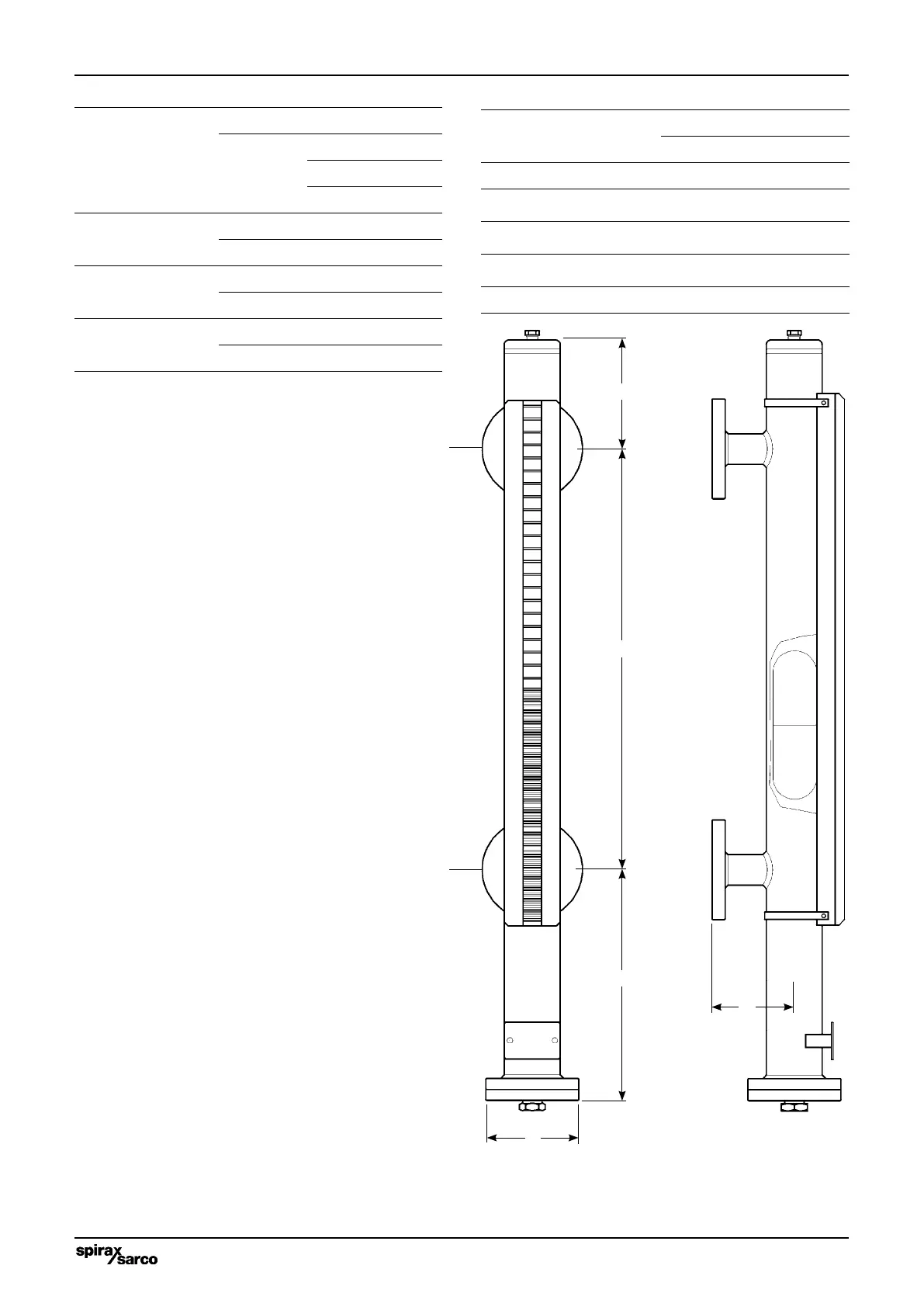

Dimensions / weights (approximate) in mm and kg
A
Minimum length 200
Maximum length 5700
B
Minimum 100
C
Depending on fluid specific
gravity and pressure
Starting from 250
D
Depending on fluid specific
gravity and pressure
Starting from 80
E
Depending on fluid specific
gravity and pressure
Starting from 85
Weights Dependent on dimension A
Design conditions
TMA
Maximum
allowable
temperature
Steel -25 to +350°C
Plastic
PVC -20 to +70°C
PP -20 to +105°C
PVDF -20 to +130°C
PMA
Maximum
allowable
pressure
Steel < 125 bar g
Plastic < 16 bar g
Specific gravity
of fluid
Steel and plastic > 0.8 kg/l
Buna N / Titanium > 0.5 kg/l
Two-colour line marker
material and rollers
Polycarbonate T < 180°C
Aluminium T < 350°C
A
B
C
E
D
Side process connection
Side process connection
