3. Electrical connections
3.1 Guidance notes on wiring installation
For heavy industrial applications it is recommended to use screened cables or signal cables run
in metal conduit. Failure to do so could result in positional errors of up to ±5% in an RF field excess
of 10 V/m.
For light industrial applications where RF fields do not exceed 3 V/m unscreened cables may be
used.

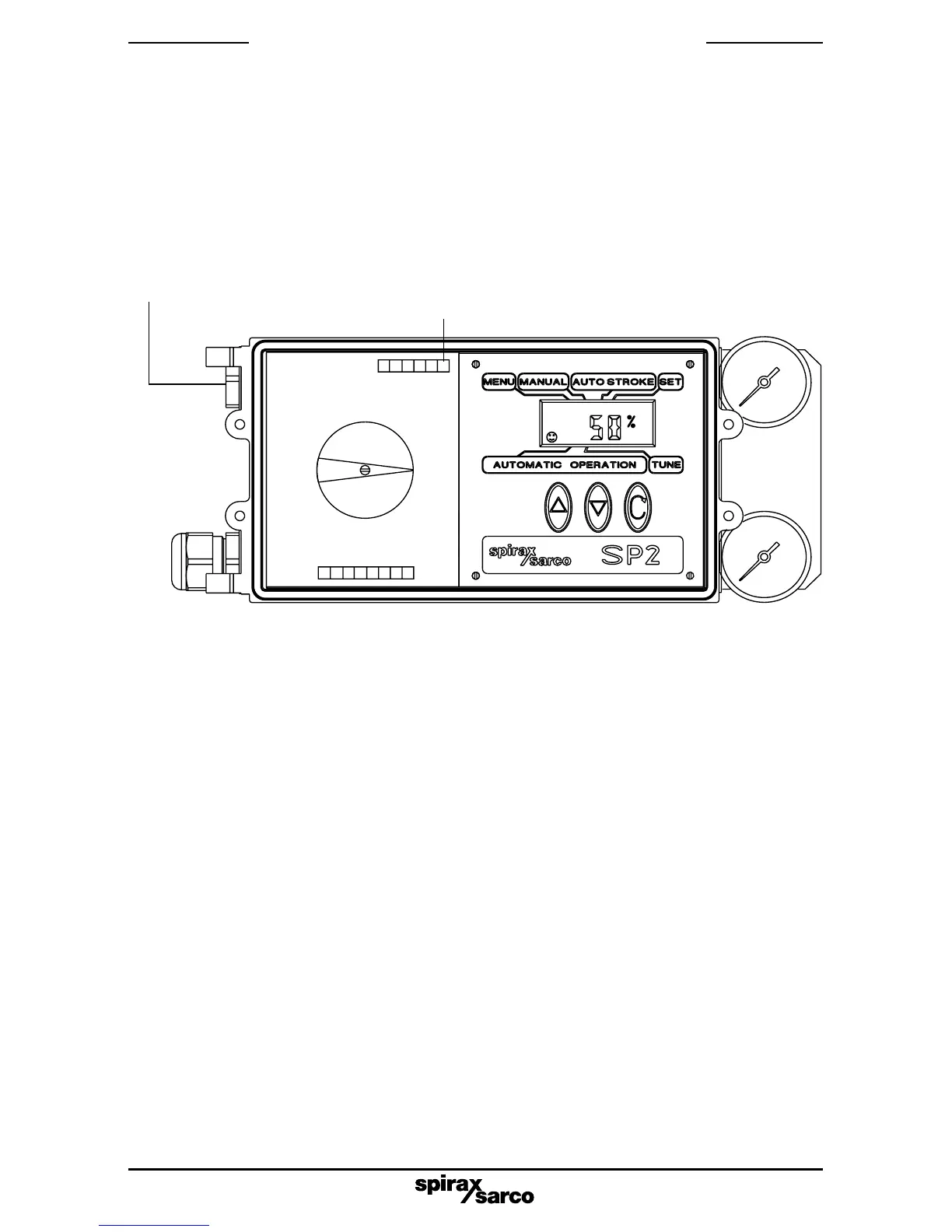

Cable connection blanking plug
(Note: a spare Pg 13.5 cable gland is supplied with each options board kit)
Options board terminal block
Fig. 15
