IM-P192-02 MI Issue 2 19

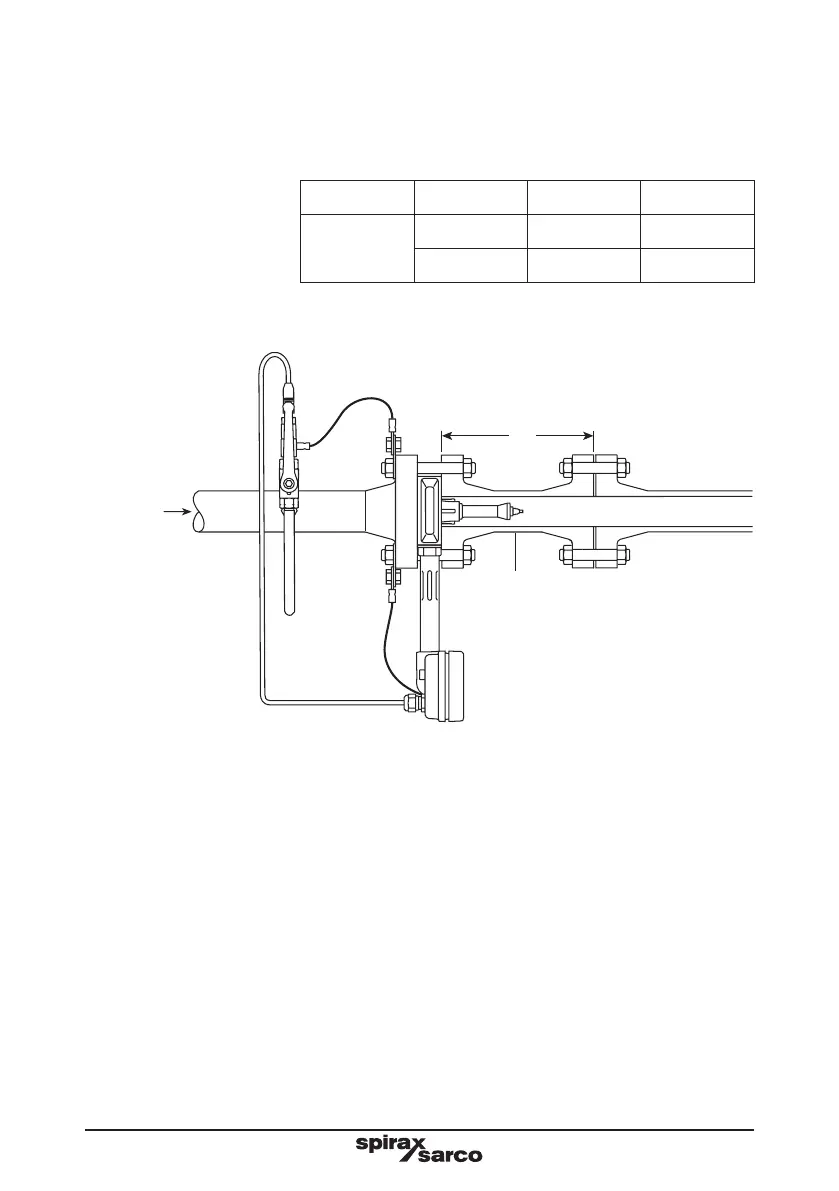

Fig. 14

Spool piece

Flow

To install the TVA owmeter pipeline unit into existing pipework and for aiding possible

flowmeter removal, a spool piece can be fabricated locally to the dimensions given below

(see Figure 14).

Size DN50 DN80 DN100

Dimension A

180 mm 240 mm 300 mm

7.1 in 9.5 in 11.8 in

Note: The 'U' syphon and

pressure sensor must be

used for superheated steam

applications.
