Spirax Sarco TVA Series User Manual

IM-P192-02 MI Issue 220

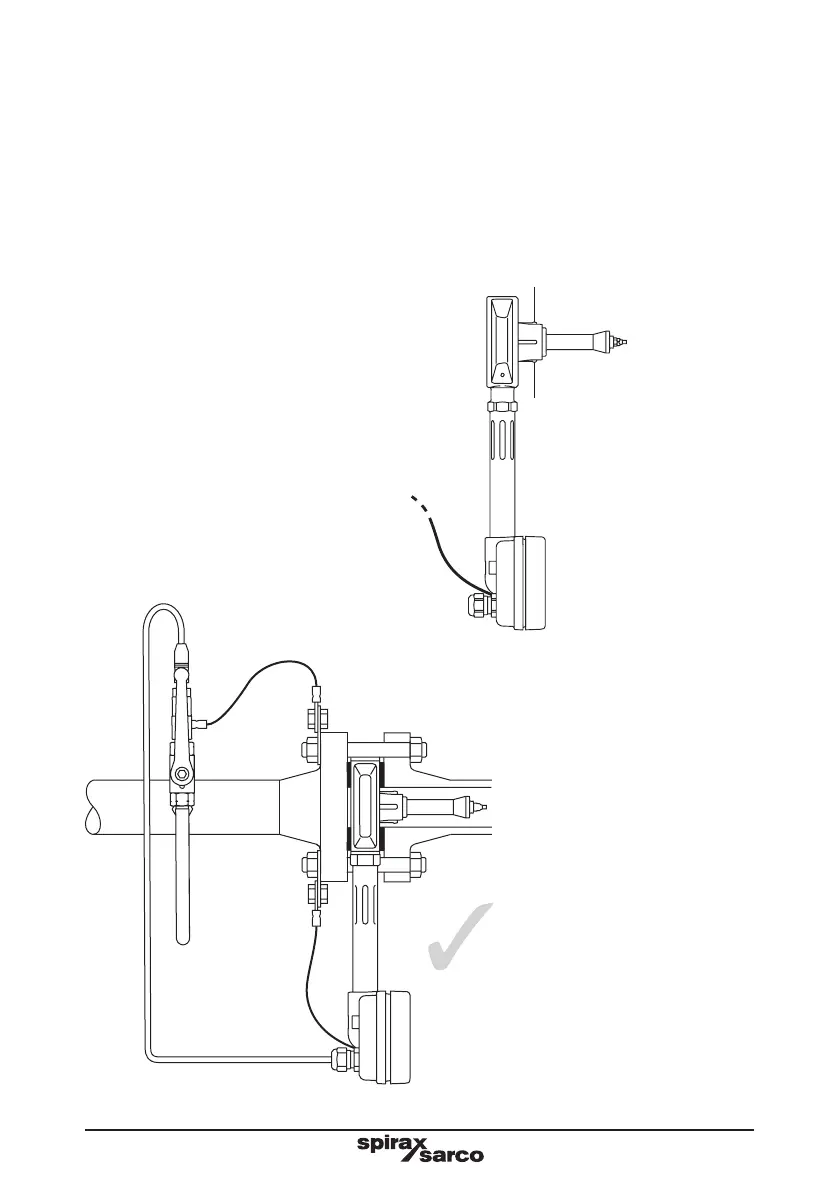

Fig. 16 Gaskets fitted correctly
Location in pipework
Bolt ring gaskets having the same internal diameter of the pipework are recommended.
This will prevent possible inaccuracies being created by the gasket protruding into the pipe.
It is important that the TVA owmeter is located centrally in the pipework as any eccentricity
may cause inaccurate readings. The TVA owmeter has integral centering webs, which locate
on the internal diameter of the pipework (see Figure 15).
Integral centering webs
Fig. 15 Integral centering webs
Integral centering webs
Note: The 'U' syphon and
pressure sensor must
be used for superheated
steam applications.
Earth cable
