IM-P192-02 MI Issue 2 9
CAUTION:
If the electronic housing is mounted at
an angle of more than 45° from the
vertically downward position the PMO
(maximum operating pressure) must
be limited to 7 bar g (101 psi g) and
saturated steam applications only.
The electronic housing must be
mounted vertically downward for all
superheated applications.

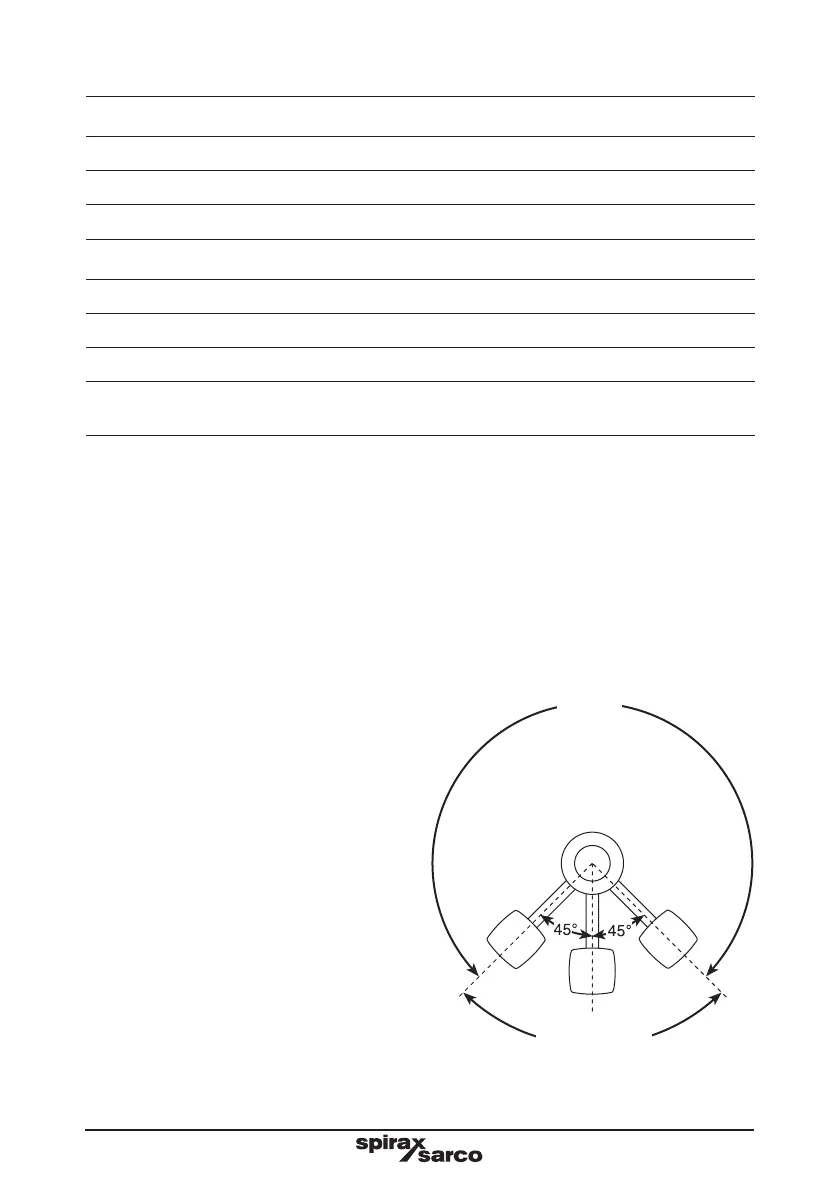

Fig. 2 Installation limiting conditions
Important note
*
Limited to
7 bar g (101 psi g)
and
saturated steam
applications
only
For saturated steam
applications
over 7 bar g (101 psi g)
to 32 bar g (464 psi g) and all
superheated applications up to
23 bar g (333.5 psi g).
High pressure syphon tube assembly
Maximum design pressure 80 bar g (1 160 psi g)
Maximum design temperature 450 °C (842 °F)
Maximum working conditions 60 bar g @ 450 °C (870 bar g @ 842 °F)
Pressure sensing kit
Maximum operating temperature 125 °C (257 °F)
Minimum operating temperature 0 °C (non-freezing) (32 °F non-freezing)
Maximum operating pressure 50 bar g (725 psi g)
Maximum ambient temperature
(cable+connector)
70 °C (158 °F)
