Splicecom S8000/718 - Page 9

Installation and Maintenance Manual
Installing a System
Installation and Maintenance Manual v4/0615/10 5
Please note that the front view diagram is incorrect, the first LED is the LINK LED and the second is the
DISK drive LED.

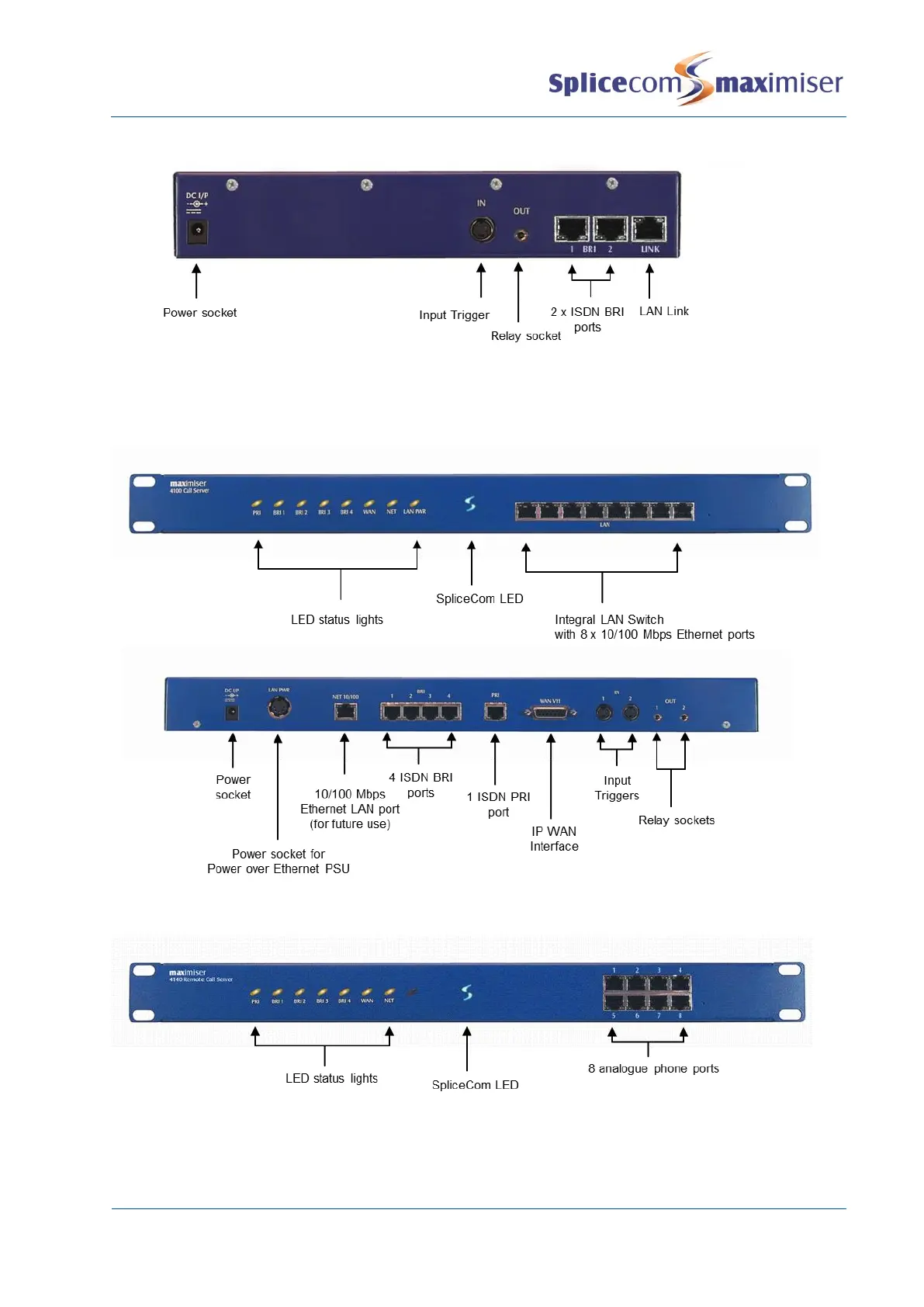

4100 Call Server – Front and Rear view
4140 Remote Call Server – Front and Rear view
