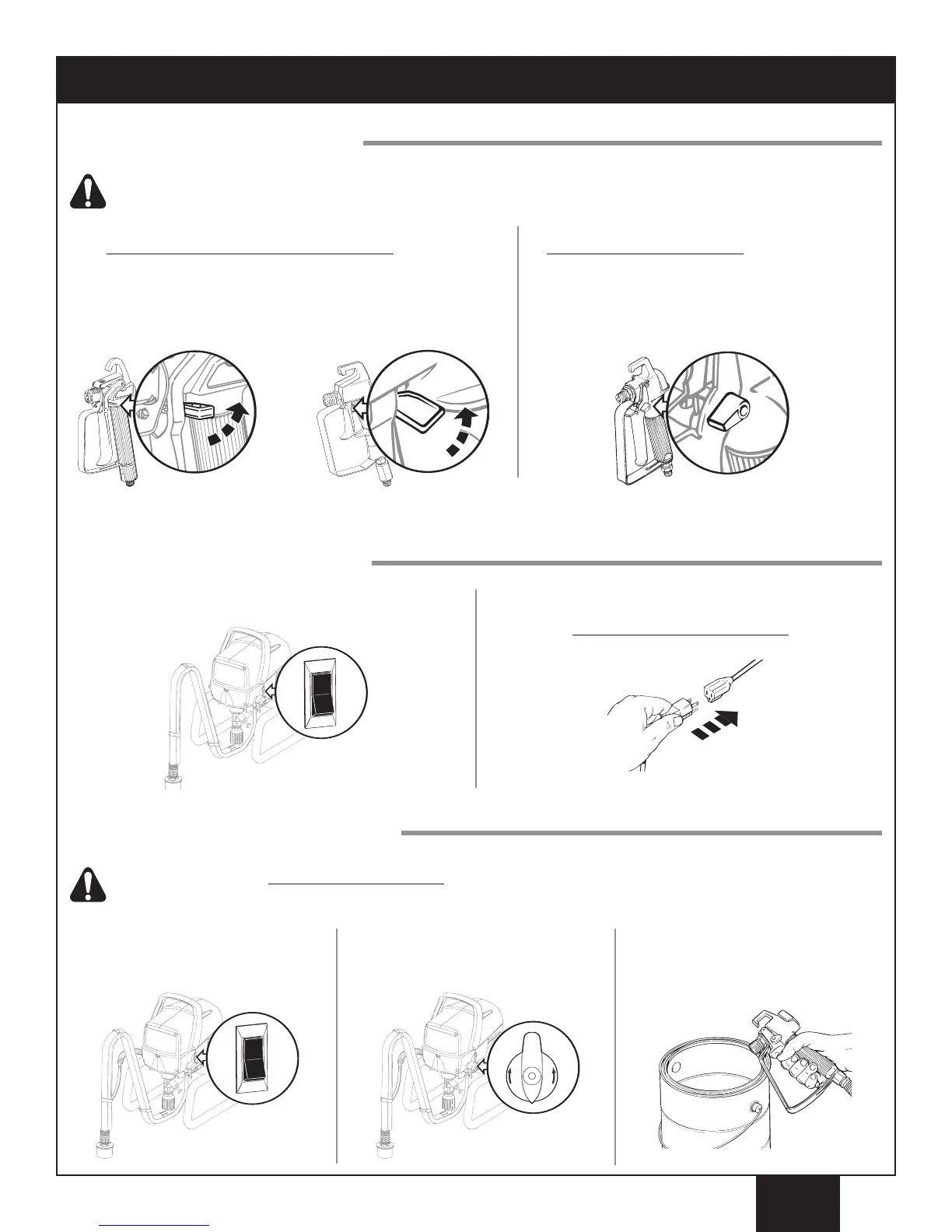

SprayTECH 1420 - Before You Begin Procedures; Locking the Spray Gun; Plugging in the Sprayer; Pressure Relief Procedure

7
English
Before you begin -
This section contains instructions that
will be repeated throughout this manual.
Always lock the trigger off when attaching the spray tip or when the spray gun is not in use.
Model GX-05 and GX-07 Spray Gun
T
he gun is locked when the trigger lock is at a 90º angle
(perpendicular to the trigger in either direction).
Model GX-08 Spray Gun
To lock the gun, turn the trigger lock forward and
slightly down until it stops.
1. Check that the ON/OFF switch is in the OFF (O) position.
2. Plug the power cord into a grounded outlet or heavy duty
grounded extension cord. Plug in the extension cord.
Refer to Important Electrical Information, page 3.
O
O
1.
Lock the spray gun of
f
(see
directions above). Flip the
ON/OFF switch to the OFF position.
3.
Unlock the spray gun and trigger
spray gun into the side of the
material bucket. Lock the spray gun.
2.
T
urn the PRIME/SPRA
Y knob to
PRIME.
Be sure to follow the Pressure Relief Procedure when shutting the unit off FOR ANY PURPOSE. This
procedure is used to relieve pressure from the spray hose.
SPRAY
PRIME
GX-05 GX-07
Plugging in the Sprayer:
Pressure Relief Procedure:
Locking the Spray Gun:
