SprayTECH EPX2355 - Parts List; Main Assembly

18 © SprayTECH. All rights reserved.

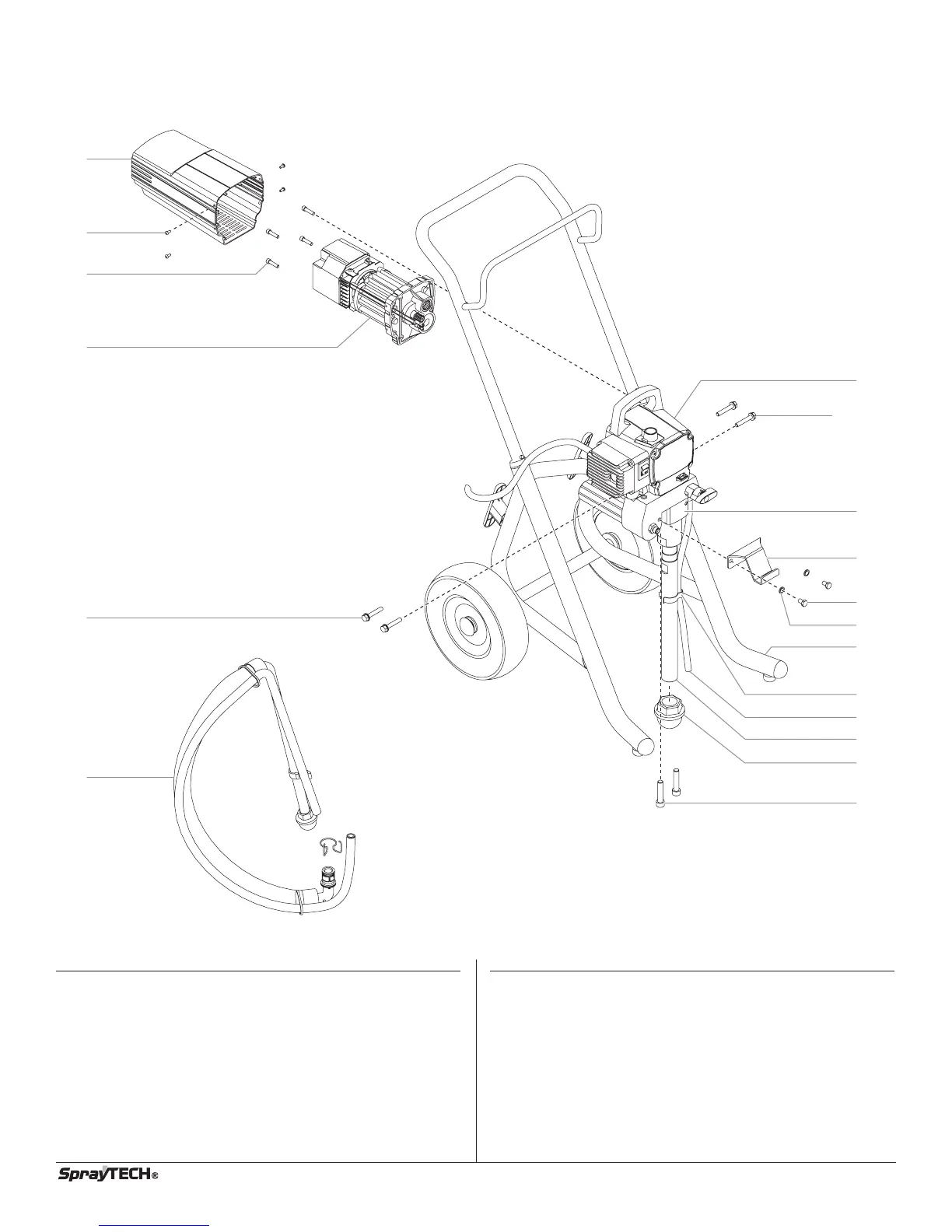

Parts List
Main Assembly
1
3
4
5
6
2
13
14
15
16
17
5
7
11
8
9
10
12
Item Part # Description Quantity
1 0552300 Motor cover ...............................................1
2 0551440 Screw ........................................................4
3 9800308 Screw ........................................................4
4 ---------- Motor assembly ........................................1
5 0509244 Screw (upright cart) ..................................4
0508590 Screw (low boy)
6 805-257 Suction set assembly (low boy cart) .........1
7 ---------- Gear box assembly...................................1
8 0551675 Fluid section assembly (upright cart) ........1
0551676 Fluid section assembly (low boy cart)
9 0551443 Pail hook (upright cart only) ......................1
Item Part # Description Quantity
10 0508550 Screw (upright cart only) ...........................2
11 0508549 Washer (upright cart only) ........................2
12 0551124 Upright cart assebly ..................................1
13 0507783 Hose clip (upright cart only) ......................1
14 0551556 Return hose (upright cart only) .................1
15 0509543 Siphon tube, long (upright cart only).........1
0551663 Siphon tube, short (upright cart only)
16 5006536 Inlet screen (upright cart only) .................1
17 0508553 Screw ........................................................2
18 0327226 Return hose clamp (low boy, not shown) .1
19 0509636 Plug (low boy cart only, not shown) ..........2
20 9885612 Return tube tting (low boy, not shown) ...1
