SprayTECH EPX2355 - Motor Assembly; Suction Set Assembly; Labels

© SprayTECH. All rights reserved. 19

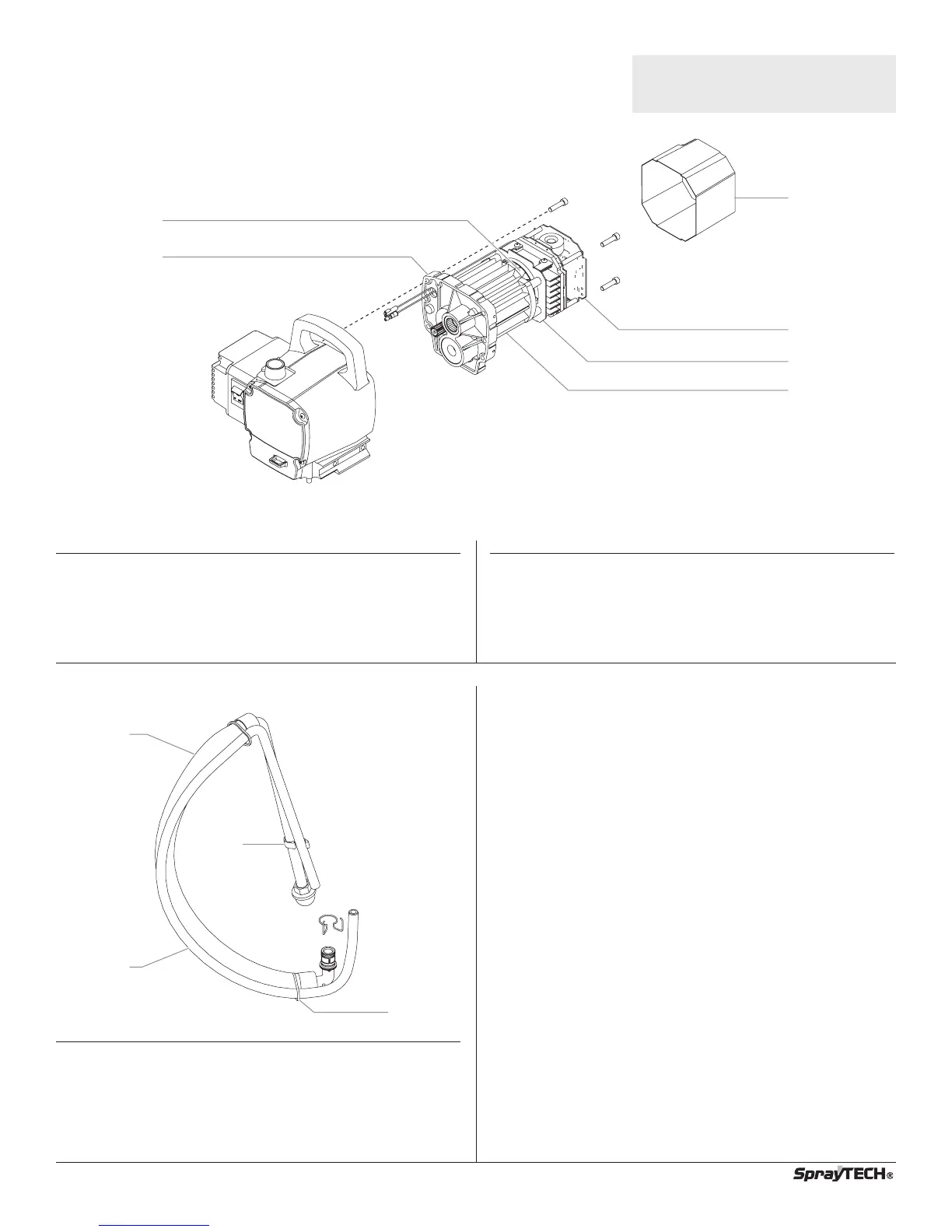

Motor Assembly
2
1
3
4
5
6
Item Part # Description Quantity
1 0551616 Fan ...........................................................1
2 0551599 Front end bell assembly ...........................1
3 0508558 Electronic cover ........................................1
Suction Set Assembly (P/N 805-257)
1
2
3
4
Item Part # Description Quantity
1 805-258 Siphon tube assembly ..............................1
2 805-259 Return hose assembly ..............................1
3 0279459 Hose clip ...................................................1
4 9850638 Tie wrap ....................................................2
Labels
Part # Description
0552706 Logo label, front
0552707 Logo label, left
0552707 Logo label, right
0551485 Warning label, explosion/injection
0295805 Shock hazard label
0507856 PRIME/SPRAY label
0551473 Pressure control label
Item Part # Description Quantity
4 0551612 Electronic control assembly ......................1
5 0551615 Fan shroud ...............................................1
6 0551595 Motor assembly
(includes items 1, 2, 4, and 5) ..................1
NOTE: All electrical work should be
performed by a SprayTECH
authorized service center.
