SprayTECH EPX2355 - Upright Cart Assembly

© SprayTECH. All rights reserved. 21
Item Part # Description Quantity
1 0509218 Screw ........................................................4
2 0552314 Front cover ...............................................1
3 0551617 Slider assembly ........................................1
4 0507777 Connecting pin..........................................1
5 0507768 Retaining ring ...........................................1
6 0508572 Crankshaft/gear assembly ........................1
7 0508573 Thrust washer ...........................................1
8 0509121 Second stage gear ...................................1
9 0507748 Cap ...........................................................1
10 0507749 Seal ..........................................................1
11 0507740 Pressure control knob...............................1
Item Part # Description Quantity
12 0551668 Potentiometer mount ................................1
13 806-213 Power cord assembly ...............................1
14 9800340 Ground screw ...........................................1
15 0551666 Transducer assembly ...............................1
16 0551667 Potentiometer ...........................................1
17 9850936 ON/OFF switch .........................................1
18 0509218 Screw ........................................................4
19 0507751 Port plug ...................................................1
20 0551601 Heat sink assembly
(includes items 18 and 19) .......................1

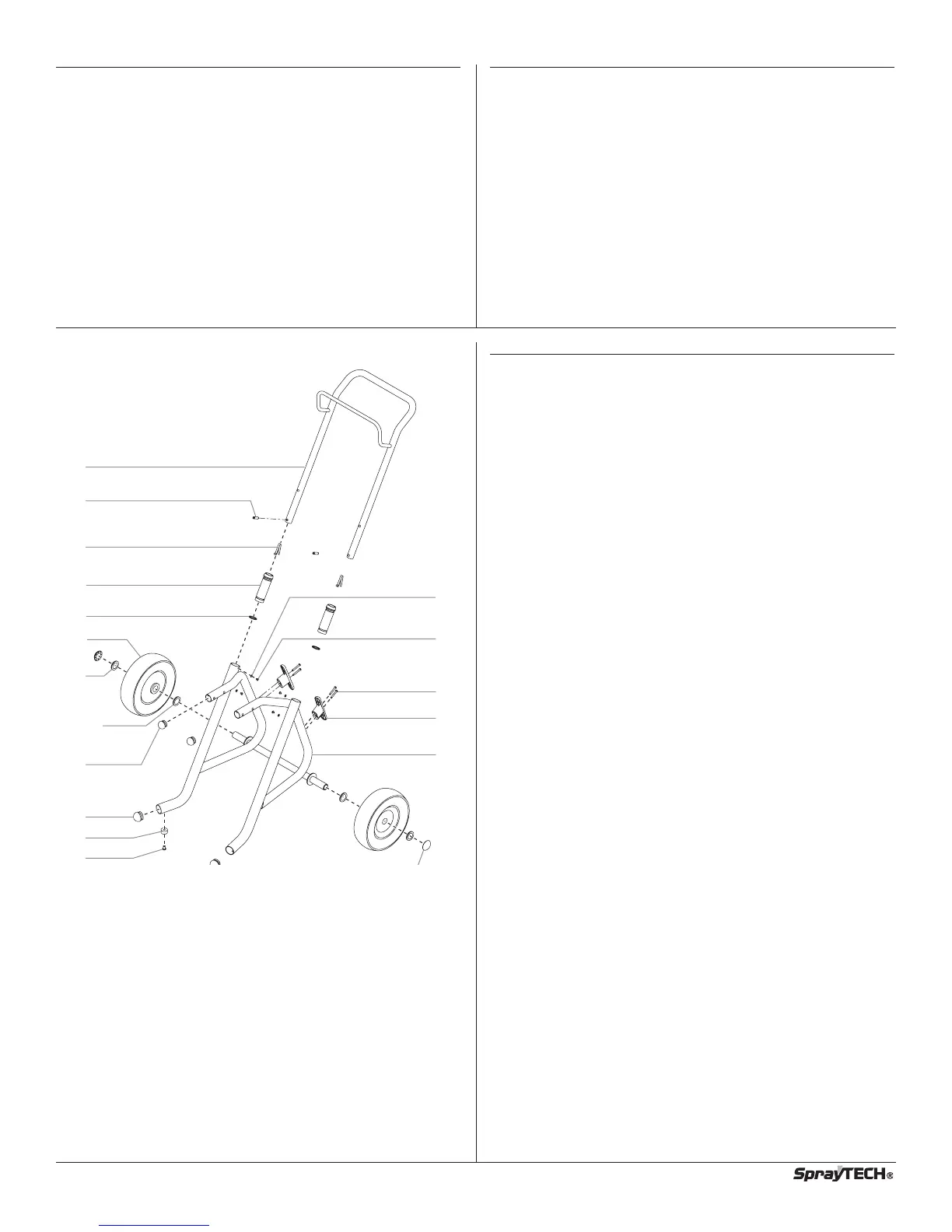

Upright Cart Assembly (P/N 0551124)
1
2
3
4
5
6
7
12
13
17
15
14
16
7
8
9
10
11
Item Part # Description Quantity
1 0551679 Handle assembly
(includes items 2–5, 12 and 13) ...............1
2 0295610 Roll pin ......................................................2
3 9841504 Snap button ..............................................2
4 0295607 Handle sleeve ...........................................2
5 0295609 Handle washer..........................................2
6 0278373 Wheel .......................................................2
7 0294534 Spacer ......................................................4
8 0551550 Plug ..........................................................2
9 0551548 Plug ..........................................................2
10 13538 Bumper .....................................................2
11 54458 Screw ........................................................2
12 0295606 Washer .....................................................4
13 0295608 Screw ........................................................4
14 0507774 Screw ........................................................4
15 0507655 Cord wrap .................................................2
16 0551780 Cart weldment (includes items 8 and 9) ...1
17 9890104 Cap ...........................................................2
