SprayTECH EPX2355 - Low Boy Cart Assembly; Electrical Schematic

© SprayTECH. All rights reserved. 23

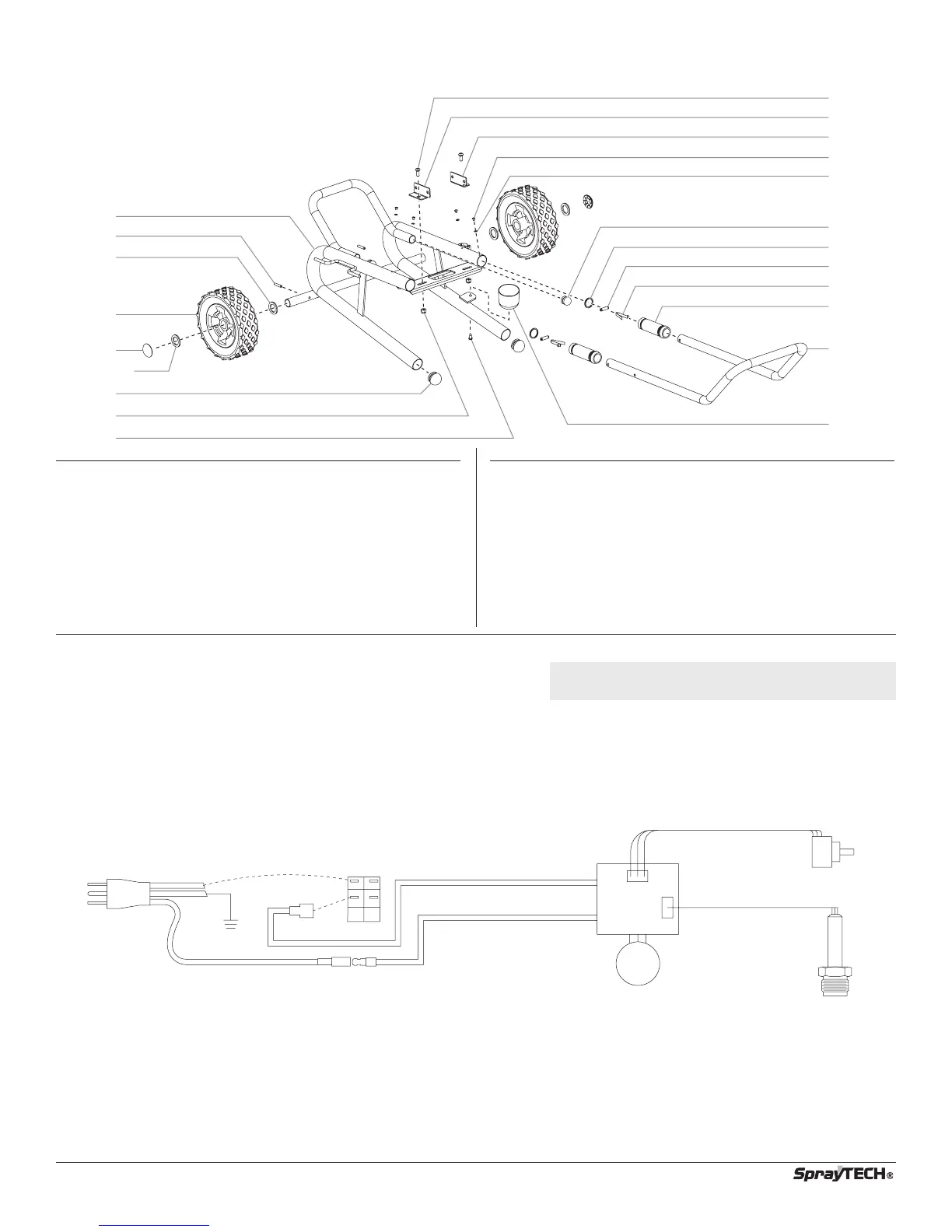

Low Boy Cart Assembly (P/N 0551547)
Electrical Schematic
9
10
11
12
13
14
15
16
17
18
20
19
1
2
3
4
6
7
8
3
5
Item Part # Description Quantity
1 0551608 Cart weldment (includes items 6 and 14) .1
2 0507956 Roll pin ......................................................2
3 0294534 Wheel spacer ............................................4
4 0270394 Wheel .......................................................2
5 9890104 Cap ...........................................................2
6 0551548 Plug ..........................................................2
7 0295615 Lock nut ....................................................2
8 0507955 Screw ........................................................1
9 0295618 Screw ........................................................2
10 0551551 Mounting bracket, left ...............................1
11 0551552 Mounting bracket, right .............................1
Item Part # Description Quantity
12 0295608 Screw ........................................................4
13 0295606 Washer .....................................................4
14 0551525 Plug ..........................................................2
15 0295609 Handle washer..........................................2
16 0295610 Roll pin ......................................................2
17 9841504 Snap button ..............................................2
18 0295607 Sleeve .......................................................2
19 0551609 Handle asssembly
(includes items 12, 13, and 15–18............1
20 0508381 Drip cup ....................................................1
Power Cord
Motor
Transducer
Potentiometer
WHITE MOTOR LEAD
WHITE
BLACK
GREEN
WHITE MOTOR LEAD
Female Bullet
NOTE: All electrical work should be performed by
a SprayTECH authorized service center.
