MANDATORY!
In order to obtain a 4 ÷ 20 mA + Hart® output a minimum load of 250 Ohm is
required.
TAG
-
1
2
3
4
Vdc
12.5
17.4
24
25.2
30
Ohm
23
250
558
615
837

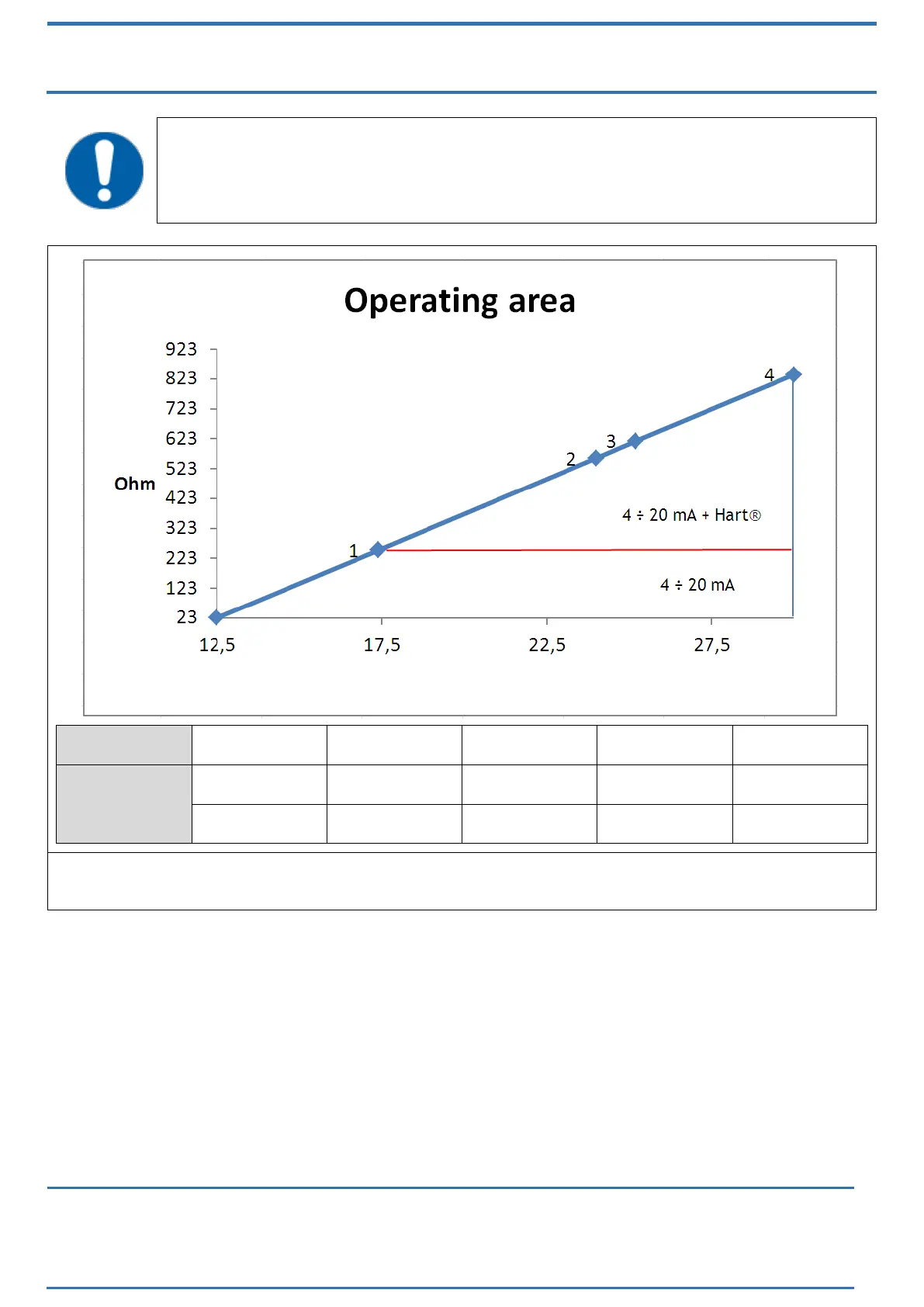

Figure 10: operating area for Ex d protection
The electronic transmitters series SST70 are fully comply with the HART® protocol specification
Revision 6.0, so they include remote process variable interrogation, parameter setting and
diagnostics. The device is a 4 ÷ 20mA 2-wire transmitter, with FSK communication.
It is possible to read via HART® the following variables:
 PV: transmitter primary measure;
 SV: % of the span;
 TV: analog output;
 FV: sensor temperature.
Please refer to Figure 11 for the 4÷20 mA + Hart® modem connection.
In Figure 12 the multidrop Hart® connection type is shown.
