3.6 TOP PART ORIENTATION
Before disassembly the TOP PART strictly follow the Step 1 (Figure 18), Step 2 (Figure 19) and
Step 4 (Figure 20) indicated in 5 TRANSPORT SECURITY OPERATIONS.
Step 1 (Figure 6):
once the DISPLACER is fixed to the top locking device and the TOP PART is ensured with
appropriate equipment in the indicated hanging points, remove the stud bolts (G);
raise the top part ensuring to maintain the coaxiality between the displacer (H) and the
bottom part (I);
then, substitute the gasket (L).

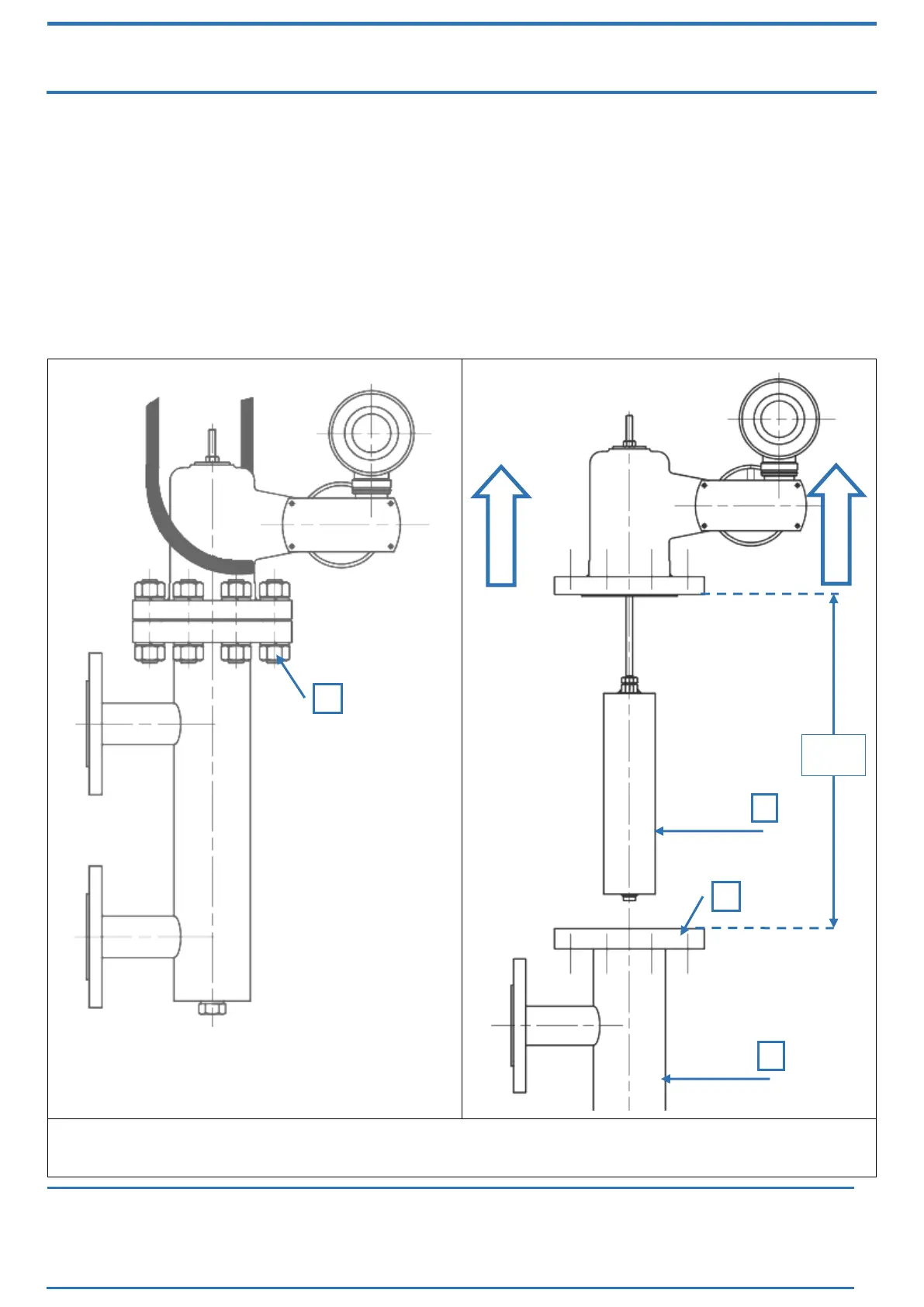

Figure 6: TOP part orientation – Step 1
