It is possible to purchase the Hart Server as an additional product; this is a software including all
the interrogation, configuration and diagnostics functions required by the Hart® specifications.

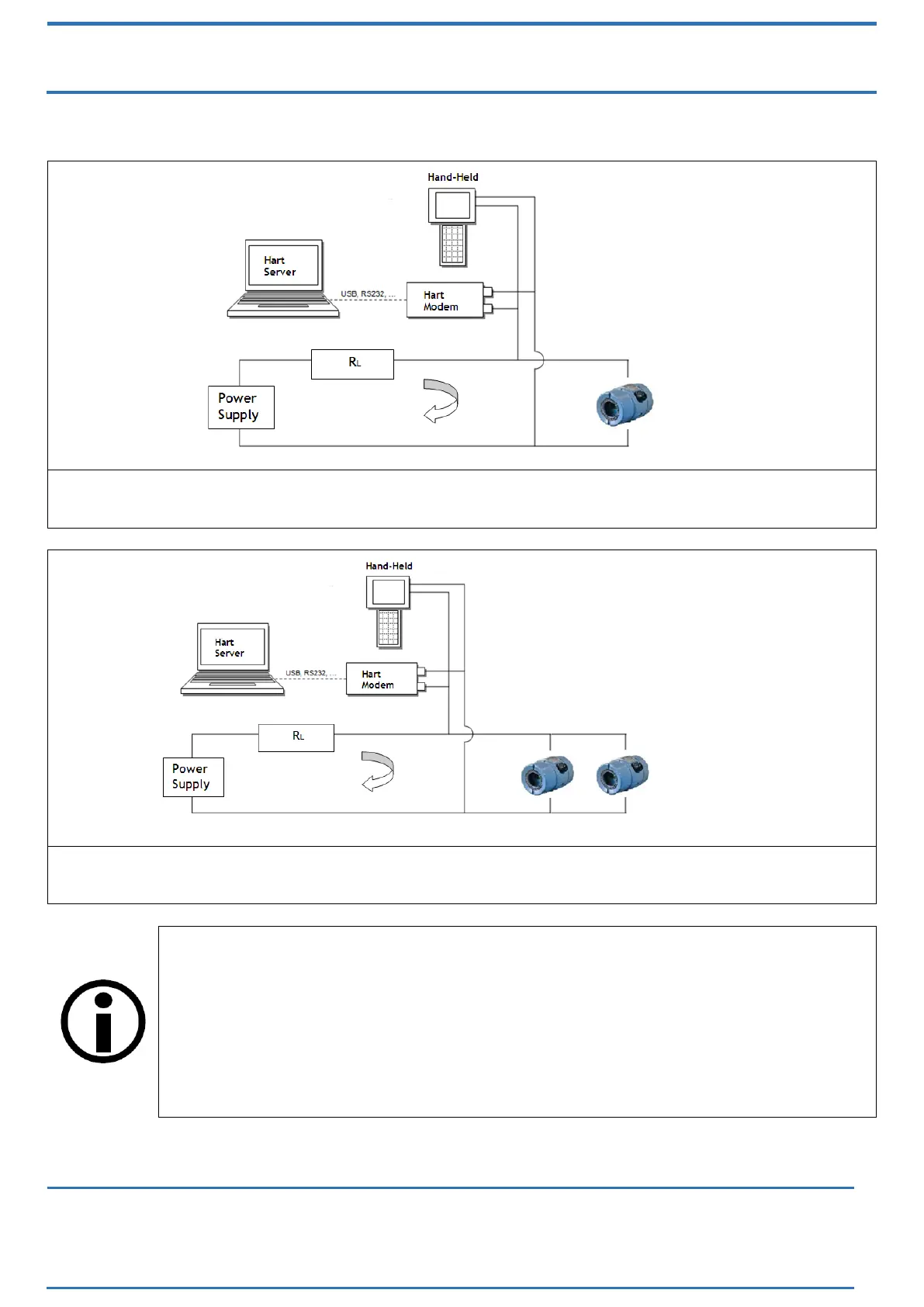

Figure 11: 4÷20 mA + Hart® modem connection
Figure 12: only Hart® multidrop connection
INFORMATION!
At maximum 15 transmitters could be connected in parallel on the same line.
Attention: when more transmitters are connected on the same line the current
standing on the resistor (250-ohm) is equal to
4mA x N of connected instruments.
This could cause a high electric potential. Be sure power supply is sufficient.
