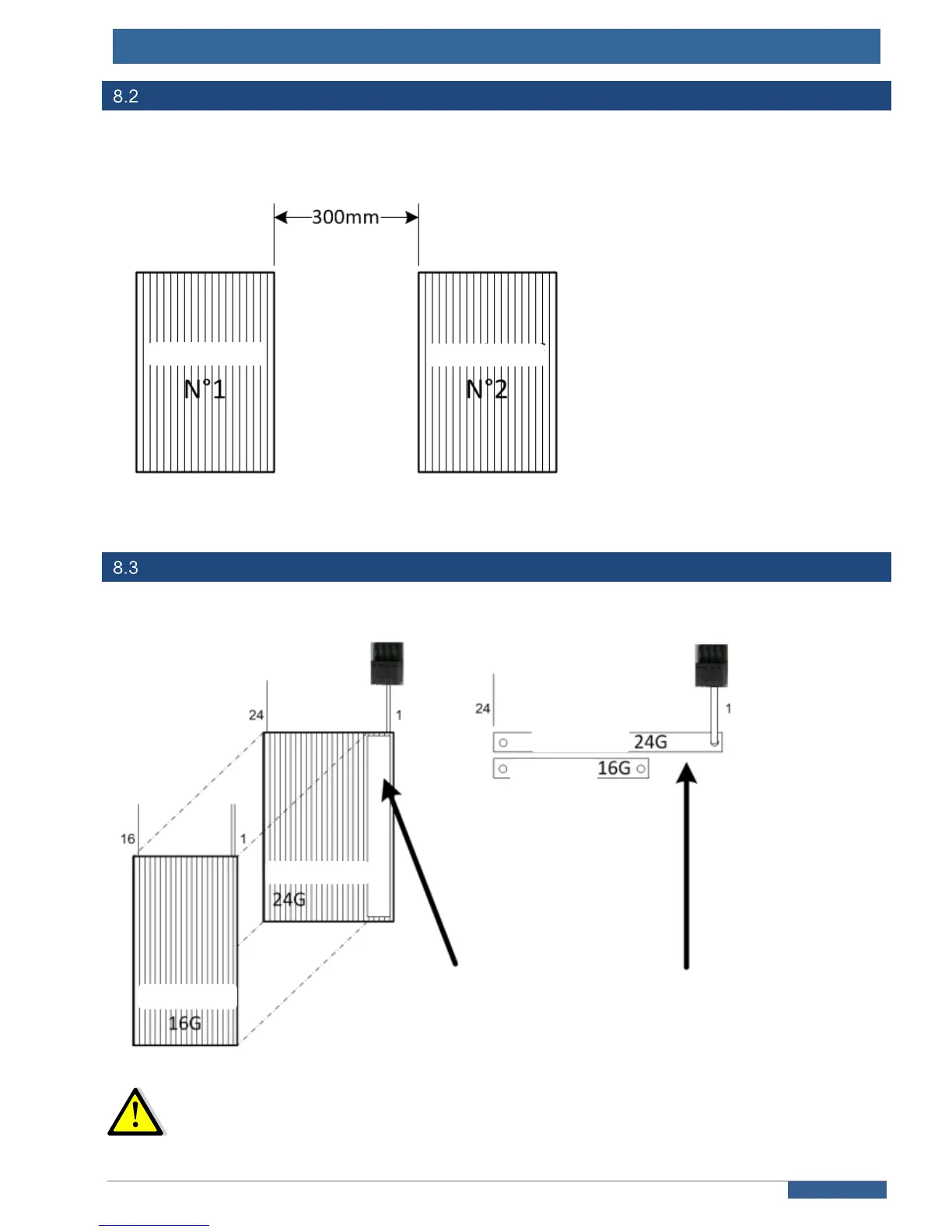

Multiple flat cables
When several flat cables are necessary, there must a separation distance of 300mm or more to ensure the correct
communication between the controller and the car’s roof board..
Special case with 2 flat cables : 24G + 16G
When it’s not possible to space out both flat cables, you may place one over the other as described below :
Every unused wires of the flat cable shaIl be grounded.
Place the 2 flat cables in such a way that wires 1 to 8 of
Flat Cable 24G aren’t aligned with flat cable 16G
