ASP 116 EVOLUTION – INSTALLATION MANUAL
Sprinte SAS. All rights reserved , including translations.
43
15 BUS LANDING BOARDS

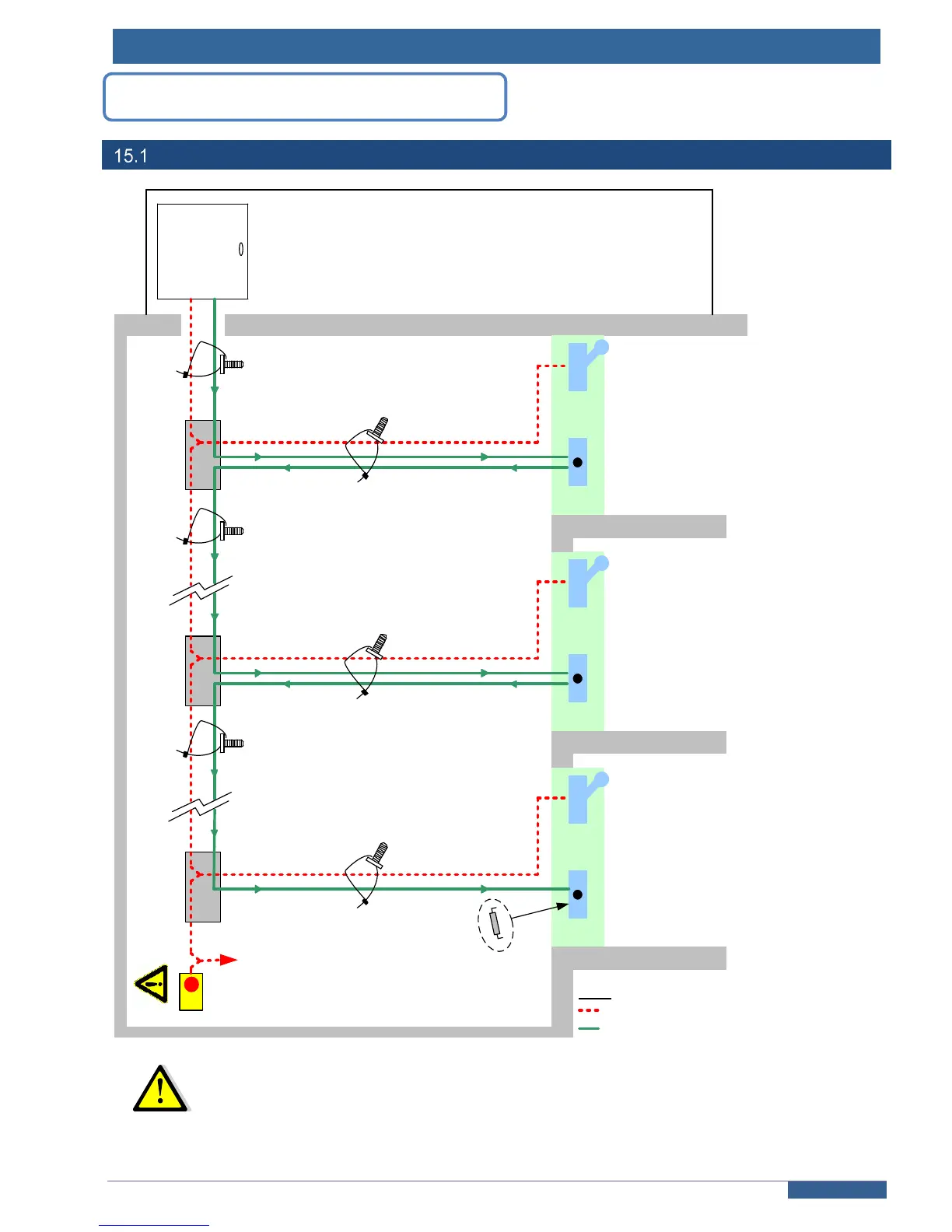

Mounting of the boards in the shaft (228SP or 137SP)
ASP116
EVOLUTION
MACHINE ROOM
LOCK
BUTTON
LOCK
BUTTON
LOCK
BUTTON
ELECTRICAL DUCTS MUST BE FIXED ON THE AXIS OF EVERY LANDING PANEL
Insert Termination plug at
the end of bus
STOP
Fix in the
shaft
PIT ACCESSORIES
Safety chain cable (rubber cable)
Bus cable (PVCcable)
CAPTION
Fix in the
shaft
Fix in the
shaft
Fix in the
shaft
Fix in the
shaft
Fix in the
shaft
To avoid electromagnetic interferences, use the dedicated pods to ground
every landing panel .
