10 FLAGS POSITIONNING
Magnetic reader

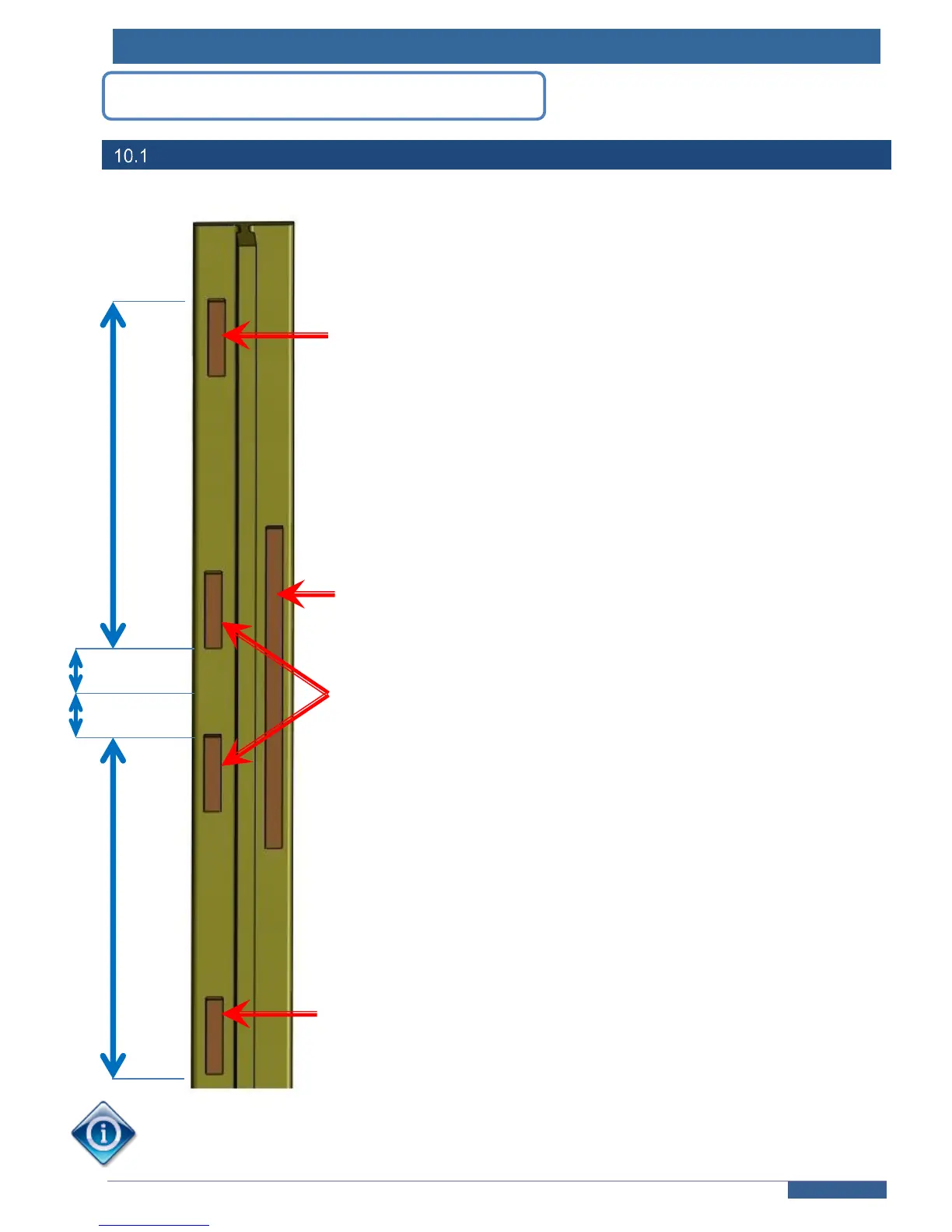

10.1.1 Magnets placement
Down slowdown magnet : 70 x 15 x 8 mm
DR
Door zone magnet : 300 x 15 x 8 mm
Stop magnets : 70 x 15 x 8 mm
DR
Up slowdown magnet : 70 x 15 x 8 mm
DR = Deceleration length previously computed in chap. 9
DA = Stop length previously computed in chap. 9
DA
DA
