ASP 116 EVOLUTION – INSTALLATION MANUAL
Sprinte SAS. All rights reserved , including translations.
22

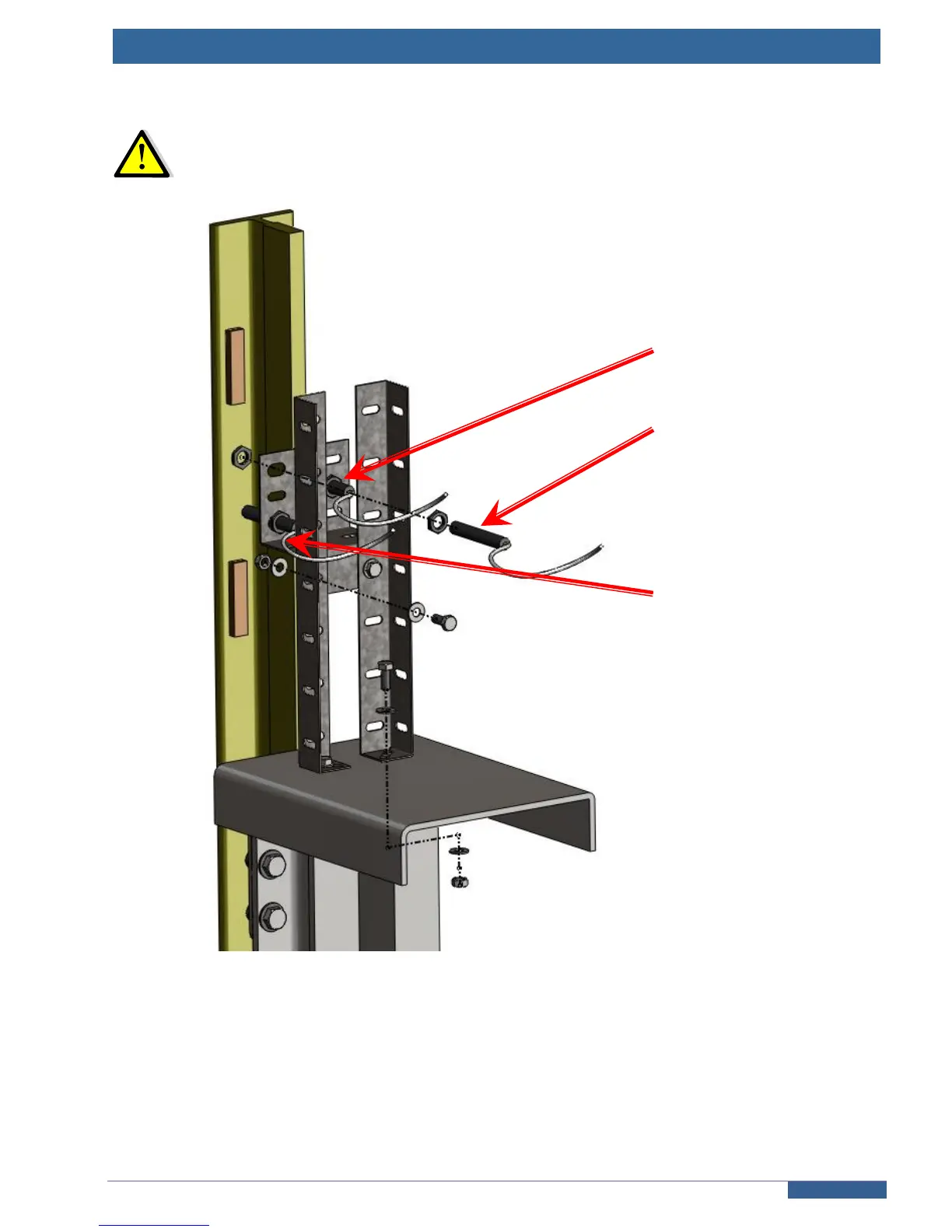

10.1.2 Mounting the magnetic fingers
Magnetic fingers shall be placed over a maximum distance of 15mm from the
magnets. (tolerance : +/- 10mm)
ILS C
ILS A
ILS B
Set 2 fingers one above the other, on guide rail’s side where shorts magnets are placed.
Set only 1 finger, on guide rail’s side where door zone magnets are placed.
