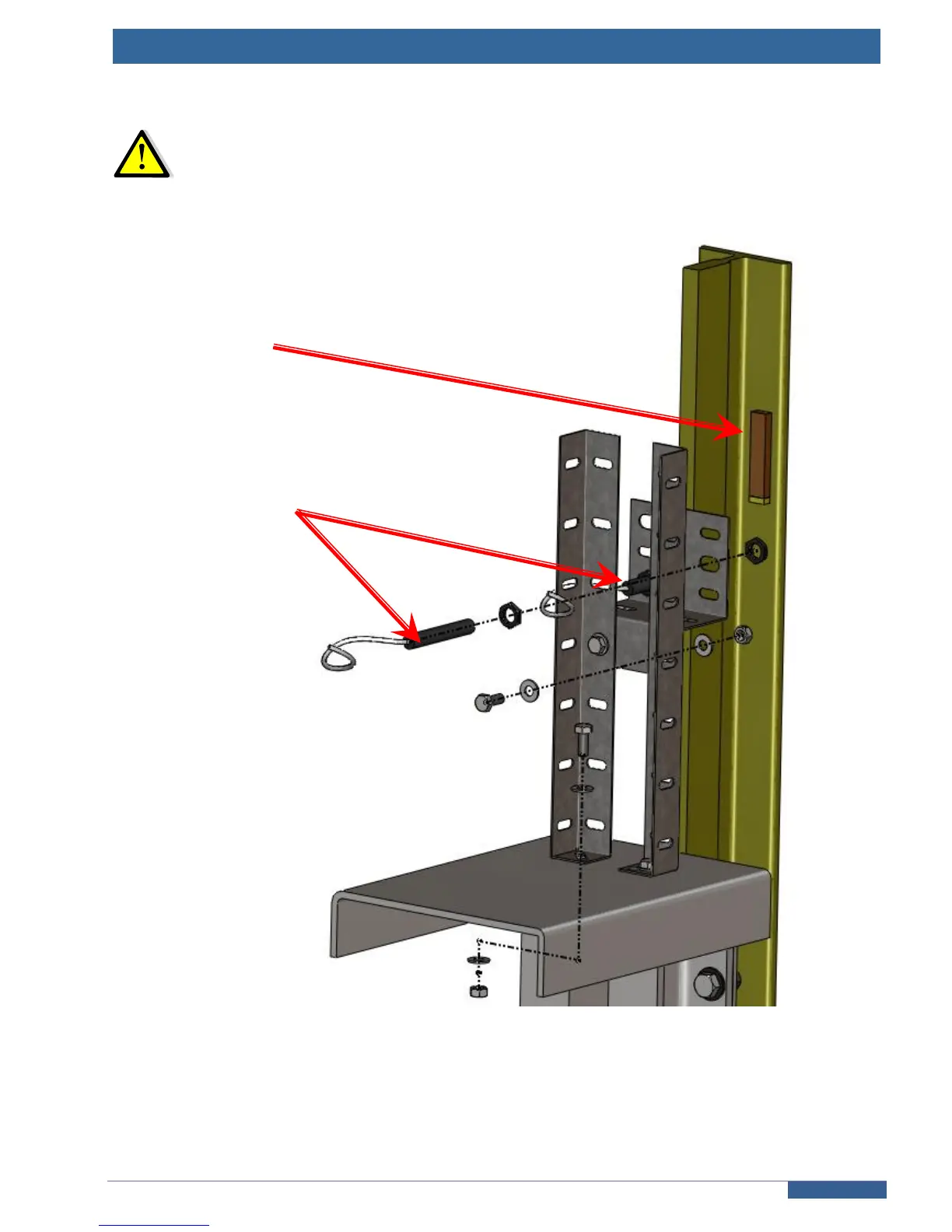

10.1.3 Mounting the two-states end slowdown fingers and magnets.
Magnetic fingers shall be placed over a maximum distance of 15mm from the
magnets. (tolerance : +/- 10mm)
Two-state magnet :
75 x 15 x 8mm
Magnetic fingers
or « ILS »
Set 1 finger on each side of the guide rail. One is for the up-end slowdown, the other for the
dwon-end slowdown. Place a two-state magnet in front of each finger.
