16 SAFETY RELAY WIRING
The movement of the car with the doors opened thanks to the safety relay, is
managed in conformance with chapter 5.6.7 of EN81-20 standard.
The safety relay is used to move the car with the door opened when levelling or re-levelling is
needed.
This movement with the door opened is possible only in the unlocking zone of each floor area; this
zone is materialized by a 30cm long magnet.

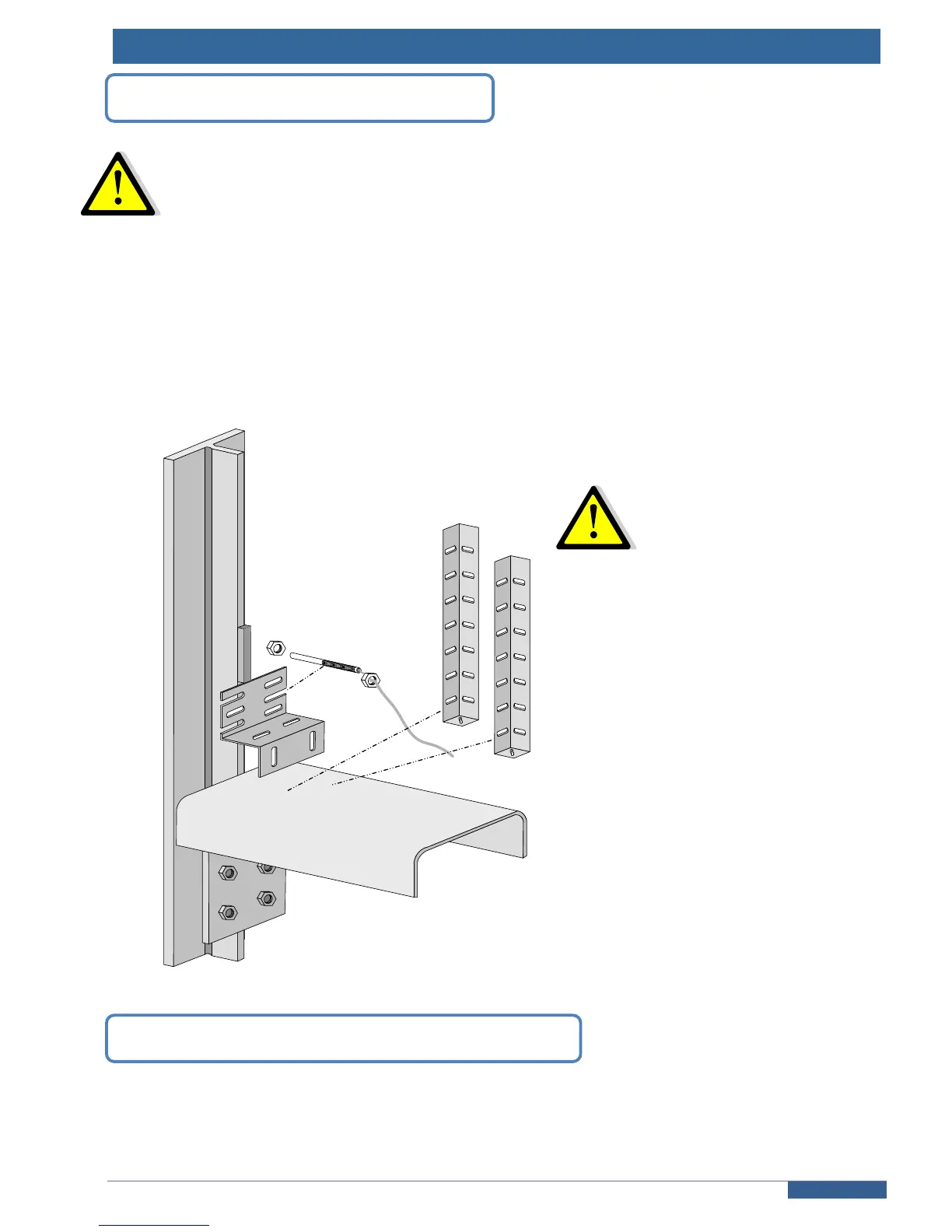

Fix the additional magnetic sensor on the roof of the car with the mounting kit provided
Face the sensor to the 30cm magnet stuck on the guide rail.
Plug the sensor on CB3 connector the 211SP board as shown on the diagram.
.
Be sure to place the magnets on the
guide rail, in such a way that it
matches the unlocking zone of every
floor
17 THE INSTALLATION IS OVER
Your lift is now ready to operate. If you still meet some troubles to start it up, refer to Annex 1 :
diagnosing common problems
