ASP 116 EVOLUTION – INSTALLATION MANUAL
Sprinte SAS. All rights reserved , including translations.
28

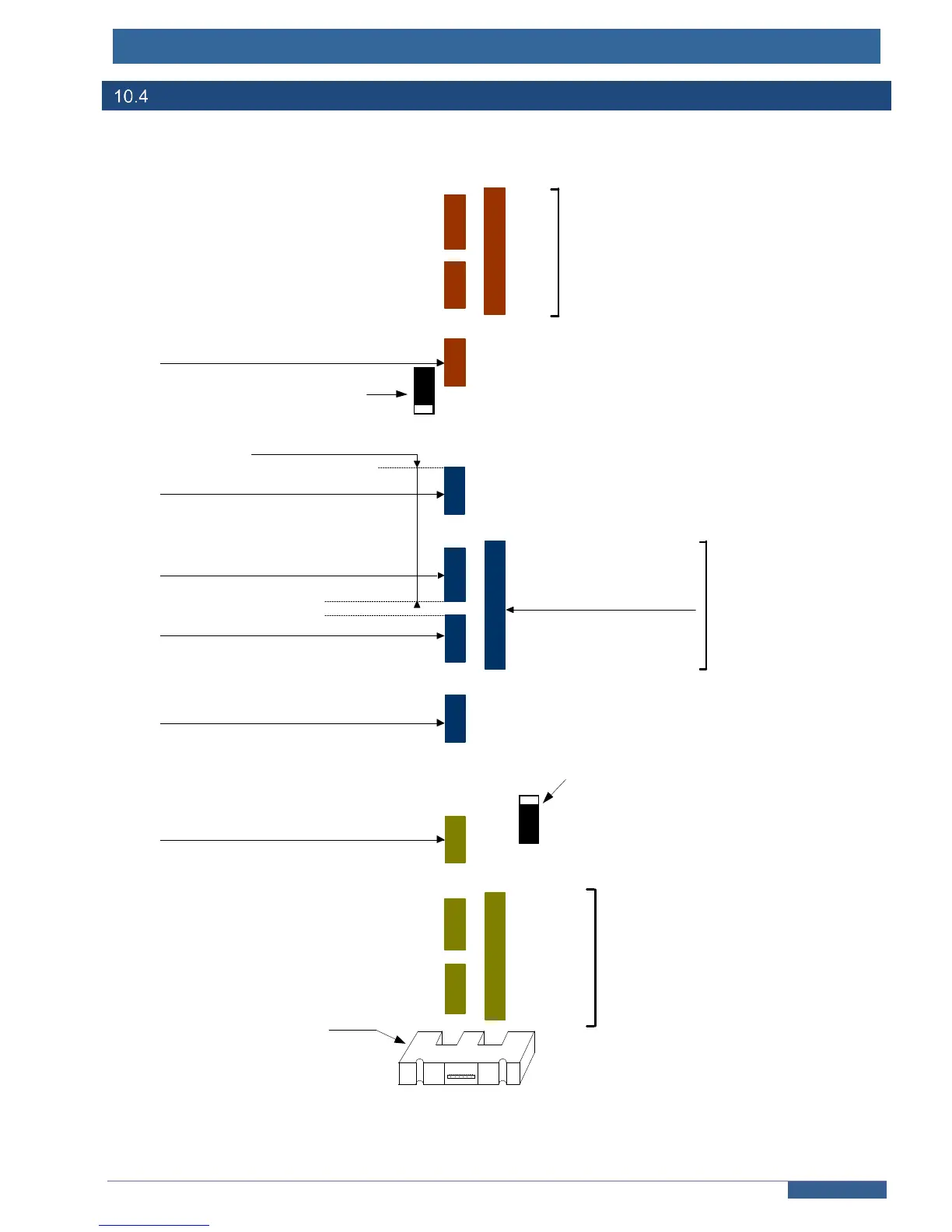

Typical flags placement in « normal » configuration
RB : Lower end slowdown,
two-states magnet
Lowest level slowdown flag
Highest level slowdown flag
Slowdown upward Level2.
Slowdown downward Level2.
Stop upward Level 2.
Stop downward Level 2.
ZA : Stop Zone
DR : Slowdown distance
HIGHEST LEVEL
INTERMEDIATE LEVEL
(Here : Level 2)
LOWEST LEVEL
Door Zone Level 2.
224SP
RH : Upper end slowdown,
two-states magnet
224SP READER (FACE UP)
OR
MAGNETICS SENSORS
RBRH
