ASP 116 EVOLUTION – INSTALLATION MANUAL
Sprinte SAS. All rights reserved , including translations.
49

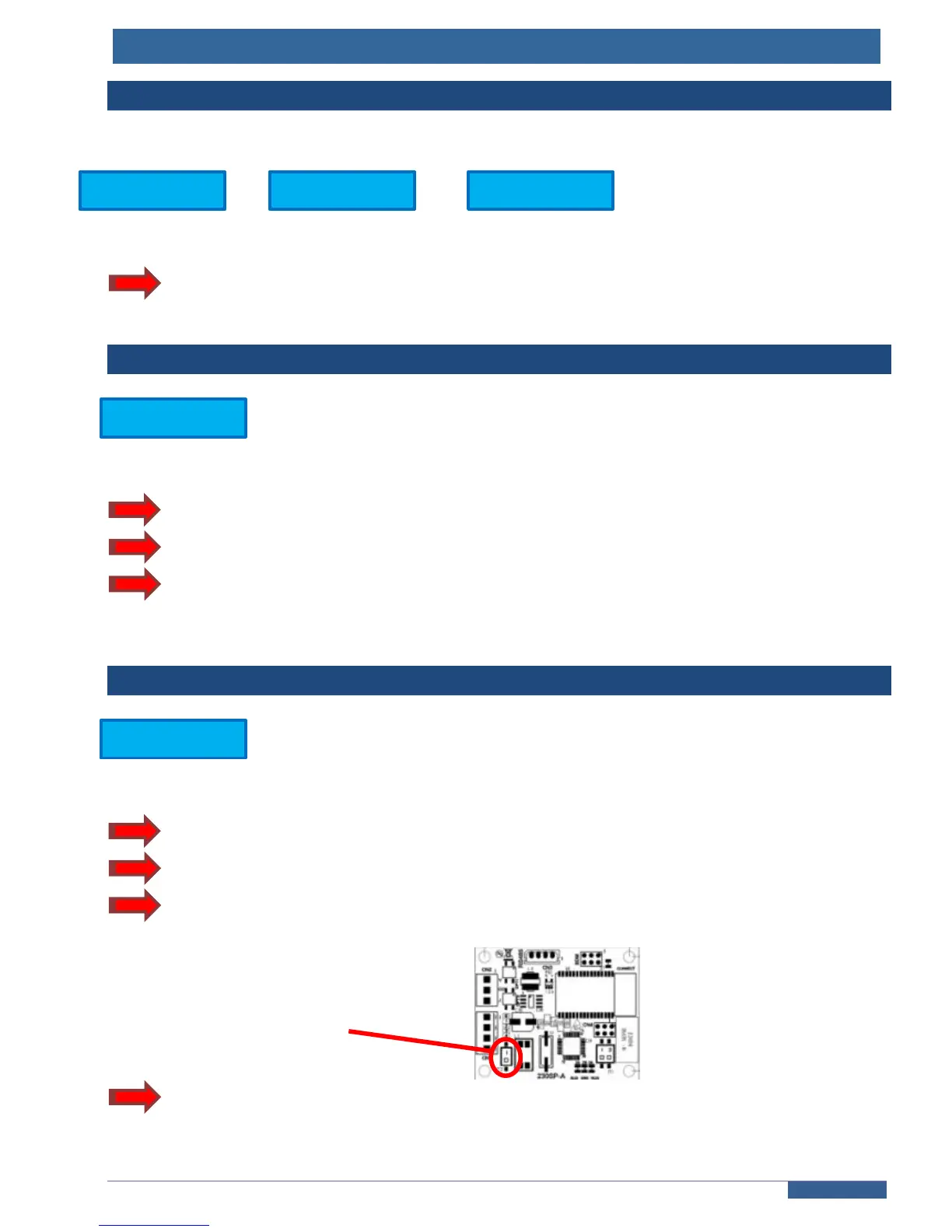

1. Board software version fault
For all of the following faults :
OU OU
The software version of the board is not up to date and cannot run with the version of main controller 216SP.
Start the boards reprogrammation process (see §15.8 )
2. 211SP Board communication fault
The controller’s board 216SP can’t communicate with the car roof board 211SP.
Try in this order, the following solutions
Check the wiring
Check the grounding from both sides of the flat cable.
Start the boards’ programming process (see §15.8 )
3. 230SP Board communication fault
The controller’s board 216SP can’t communicate with the car panel board 230SP.
Try in this order, the following solutions
Check the wiring
Check the grounding from the panel toward the roof of the car
Enable the termination resistance on the board :
Set this switch to « ON »
Start the boards’ programming process (see §15.8 )
CAR BUS N°XX
211SP VERSION
CAR BUS N°XX
230SP #YY VERS.
LANDING BUS N°XX
WRONG VERS. #XX
CAR BUS N°XX
COMM. BOARD 211
CAR BUS N°XX
COMM. 230SP #XX
