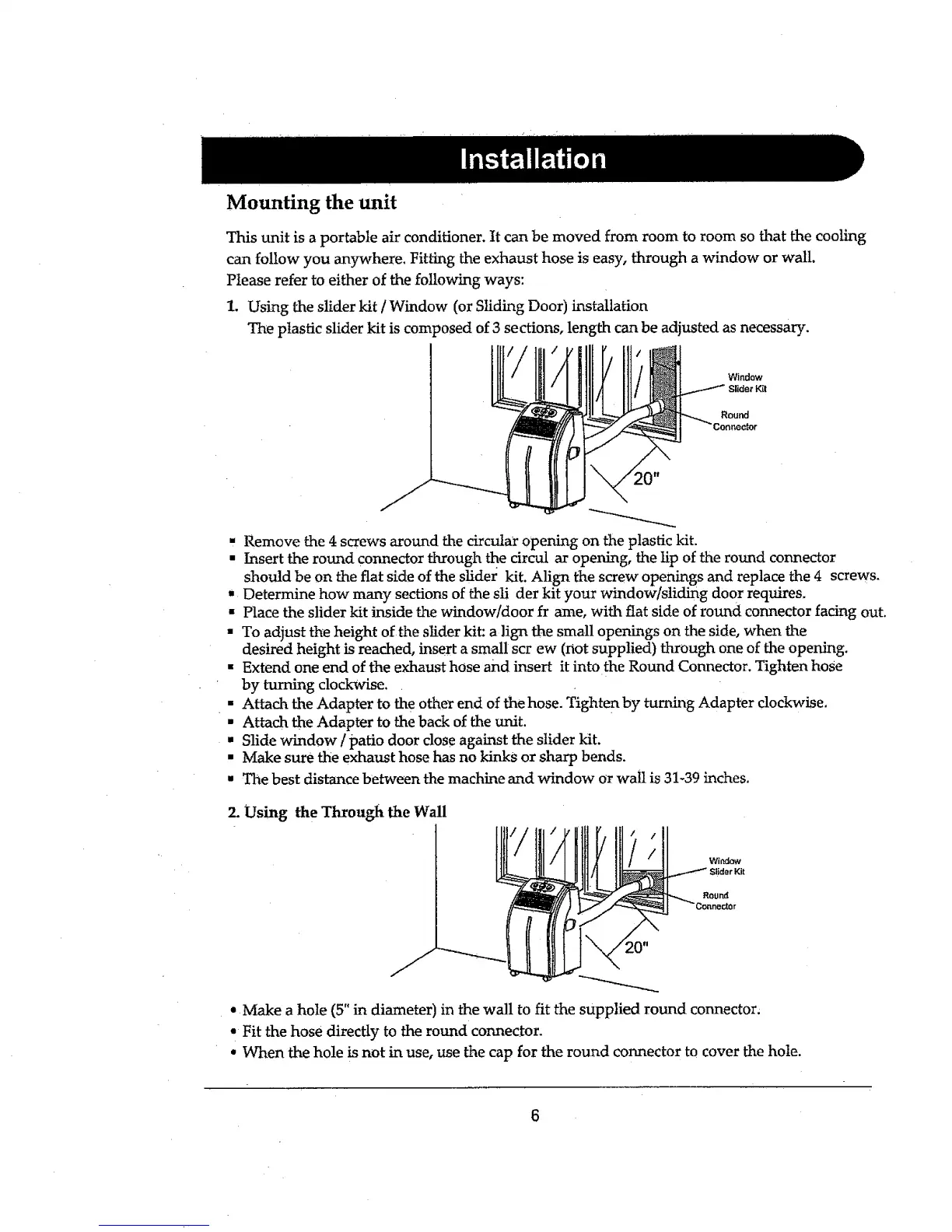

Mounting the unit
This unit is a portable air conditioner. It can be moved from room to room so that the cooling
can follow you anywhere. Fitting the exhaust hose is easy, through a window or wall.
Please refer to either of the following ways:
1. Using the slider kit / Window (or Sliding Door) installation
The plastic slider kit is composed of 3 sections, length can be adjusted as necessary.
Window
Round
= Remove the 4 screws around the circular opening on the plastic kit.
• Insert the round connector through the circular opening, the lip of the round connector
should be on the flat side of the slider kit. Align the screw openings and replace the 4 screws.
• Determine how many sections of the slider kit your window/sliding door requires,
• Place the slider kit inside the window/door frame, with flat side of round connector facing out.
• To adjust the height of the slider kit: a]ign the small openings on the side, when the
desired height is reached, insert a small screw (not supplied) through one of the opening.
• Extend one end of the exhaust hose and insert it into the Round Connector. Tighten hose
by tuming clockwise.
• Attach the Adapter to the other end of the hose. Tighten by turning Adapter clockwise.
• Attach the Adapter to the back of the unit.
= Slide window / patio door close against the slider kit.
• Make sure tile exhaust hose has no kinks or sharp bends.
• The best distance between the machine and window or wall is 31-39 inches.
2. Using the Through the Wall
Window
• Make a hole (5" in diameter) in the wall to fit the supplied round connector.
• Fit the hose directly to the round conneaor.
• When the hole is not in use, use the cap for the round connector to cover the hole.
