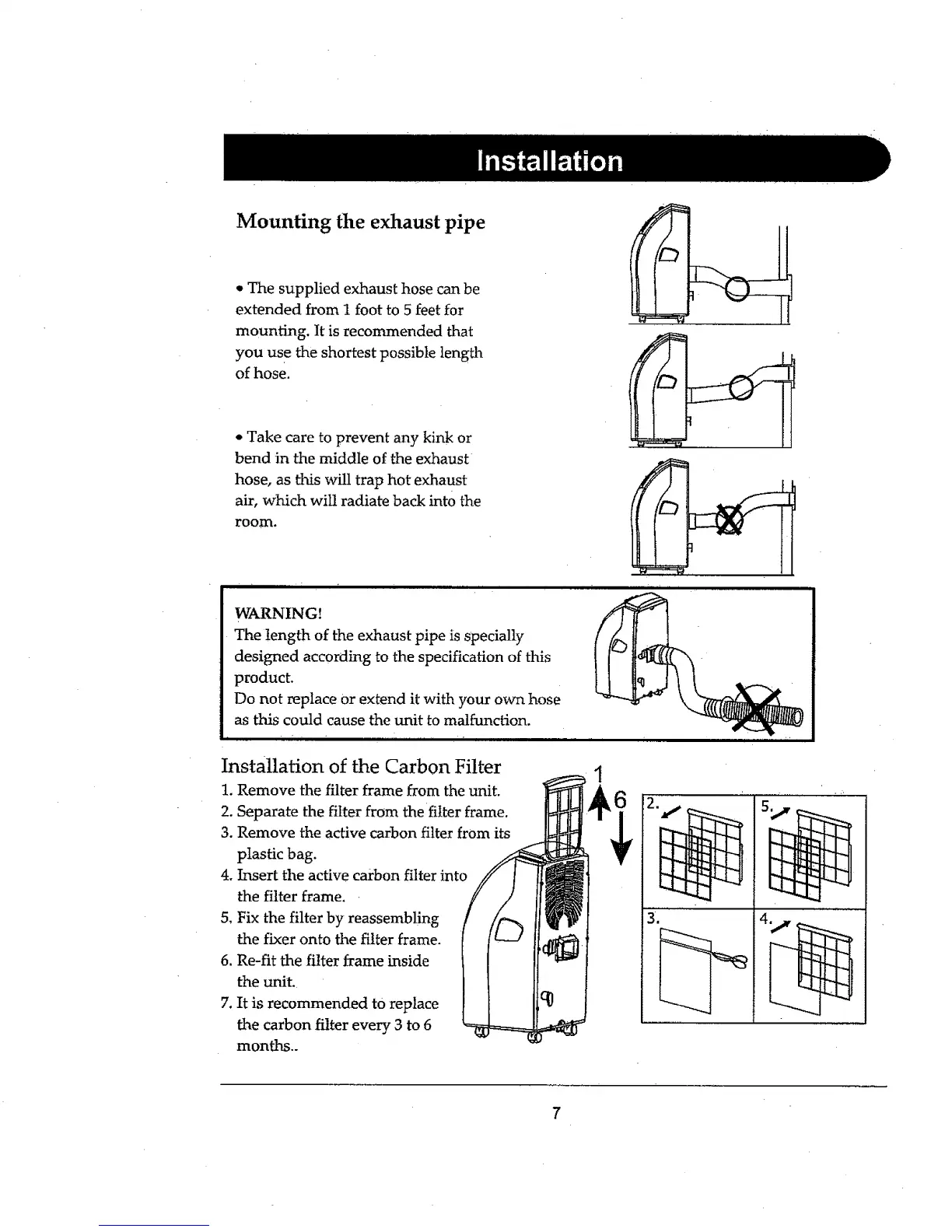

Mounting the exhaust pipe
• The supplied exhaust hose can be
extended from I foot to 5 feet for
mounting, It is recommended that
you use the shortest possible length
of hose.
* Take care to prevent any kink or
bend in the middle of the exhaust
hose, as this will trap hot exhaust
air, which will radiate back into the
room.
" ,,H,,II""I ¸ II I
WARNING!
The tength of the exhaust pipe is specially
designed according to the specification of this
product.
Do not replace Or extend it with your own hose
as this could cause the unit to malfunction.
Installation of the Carbon Filter
1. Remove the filter frame from the unit.
2. Separate the filter from the filter frame,
3. Remove the active carbon filter from its
plastic bag.
4. Insert the active carbon filter into
1
"f"-[
the filter frame,
5, Fix the filter by reassembling
the fixer onto the filter frame,
6. Re-fit the filter frame inside
the unit.
7, It is recommended to replace
the carbon filter every 3 to 6
months..
-..,,.
7
