Covering Disks –

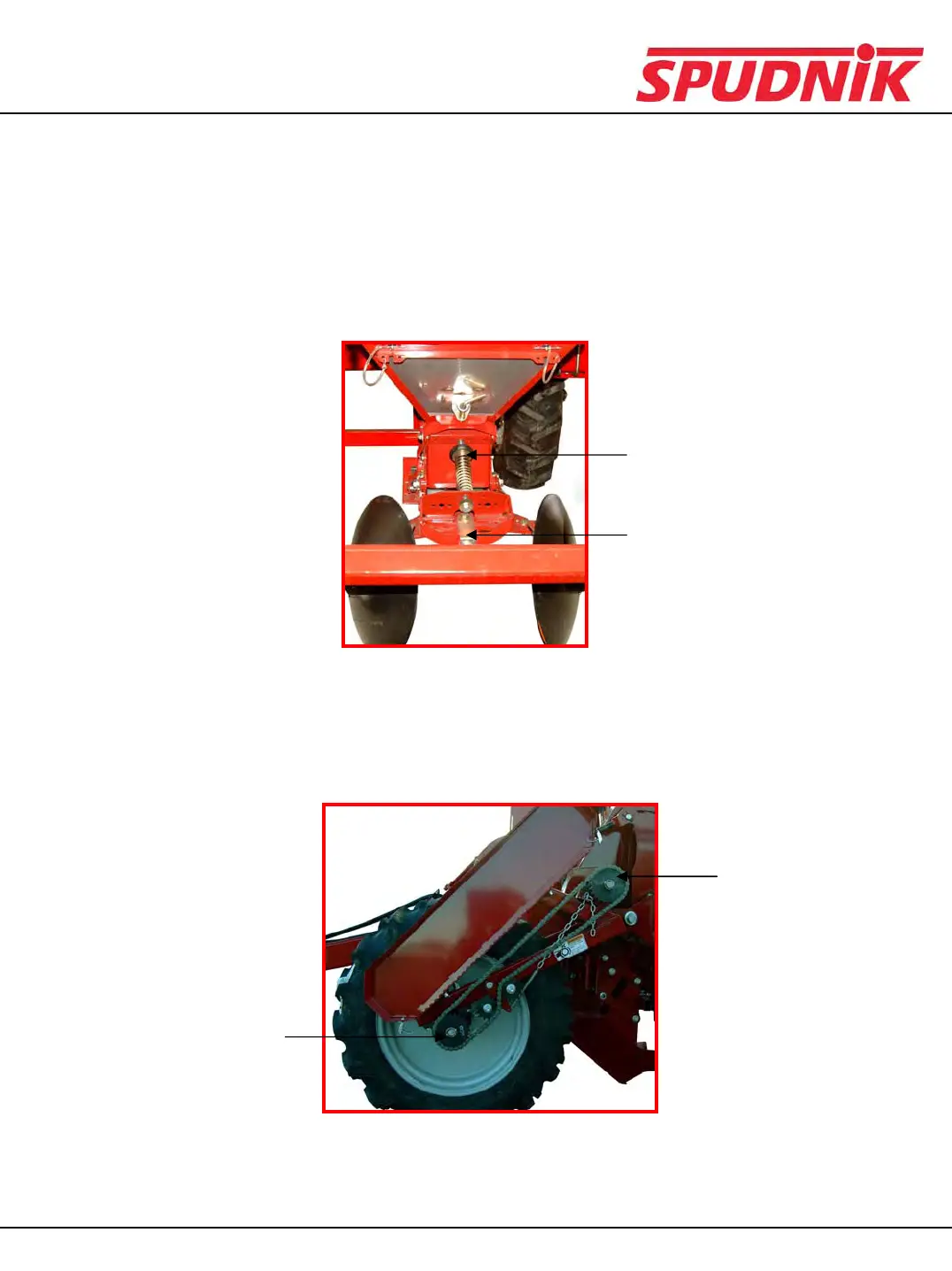

The down pressure on the discs is controlled by tightening the spring with the adjustment knob (10). For a wider
gill remove the bolts and slide each disc assembly out from the center. The angel of the discs can also be
changed by moving the disc assembly to another hole combination. A fine adjustment can be made by adjusting
the rear adjustment bolt (11). Tighten all bolts after final adjustments are made.
Configuration and Functions of the Planter
Row Unit Set-Up
10
11
Seed Spacing –
Seed spacing is set on a mechanical drive planter by changing the ratio of the front (12) and rear (13) sprockets
on the front drive of the planters.
This is set on a hydraulic drive planter by changing the spacing in the CP600.
