Operators manual MODEL 80XX Planter
page 25 of 173
Parts Breakdown

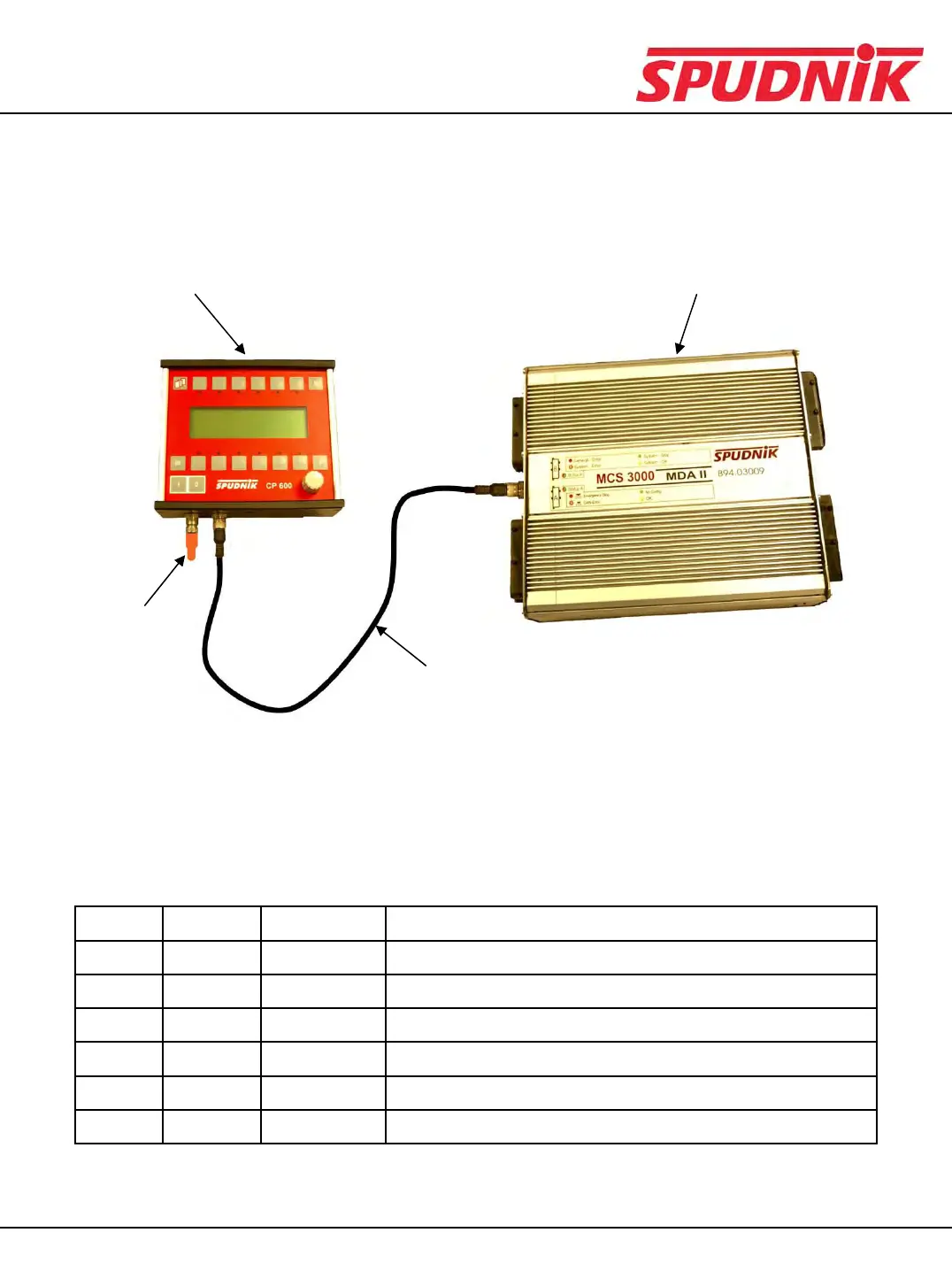

The following diagram shows how the CP600 Control Box is connected to the MDA
Processor.
Item # Quantity Part # Description
1 1 450162 PLATER DISPLAY CP600
2 1 B94.01736 BUS-END PLUG M12x1,8p [x]
3 1 B94.01683 CAN BUS CABLE 80" (2M) M12x1 8-WIRE
or 1 B94.01685 CAN BUS CABLE 196"(5M) M12x1 8-WIRE
or 1 B94.01759 CAN BUS CABLE 315"(8M) M12x1 8-WIRE
4 1 B94.03009 MDA-MAIN ELECTRONIC
CP600 Control Box MDA Processor
CP600 CONTROL BOX
1
2
3
4
To Next Page
