Operators manual MODEL 80XX Planter
page 36 of 173

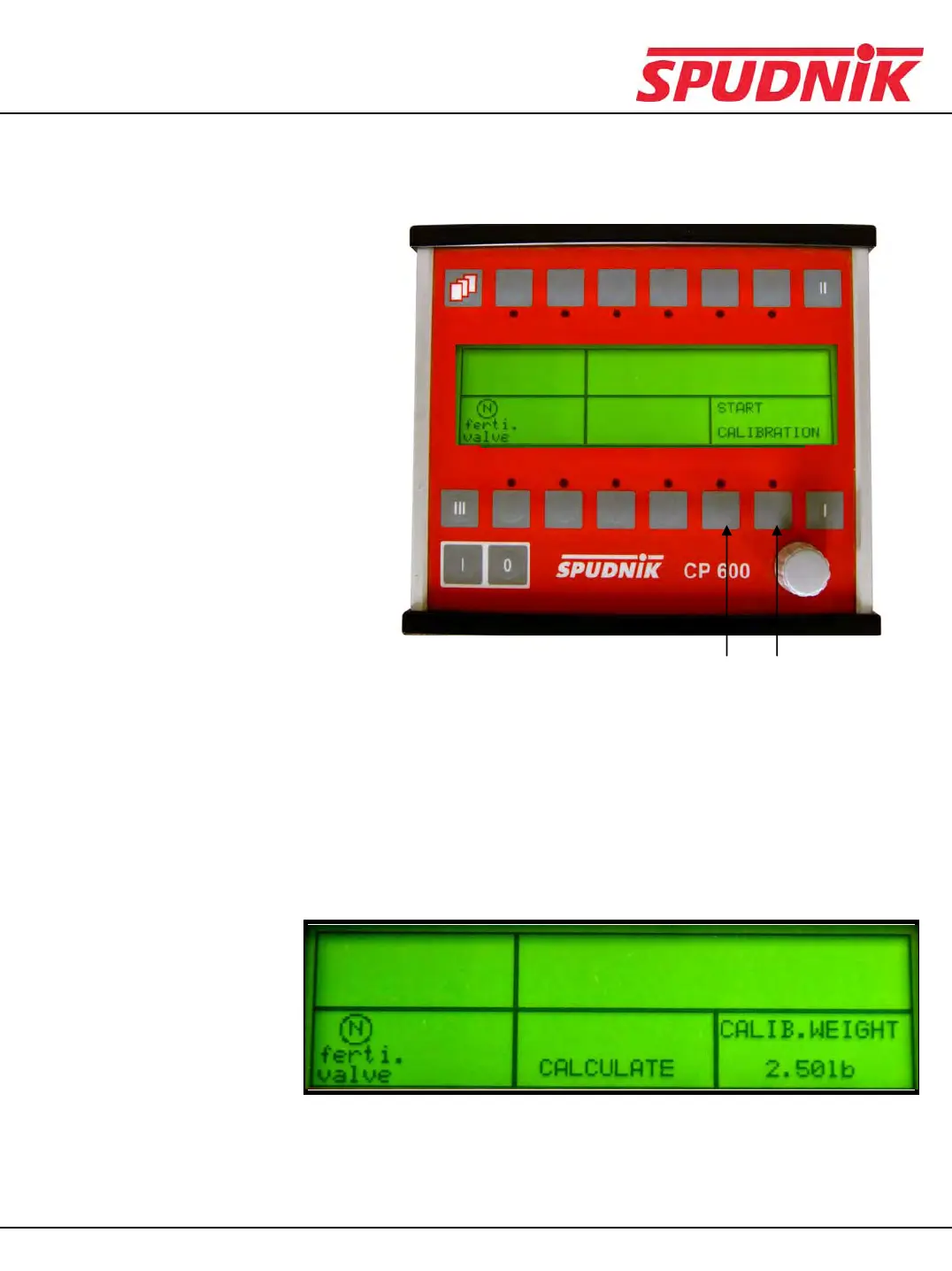

Fertilizer Valve Calibration
AB
7) Select both A and B
buttons to start
calibration.
8) This screen is
calculating the
density
Note: The Density needs to be manually entered from the
weight measurement taken. There is a minimum 2.40 lb and
can not be set lower
Note: Place bucket under one row unit to measure the weight of the
fertilizer. Then multiply by the number of row units.
i.e. If you have a four row planter and measure the fertilizer weight brought
out through the calibration from one row unit, you need to multiply the weight
by four.
CP600 CONTROL BOX
