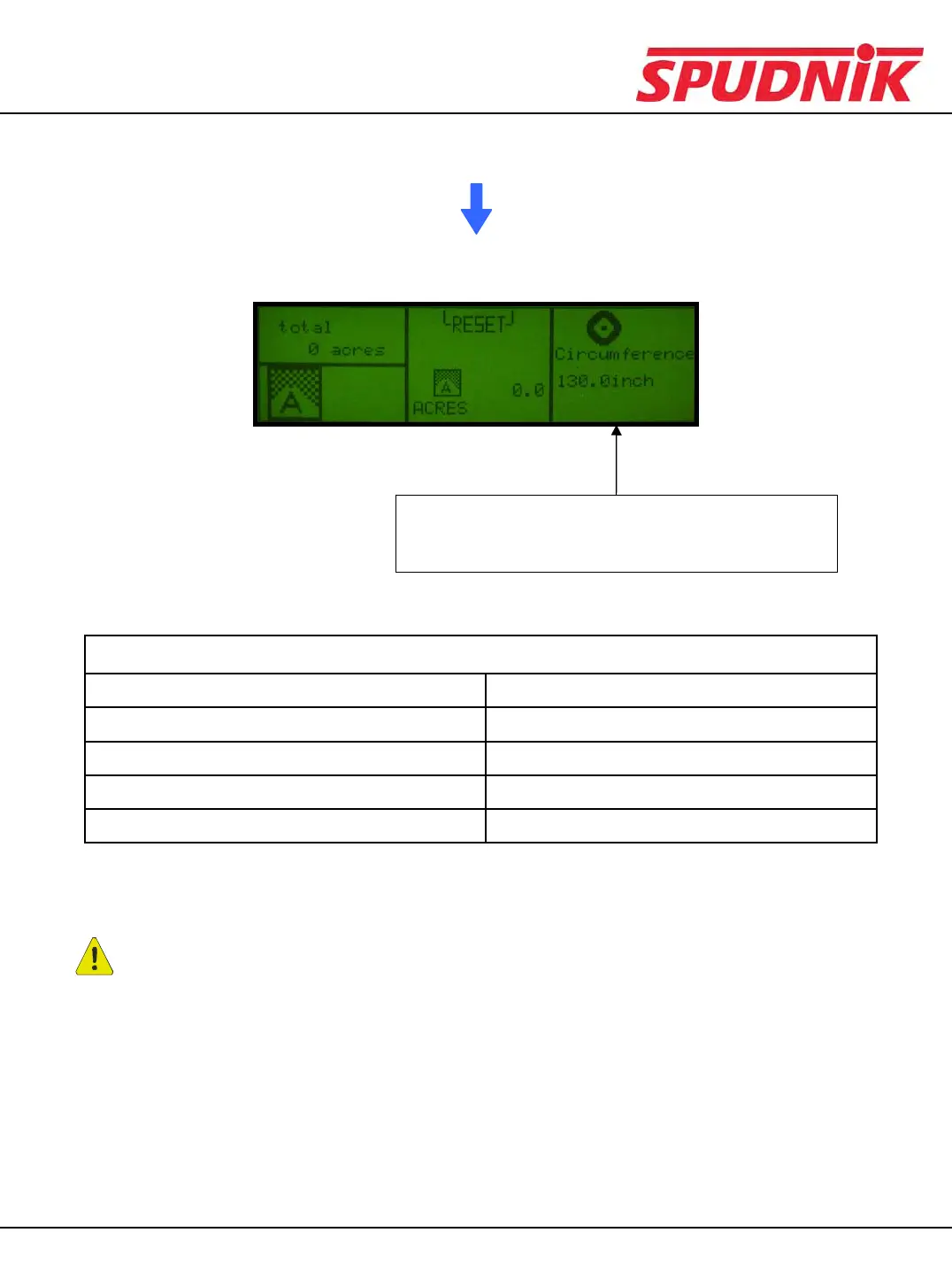

Acre Meter
This is the circumference of the tire that the sensor is
on. The sensor could be placed on either the front or
the rear wheel of the machine.
Factory Circumference Settings
Tire Nomenclatures Circumference
Front Tire 11.25x24
Rear Tire 11.5x24
Rear Tire 12.5x16
Rear Tire 14.9x24
Note: The tire circumference listed above is figured only theoretically. The practical
measurement must be determined by the customer (operator). This can be done by,
1. Loading the hopper only half full
2. Place a mark or a marker on the tire with the sensor.
3. Plant ten revolutions of the tire.
4. Measure start to stop distance.
5. Dividing the distance by ten will give an accurate circumference value for the CP600
CP600 CONTROL BOX
