52
Conical plug
ISO 7/1 - R 1/2
Conical pipe end
ISO 7/1 - R 1/2
Plug with collar
ISO 228/1 - G 1/2
Conical pipe end
ISO 7/1 - R 1/2
A.0500.451 – IM-TGGP/07.02 EN (03/2016)

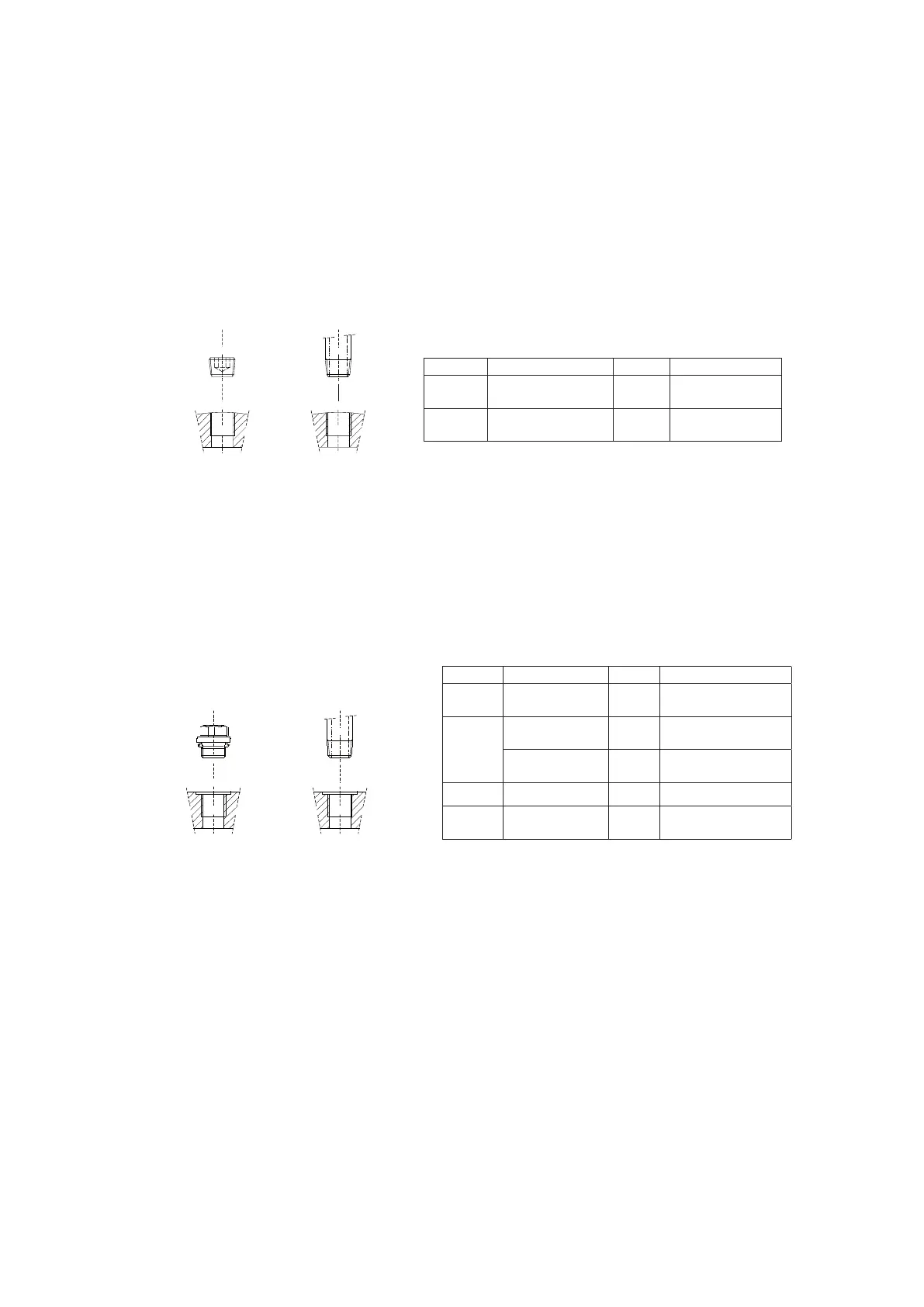

3.22.7 Designation of threaded connections.
To make clear what sealing type of threaded connection is provided we denominate them according to
standards ISO 7/1 and ISO 228/1 as follows.
3.22.7.1 Threaded connection Rp (example Rp 1/2)
If no flattened sealing face is provided we call the connection Rp accordingly ISO 7/1. This
connection has to be sealed in the thread. The plugs or pipe connections must be provided with
conical thread according to ISO 7/1 external thread (example ISO 7/1 – R1/2).
3.22.7.2 Threaded connection G (example G 1/2)
If the threaded connection is provided of a flattened sealing face we call it G according ISO 228/1.
This connection can be sealed by a gasket. The plugs or pipe connections must be provided with a
sealing collar and cylindrical external thread according to ISO 228/1 (Example ISO 228/1 - G1/2).
Plugs or pipe connections provided with conical thread according to ISO 7/1 external thread
(example ISO 7/1 – R1/2) can also be used.
ISO 7/1 Type Symbol Example
Internal
thread
Cynlindrical (parallel) Rp ISO 7/1 – Rp 1/2
External
thread
Always conical
(tappered)
R ISO 7/1 – R 1/2
ISO 228/1 Clearance class Symbol Example
Internal
thread
Only one class G ISO 228/1 – G 1/2
External
thread
Class A
(standard)
G ISO 228/1 – G 1/2
Class B
(extra clearance)
G...B ISO 228/1 – G 1/2 B
ISO 7/1 Type Symbol Example
External
thread
Always conical
(tappered)
R ISO 7/1 – R 1/2
