SPX FLOW TG GP58-80 - Jackets - Electrical Heating; Jackets TG GP2-25 to TG GP6-40

2xBl
dhdg
dl
dl
2xBf
zh
dk
Bg
zg
ma
2xBl
dhdg
dl
dl
2xBf
zh
dk
Bg
zg
ma
OS
SO
TG GP2-25 TG GP3-32 TG GP6-40
Bf G 1/2 G 3/4
Bg G 1/2 G 3/4
Bl G 1/2 G 3/4
dg 59 75
dh 42 50
dk 80 100
dl 45 56
ma 50 60
zg 61 76
zh 52 70
72
A.0500.451 – IM-TGGP/07.02 EN (03/2016)

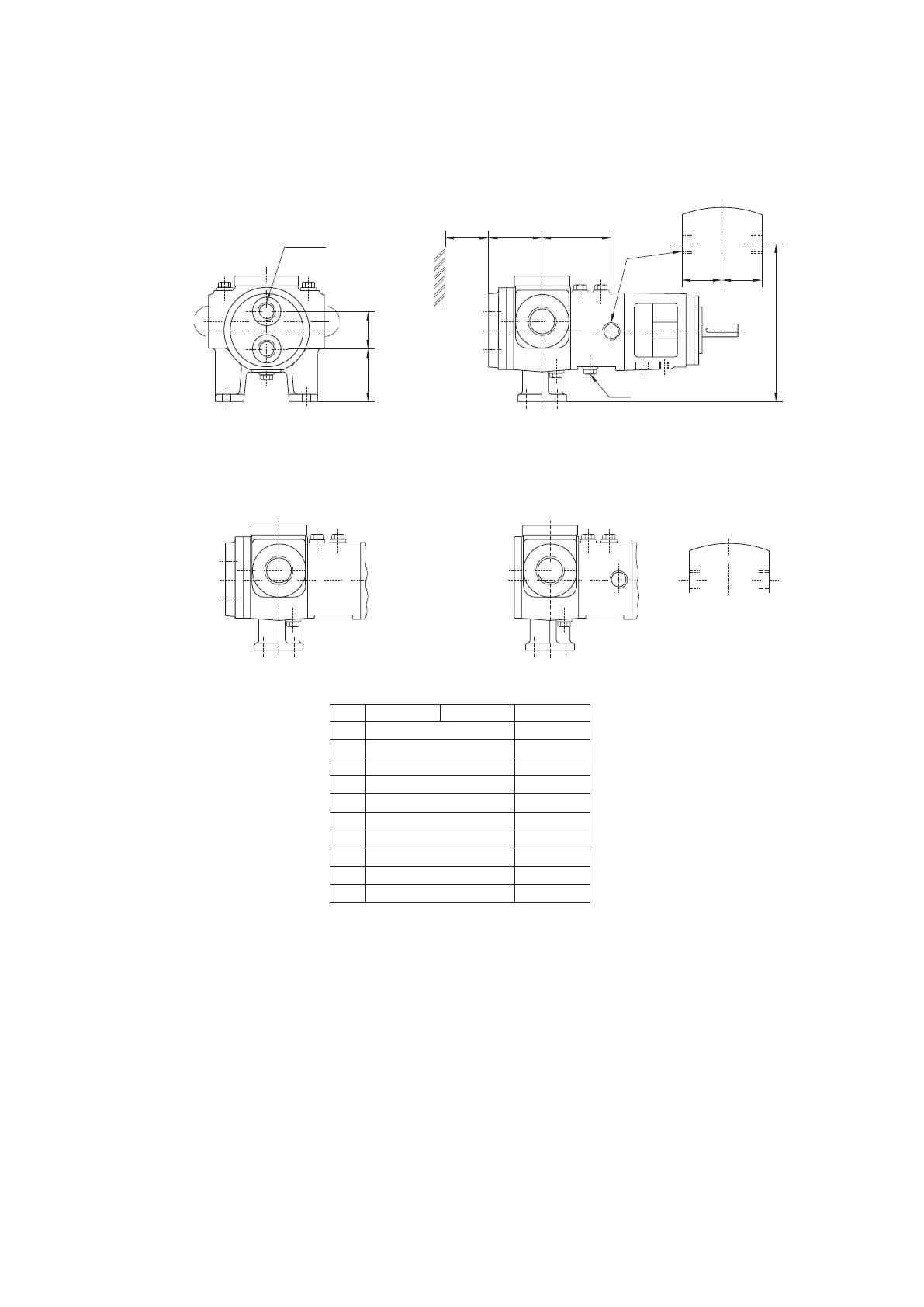

6.3 Jackets – Electrical heating
6.3.1 Jackets TG GP2-25 to TG GP6-40
Jackets (SS) with thread connections on pump cover and around shaft seal
Single jacket (OS) with thread
connection around shaft seal
Single jacket (SO) with thread
connection on pump cover
